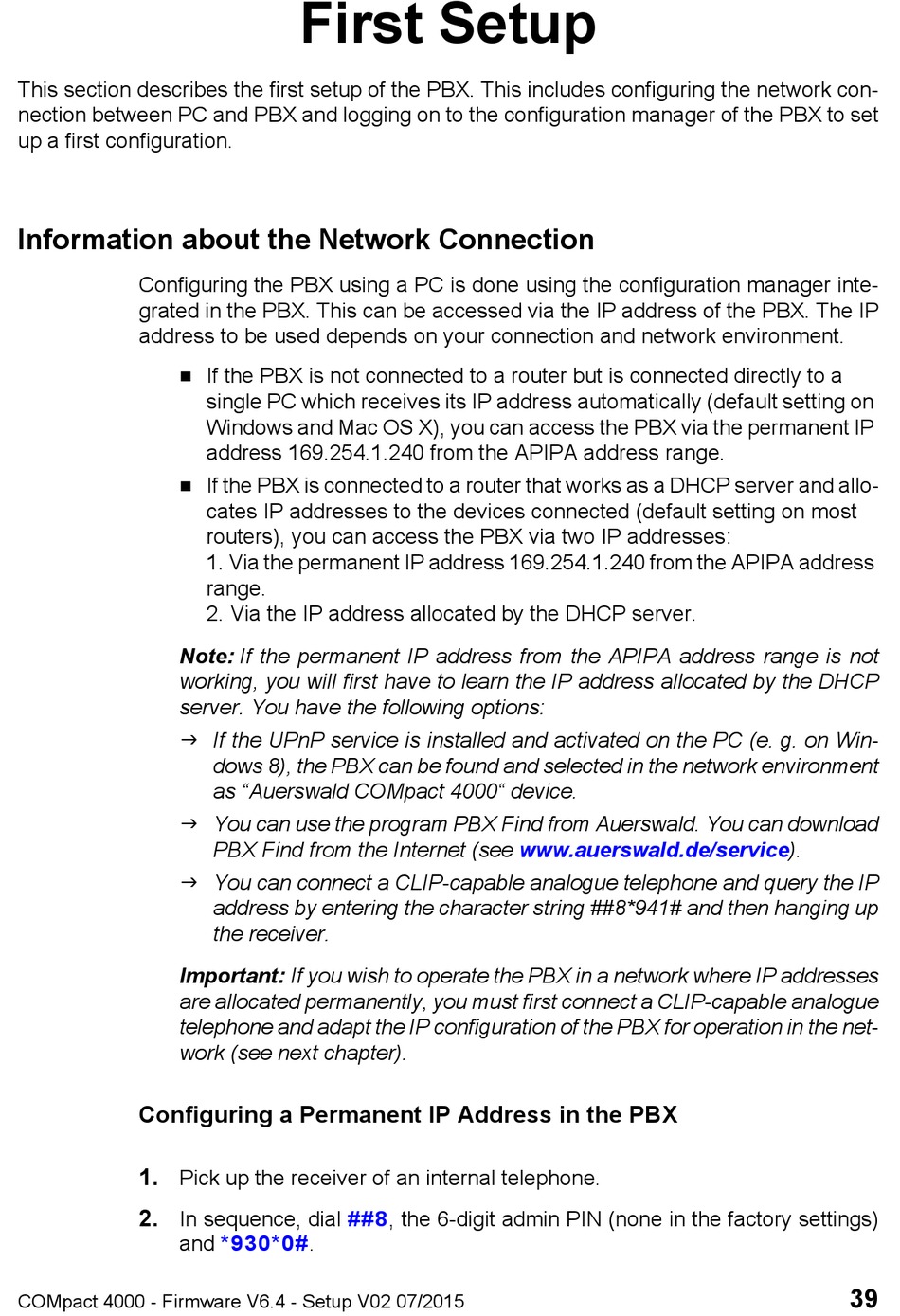

This section describes the first setup of the PBX. This includes configuring the network con-
nection between PC and PBX and logging on to the configuration manager of the PBX to set
up a first configuration.

Information about the Network Connection

Configuring the PBX using a PC is done using the configuration manager inte-
grated in the PBX. This can be accessed via the IP address of the PBX. The IP
address to be used depends on your connection and network environment.


Note: If the permanent IP address from the APIPA address range is not
working, you will first have to learn the IP address allocated by the DHCP
server. You have the following options:
 If the UPnP service is installed and activated on the PC (e. g. on Win-
 You can use the program PBX Find from Auerswald. You can download
 You can connect a CLIP-capable analogue telephone and query the IP
Important: If you wish to operate the PBX in a network where IP addresses
are allocated permanently, you must first connect a CLIP-capable analogue
telephone and adapt the IP configuration of the PBX for operation in the net-
work (see next chapter).

Configuring a Permanent IP Address in the PBX

1.
Pick up the receiver of an internal telephone.
2.
In sequence, dial ##8, the 6-digit admin PIN (none in the factory settings)
and *930*0#.
COMpact 4000 - Firmware V6.4 - Setup V02 07/2015

First Setup

If the PBX is not connected to a router but is connected directly to a
single PC which receives its IP address automatically (default setting on
Windows and Mac OS X), you can access the PBX via the permanent IP
address 169.254.1.240 from the APIPA address range.
If the PBX is connected to a router that works as a DHCP server and allo-
cates IP addresses to the devices connected (default setting on most
routers), you can access the PBX via two IP addresses:
1. Via the permanent IP address 169.254.1.240 from the APIPA address
range.
2. Via the IP address allocated by the DHCP server.
dows 8), the PBX can be found and selected in the network environment
as "Auerswald COMpact 4000" device.
PBX Find from the Internet (see www.auerswald.de/service).
address by entering the character string ##8*941# and then hanging up
the receiver.
