Start-up

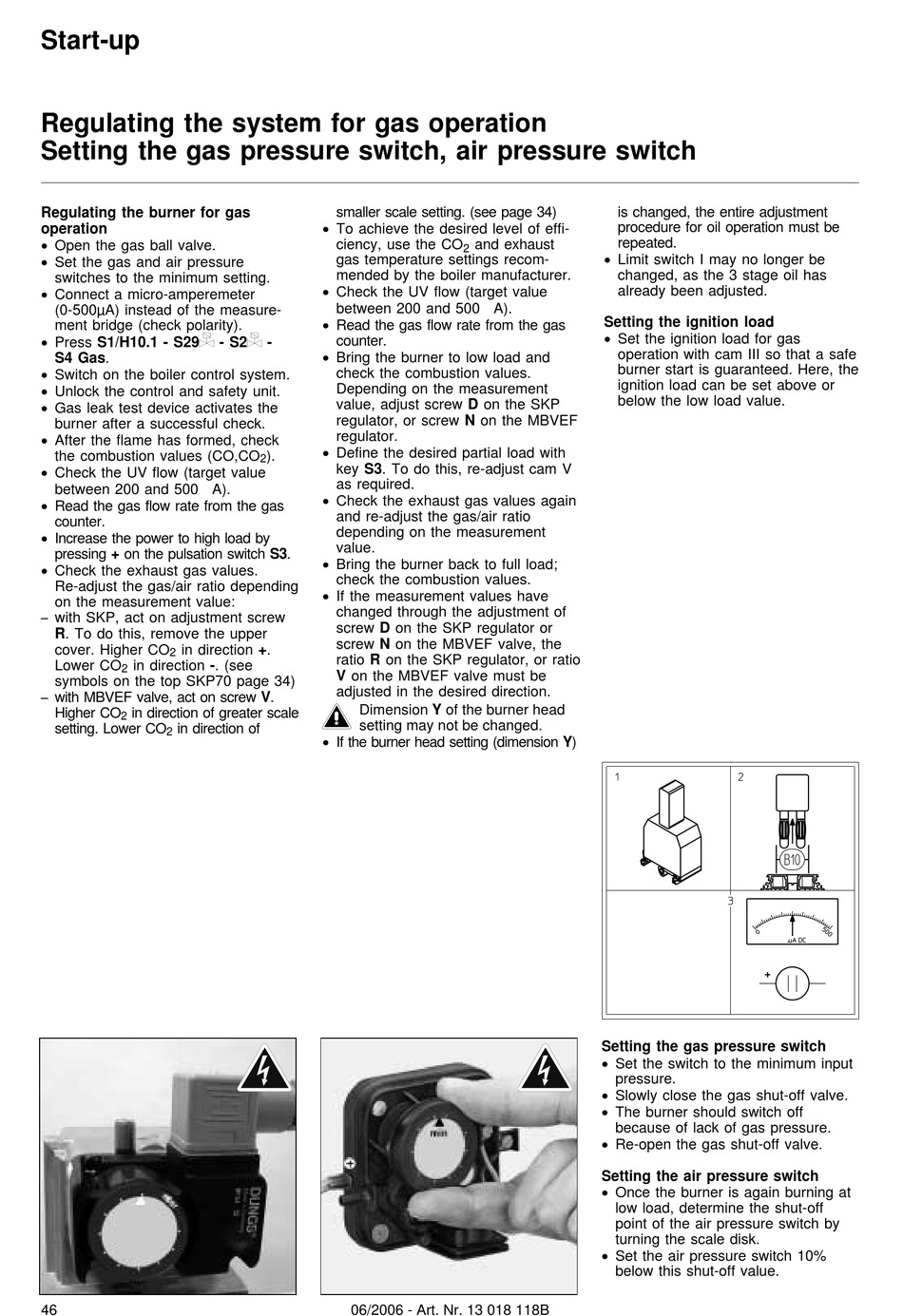

Regulating the system for gas operation

Setting the gas pressure switch, air pressure switch

Regulating the burner for gas
operation
· Open the gas ball valve.
· Set the gas and air pressure
switches to the minimum setting.
· Connect a micro-amperemeter
(0-500µA) instead of the measure-
ment bridge (check polarity).
· Press S1/H10.1 - S29J - S2K -
S4 Gas.
· Switch on the boiler control system.
· Unlock the control and safety unit.
· Gas leak test device activates the
burner after a successful check.
· After the flame has formed, check
the combustion values (CO,CO
· Check the UV flow (target value
between 200 and 500 m A).
· Read the gas flow rate from the gas
counter.
· Increase the power to high load by
pressing + on the pulsation switch S3.
· Check the exhaust gas values.
Re-adjust the gas/air ratio depending
on the measurement value:
with SKP, act on adjustment screw
–
R. To do this, remove the upper
cover. Higher CO in direction +.
2
Lower CO in direction -. (see
2
symbols on the top SKP70 page 34)
with MBVEF valve, act on screw V.
–
Higher CO in direction of greater scale
2
setting. Lower CO in direction of
2
46
smaller scale setting. (see page 34)
· To achieve the desired level of effi-
ciency, use the CO
gas temperature settings recom-
mended by the boiler manufacturer.
· Check the UV flow (target value
between 200 and 500 m A).
· Read the gas flow rate from the gas
counter.
· Bring the burner to low load and
check the combustion values.
Depending on the measurement
value, adjust screw D on the SKP
regulator, or screw N on the MBVEF
regulator.
· Define the desired partial load with
).
2
key S3. To do this, re-adjust cam V
as required.
· Check the exhaust gas values again
and re-adjust the gas/air ratio
depending on the measurement
value.
· Bring the burner back to full load;
check the combustion values.
· If the measurement values have
changed through the adjustment of
screw D on the SKP regulator or
screw N on the MBVEF valve, the
ratio R on the SKP regulator, or ratio
V on the MBVEF valve must be
adjusted in the desired direction.
m
Dimension Y of the burner head
setting may not be changed.
· If the burner head setting (dimension Y)
06/2006 - Art. Nr. 13 018 118B
is changed, the entire adjustment
procedure for oil operation must be
repeated.
and exhaust
2
· Limit switch I may no longer be
changed, as the 3 stage oil has
already been adjusted.
Setting the ignition load
· Set the ignition load for gas
operation with cam III so that a safe
burner start is guaranteed. Here, the
ignition load can be set above or
below the low load value.
Setting the gas pressure switch
· Set the switch to the minimum input
pressure.
· Slowly close the gas shut-off valve.
· The burner should switch off
because of lack of gas pressure.
· Re-open the gas shut-off valve.
Setting the air pressure switch
· Once the burner is again burning at
low load, determine the shut-off
point of the air pressure switch by
turning the scale disk.
· Set the air pressure switch 10%
below this shut-off value.
