Assembly
Settings
Gas nozzles
Natural gas
Propane gas
06/2006 - Art. Nr. 13 018 118B

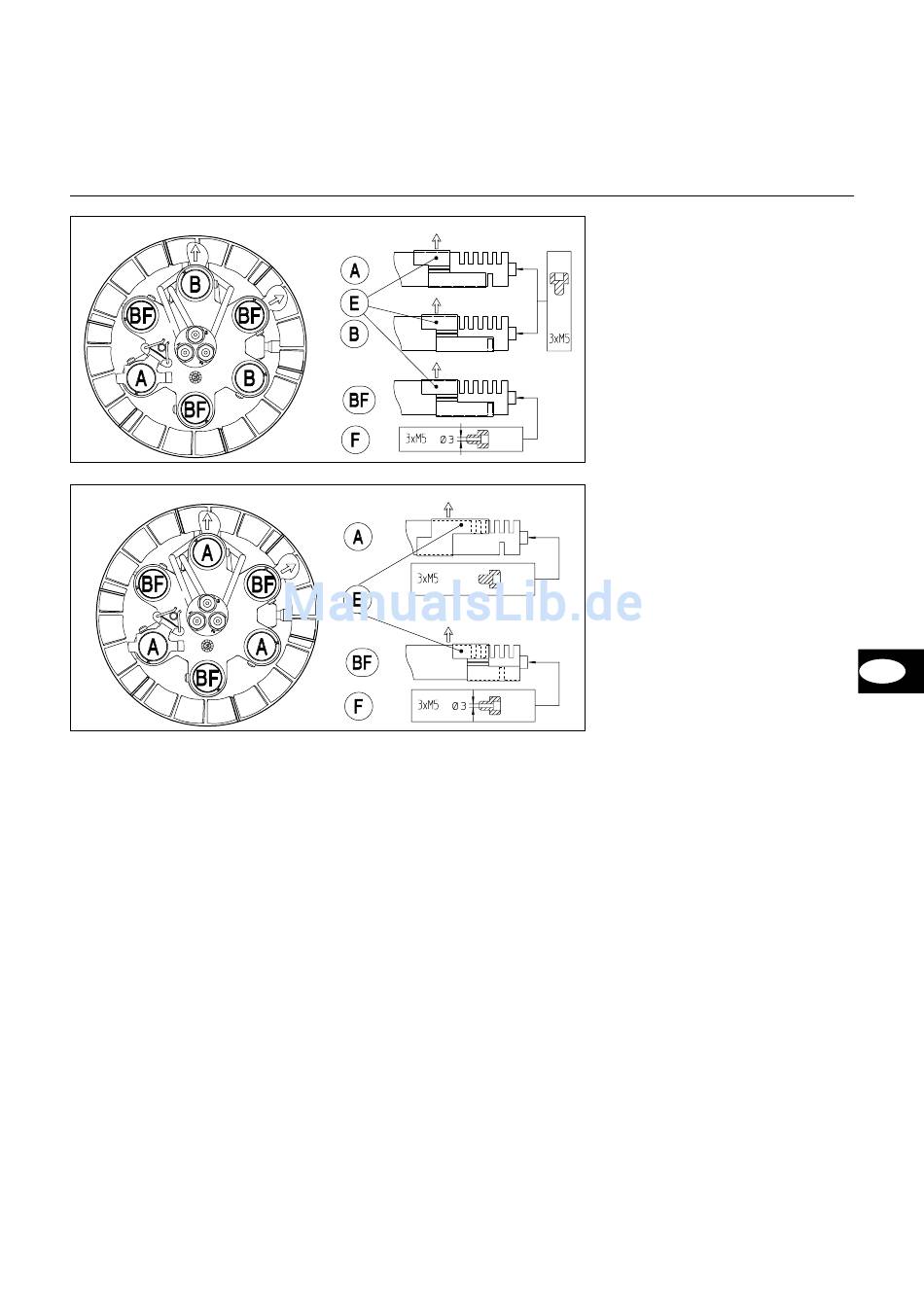

Default setting
5 outwards-facing slots (arrowed) + 1
inwards-facing slot on 1 gas diffuser
labelled with A, in accordance with the
position of the sleeve E.
The turbulator is fixed on the three gas
diffusers A and B with three solid
M5x6 screws.
5 outwards-facing slots (arrowed) +
no (0) inwards-facing slot on 5 gas
diffusers labelled with B and BF, in
accordance with the position of the
sleeve E.
The turbulator is fixed on the three gas
diffusers BF with three M5x6 screws
drilled to Ø3 F.
Recommended setting
3 outwards-facing slots (arrowed) + 1
inwards-facing slot on 3 gas diffuser
labelled with A, in accordance with the
position of the sleeve E.
The turbulator is fixed on the three gas
diffusers A with three solid M5x6 screws.
3 outwards-facing slots (arrowed) +
no (0) inwards-facing slot on 3 gas
diffusers labelled with BF, in accor-
dance with the position of the sleeve E.
The turbulator is fixed on the three gas
diffusers BF with three drilled M5x6
screws F.
