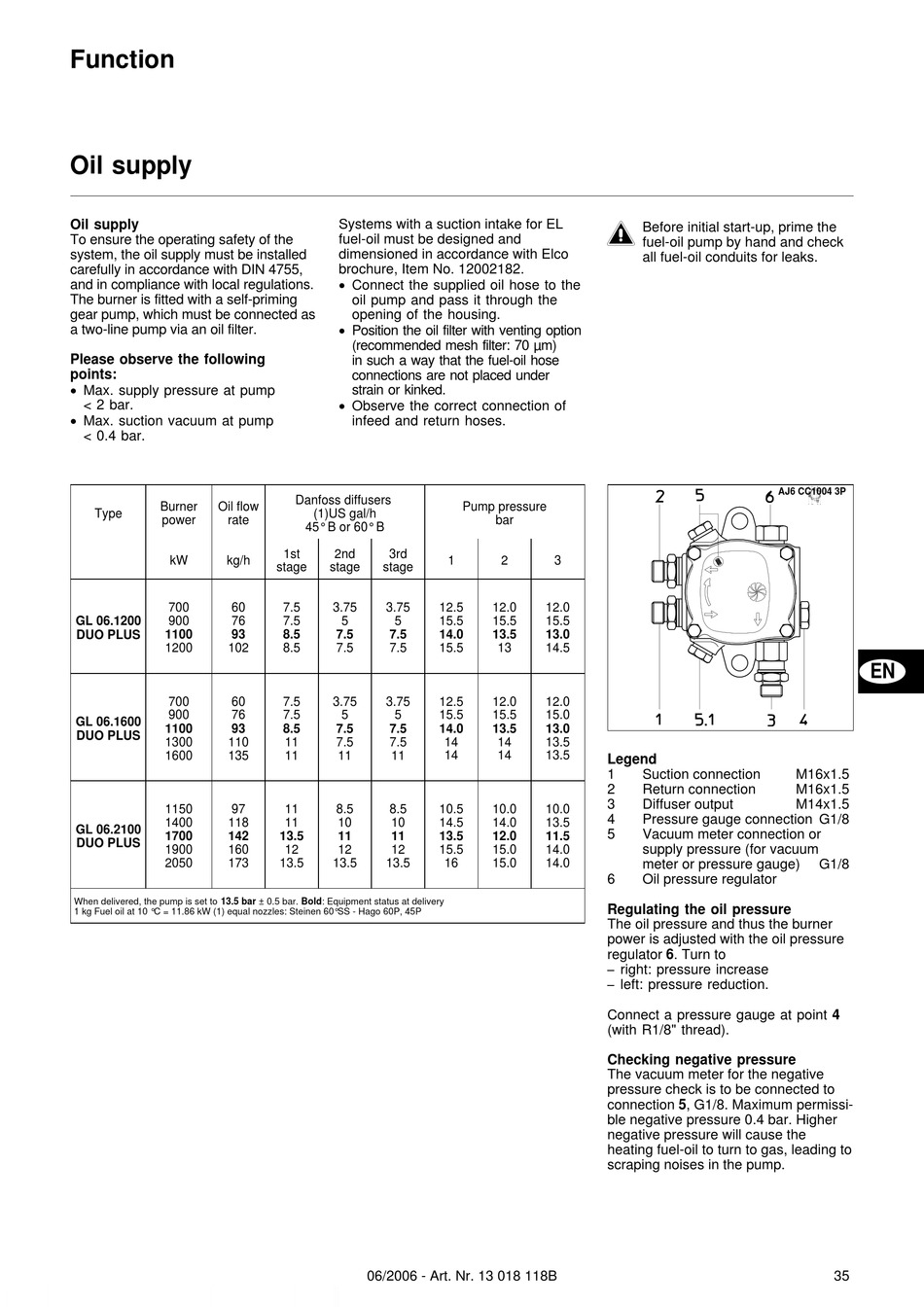

Function

Oil supply

Oil supply
To ensure the operating safety of the
system, the oil supply must be installed
carefully in accordance with DIN 4755,
and in compliance with local regulations.
The burner is fitted with a self-priming
gear pump, which must be connected as
a two-line pump via an oil filter.
Please observe the following
points:
· Max. supply pressure at pump
< 2 bar.
· Max. suction vacuum at pump
< 0.4 bar.
Burner Oil flow
Type
power rate
kW kg/h
700 60
GL 06.1200 900 76
DUO PLUS 1100 93
1200 102
700 60
900 76
GL 06.1600
1100 93
DUO PLUS
1300 110
1600 135
1150 97
1400 118
GL 06.2100
1700 142
DUO PLUS
1900 160
2050 173
When delivered, the pump is set to 13.5 bar ± 0.5 bar. Bold: Equipment status at delivery
1 kg Fuel oil at 10 °C = 11.86 kW (1) equal nozzles: Steinen 60°SS - Hago 60P, 45P
Systems with a suction intake for EL
fuel-oil must be designed and
dimensioned in accordance with Elco
brochure, Item No. 12002182.
· Connect the supplied oil hose to the
oil pump and pass it through the
opening of the housing.
· Position the oil filter with venting option
(recommended mesh filter: 70 µm)
in such a way that the fuel-oil hose
connections are not placed under
strain or kinked.
· Observe the correct connection of
infeed and return hoses.
Danfoss diffusers
(1)US gal/h
45° B or 60° B
1st 2nd 3rd
1
stage stage stage
7.5 3.75 3.75 12.5
7.5 5 5 15.5
8.5 7.5 7.5 14.0
8.5 7.5 7.5 15.5
7.5 3.75 3.75 12.5
7.5 5 5 15.5
8.5 7.5 7.5 14.0
11 7.5 7.5 14
11 11 11 14
11 8.5 8.5 10.5
11 10 10 14.5
13.5 11 11 13.5
12 12 12 15.5
13.5 13.5 13.5 16
06/2006 - Art. Nr. 13 018 118B
m
Pump pressure
bar
2 3
12.0 12.0
15.5 15.5
13.5 13.0
13 14.5
12.0 12.0
15.5 15.0
13.5 13.0
14 13.5
14 13.5
Legend
1
2
3
10.0 10.0
4
14.0 13.5
5
12.0 11.5
15.0 14.0
15.0 14.0
6
Regulating the oil pressure
The oil pressure and thus the burner
power is adjusted with the oil pressure
regulator 6. Turn to
right: pressure increase
–
left: pressure reduction.
–
Connect a pressure gauge at point 4
(with R1/8" thread).
Checking negative pressure
The vacuum meter for the negative
pressure check is to be connected to
connection 5, G1/8. Maximum permissi-
ble negative pressure 0.4 bar. Higher
negative pressure will cause the
heating fuel-oil to turn to gas, leading to
scraping noises in the pump.
Before initial start-up, prime the
fuel-oil pump by hand and check
all fuel-oil conduits for leaks.
AJ6 CC1004 3P
Suction connection M16x1.5
Return connection M16x1.5
Diffuser output M14x1.5
Pressure gauge connection G1/8
Vacuum meter connection or
supply pressure (for vacuum
meter or pressure gauge)
Oil pressure regulator
EN
G1/8
