Burner Description - elco VECTRON GL 06.1200 DUO PLUS Betriebsanleitung

Overview

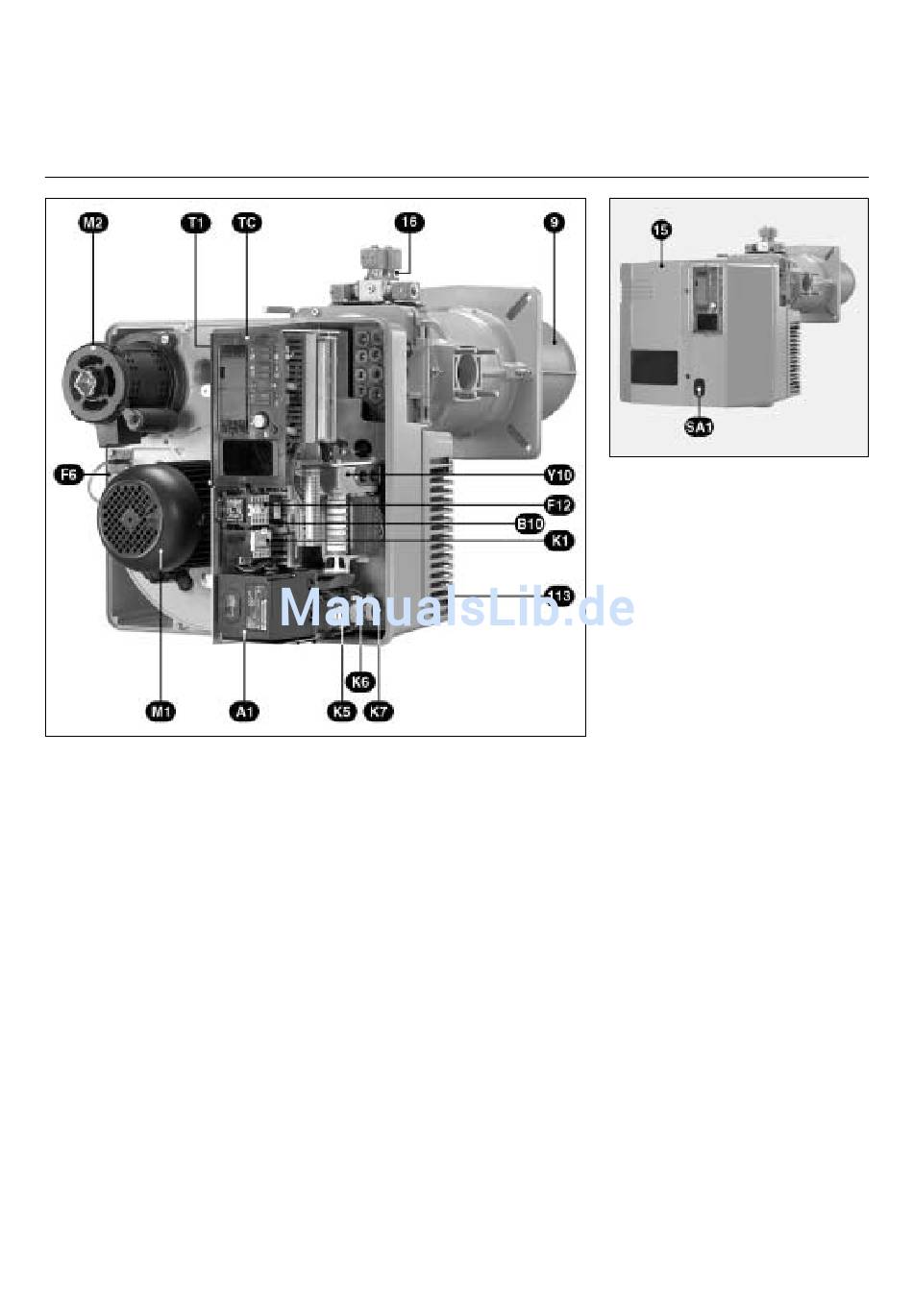

Burner description

30 06/2006 - Art. Nr. 13 018 118B
A1 Control and safety unit
B10 Measurement bridge
(concealed)
F6 Air pressure switch
F12 Motor protection relay
K1 Motor protection
M1 Burner motor
M2 Oil pump motor
SA1 - Troubleshooting key
- Programme display
T1 Ignition transformer (concealed)
TC Control panel
Y10 Air flap servomotor
9 Blast tube
15 Burner cover
16 Valve block
113 Air box
