2 Safety information

The safety information in this document refers only to an indi-
vidual product. Potentially dangerous conditions can arise in
combination with other plant components, which need to be
considered on the basis of a risk analysis. The operator is re-
sponsible for the production of the risk analysis and for com-
pliance with the resulting precautionary measures and re-
gional safety regulations.
The document contains fundamental safety information that
must be observed during commissioning, operation and main-
tenance. Non-compliance with these instructions may cause:
- Personal hazard due to electrical, mechanical and chemical
effects
- Hazard to nearby equipment
- Failure of important functions
- Hazard to the environment due to the leakage of dangerous
materials
The safety information does not take into account:
- Unexpected incidents and events, which may occur during
installation, operation and maintenance
- Local safety regulations which must be adhered to by the
operator and by any additional installation personnel
Prior to commissioning:
1. Transport and store the product correctly.
2. Do not paint the bolts and plastic parts of the product.
3. Carry out installation and commissioning using trained
personnel.
4. Provide adequate training for installation and operating
personnel.
5. Ensure that the contents of the document have been fully
understood by the responsible personnel.
6. Define the areas of responsibility.
7. Observe the safety data sheets.
8. Observe the safety regulations for the media used.
During operation:
9. Keep this document available at the place of use.
10. Observe the safety information.
11. Operate the product in accordance with this document.
12. Operate the product in accordance with the specifications.
13. Maintain the product correctly.
14. Do not carry out any maintenance work and repairs not de-
scribed in this document without consulting the manufac-
turer first.
In cases of uncertainty:
15. Consult the nearest GEMÜ sales office.
www.gemu-group.com

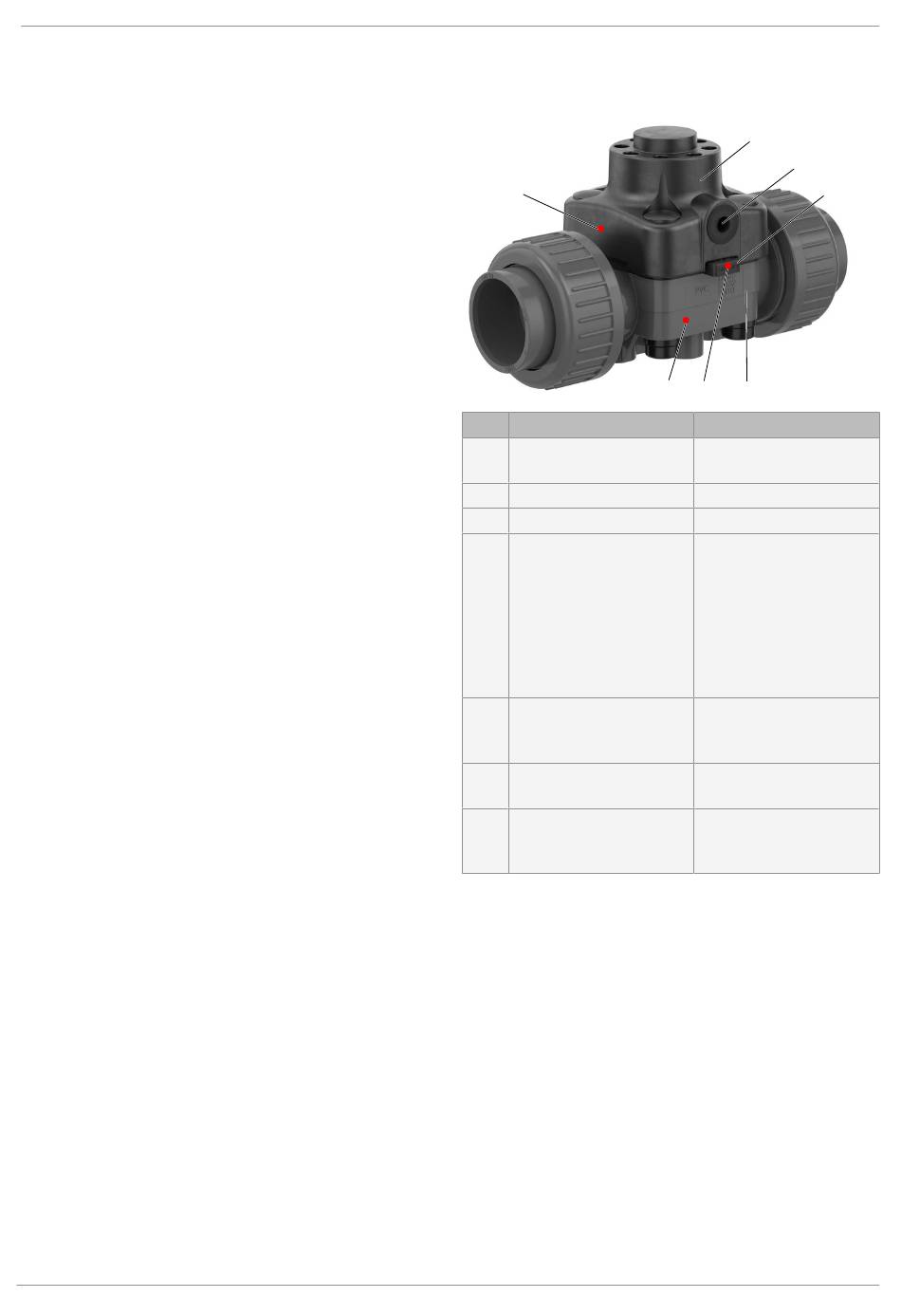

3 Product description

3.1 Design

7
8
Item Name
1 Actuator
2 Control medium connector
3 Diaphragm
4 Valve body
5 CONEXO diaphragm RFID
chip
(see Conexo information)
6 CONEXO body RFID chip
(see Conexo information)
7 CONEXO actuator RFID
chip
(see Conexo information)

3.2 Description

The GEMÜ R647 2/2-way diaphragm valve is a straight
through valve and is pneumatically operated. The valve
doesn't have a closing spring and is only closed by applying
compressed air. A diaphragm is the sealing element. The con-
trol medium applies direct pressure to the shut-off diaphragm
pressing it against the shut-off weir in the valve body. The
high-flow valve body provides compact dimensions at high
flow rates.

3.3 Function

The product is designed for use in piping. It can be closed by
a control medium or opened by operating pressure, which is
how it controls the flow.
35 / 64
3 Product description
1
2
3
6
5 4
Materials
PP-H glass fibre rein-
forced 30%
NBR, FKM, EPDM
PVC-U, grey
ABS
PP, reinforced
PVDF
Inliner PP-H, grey/outliner
PP, reinforced
Inliner PVDF/outliner PP,
reinforced
GEMÜ R647
