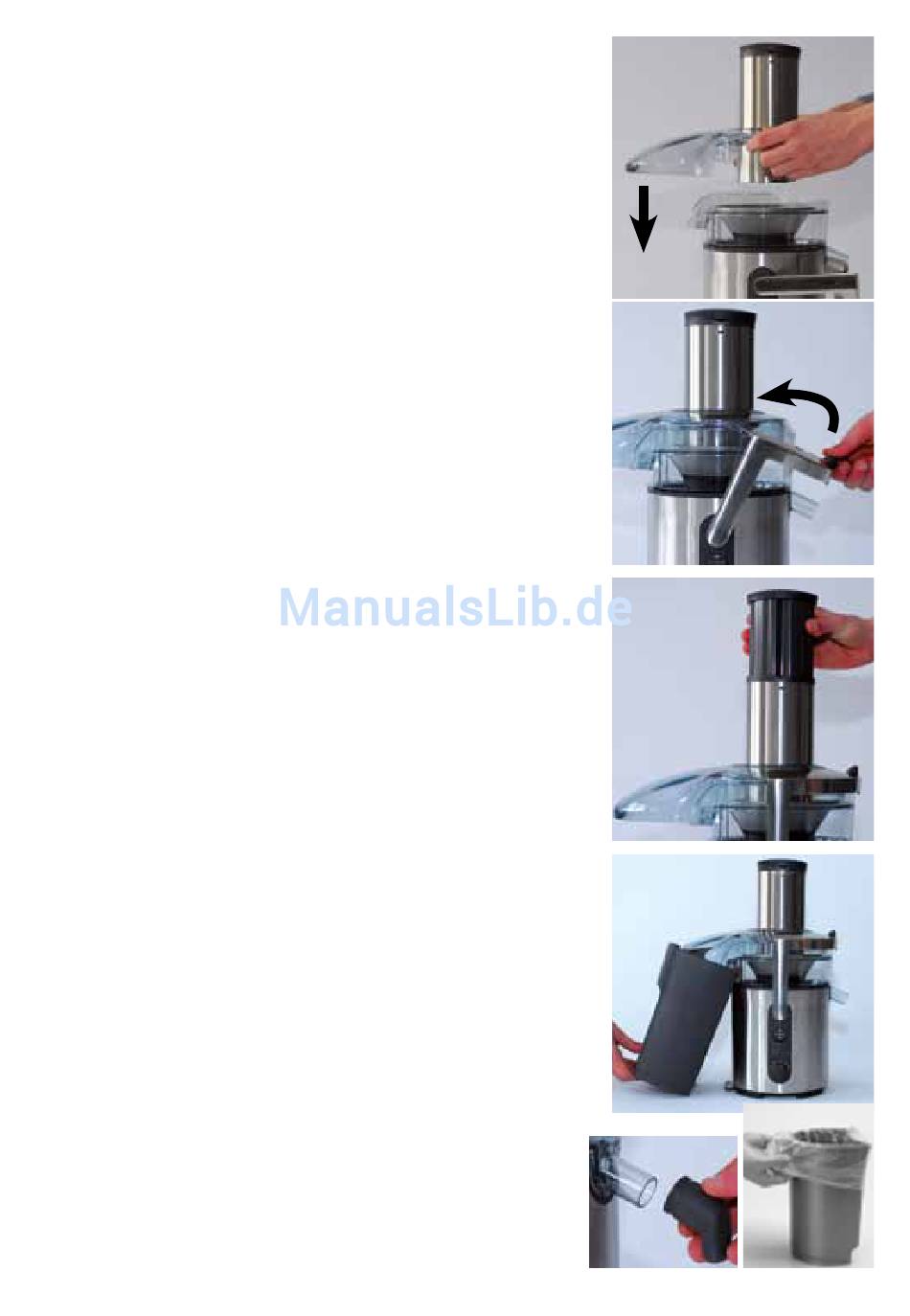

5. Slide the food pusher down the feed chute by aligning the
groove of the food pusher with the small protrusion on the
inside of the top of the feed chute. Continue to slide the food
pusher down the feed chute (picture E)
6. Place the pulp container into position by tilting the motor
base slightly to the right. Insert the container under the juicer
cover on the left-hand side ensuring it is supported by the con-
tainer support extending from under the motor base (picture F).
Note: To minimise cleaning, line the pulp container with a
plastic freezer bag to collect the pulp (picture G). Pulp can
then be used in other dishes, or as compost for the garden
or discarded.
7. Place the juice jug provided under the spout on the right-
hand side of the appliance. The juice jug lid can be used to
avoid any splatter.
Alternatively you can fit the custom-designed juice nozzle over
the juice spout and place a glass underneath. The juice noz-
zle will prevent splatter, ensuring mess free juicing (picture H).
operating your »Design Multi Juicer«
1. Wash selection of fruit and vegetables to be juiced and
remove if necessary the peel (oranges, citrus fruit), stems and
stones (nectarines, peaches, plums) and all inedible elements.
Note: Most fruit and vegetables such as apples, carrots and
cucumber will not need to be cut or trimmed to size as these
will fit whole into the feed chute. Ensure vegetables such as
beetroot, carrots, etc. have all soil removed, are well washed
and trimmed of leaves before juicing. When juicing carrots
place the tip of the carrot into the feed chute last.
2. Ensure the »Design Multi Juicer« is correctly assembled and
that there are nor foreign objects in the feed chute before put-
ting the plug into the power point. Ensure the stainless steel
filter is thoroughly cleaned before each use (refer to ›Care
and cleaning‹). Ensure you place the juice jug with lid fitted
(or glass) under spout before commencing juicing.
3. Plug the power cord into a 230/240V power outlet and
turn the power ›ON‹. Push the ›ON/OFF‹ button to ›ON‹.
Adjust the variable speed control dial to the desired setting
depending on the type of fruit or vegetable being juiced.
Use the speed selector table as a guide for juicing different
fruit and vegetables.
Note: Hard fruit and vegetables will put excess strain onto
the motor if a low speed is selected. Please refer to the
speed selector table to determine the correct speed for the
fruit and vegetables being juiced.
