4.2.5 Connection terminals for inputs and outputs
DANGER
Electric shock
Death or serious personal injury
‐
Make sure that the wires to be connected to the connection groups below are separated from each other by reinforced insulation
in their entire lengths.

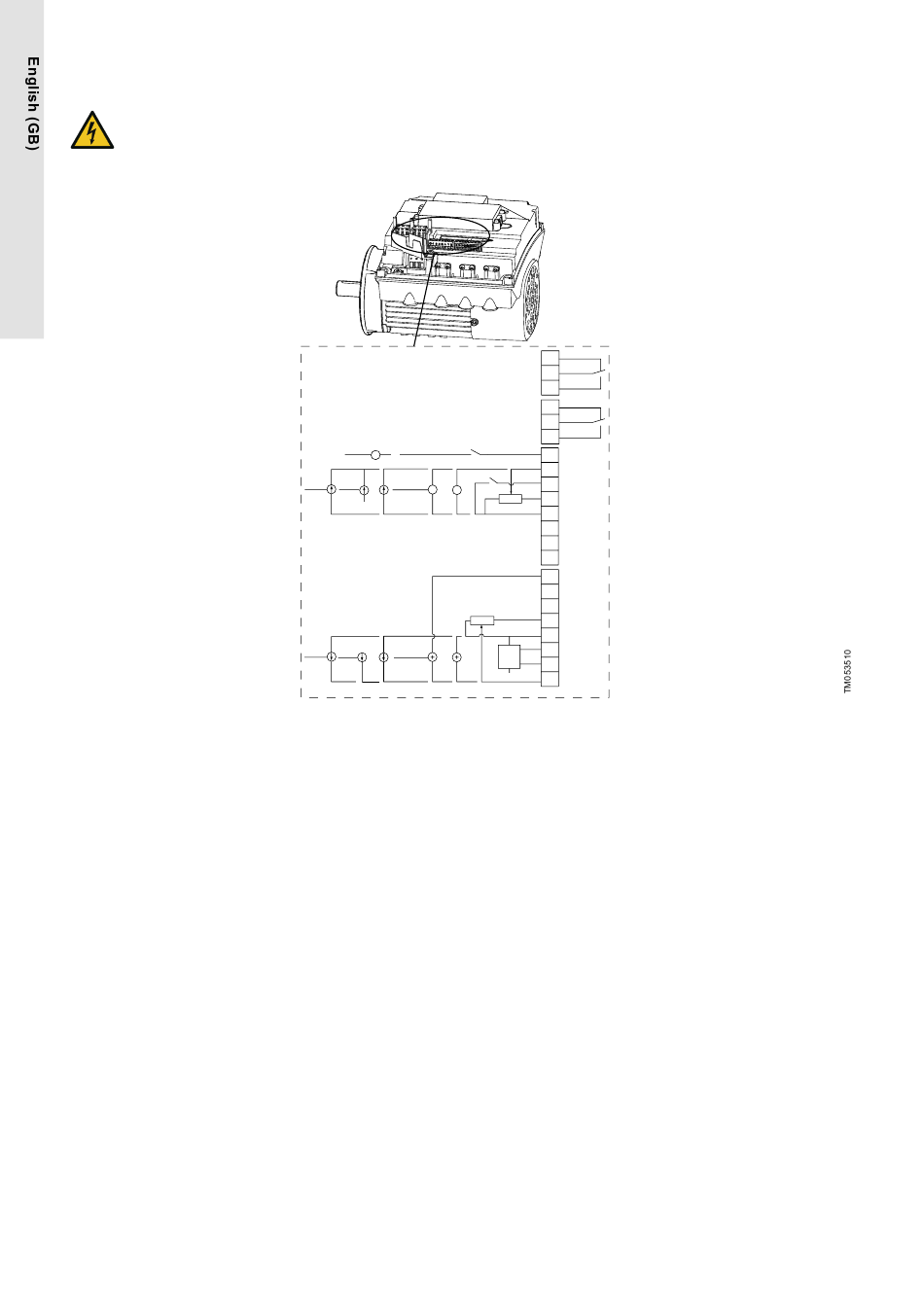

Connection terminals, FM 200
* If you use an external supply source, there must be a connection to GND.
8
OC
DI
GND
+24 V*
+24 V* +24 V* +24 V*/5 V*
+ +
+24 V* +24 V* +24 V*/5 V*
NC
C1
NO
NC
C2
NO
10 DI3/OC1
4
AI1
2 DI1
5
+5 V
6 GND
A
GENIbus A
Y
GENIbus Y
B
GENIbus B
3
GND
15
+24 V
8
+24 V
26
+5 V
23
GND
25
GDS TX
24 GDS RX
+5 V*
7
AI2
