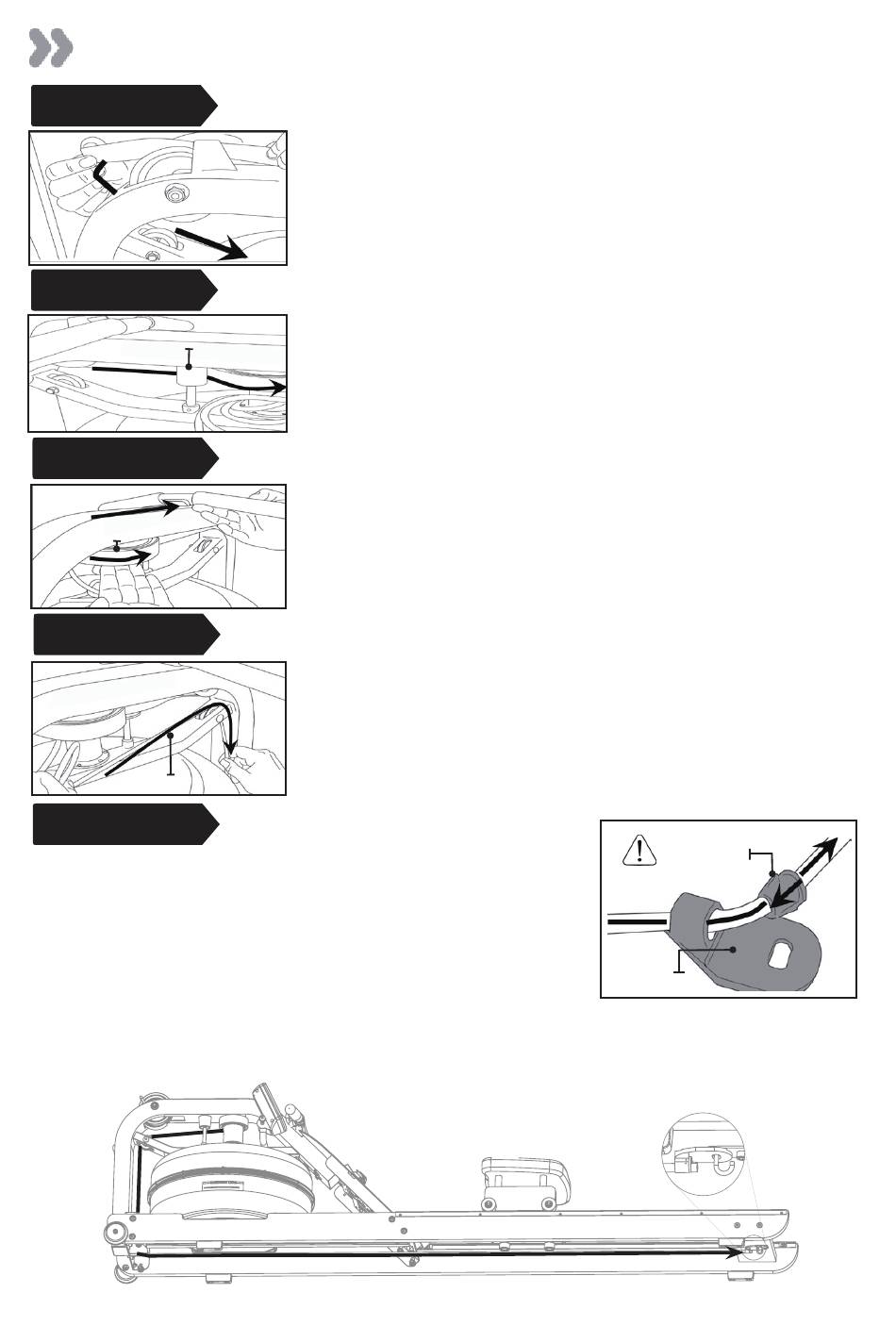

Reattaching the Rower Belt

..........................................................................................................................................................
STEP 1
Velcro Facing Upward
STEP 2
Idle Wheel
STEP 3
Rower Handle
Belt/Bungee Pulley
STEP 4
Bungee Pulley
Bungee Shock Cord
STEP 5
Recoil tension will decrease over time as the Bungee Shock Cord
stretches. To increase recoil tension, simply push the Inner Clip
out of the Bungee Hook from behind, pull the required amount of
Bungee through the Inner Clip and replace the Inner Clip into the
Bungee Hook as shown below.
Hint: Before reattaching the Inner Clip/Bungee Hook, tie a slip knot under slight tension at the Lower
Bungee Pulley. This will keep the Bungee under tension while reassembling the Bungee Hook.
Begin reattaching the Rower Belt by threading around the Rower Belt
Pulley with the Velcro side facing upward as illustrated.
Next, thread the Belt around the Idle Wheel as shown. Once around
the Idle Wheel, attach the Rower Belt to the Belt/Bungee Pulley.
There is an obvious "lip" at the attachment point.
Wind the Rower Belt onto the Belt/Bungee Pulley until the Rower
Handle is as it's furthest forward position.
Rethread the Bungee Shock Cord (on opposite side of the Idle Wheel)
back through the Bungee Pulleys and tie off at the Attachment Point.
Reattaching the Rower Belt
14
Inner Clip
Bungee Hook
