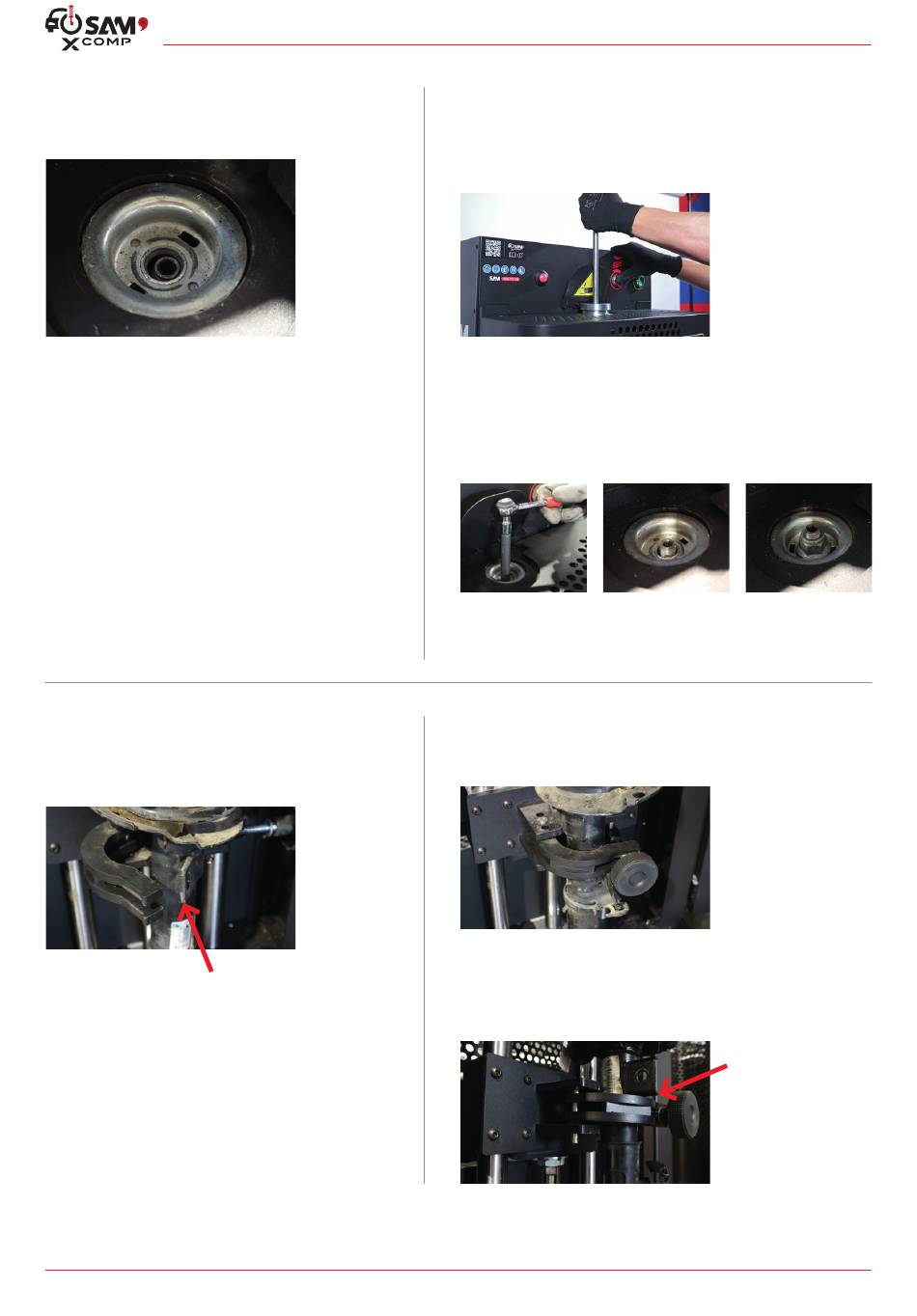

SPECIAL CASE 3:
The stay rod's upper threaded part stays stuck in the shock
absorber cup.
SPECIAL CASE 4:
The shock absorber stay rod's installation support prevents
the stay rod clamp's flange from closing
26 / 124
SOLUTION 1 :
Decompress then recompress the spring. Install the corresponding
centring rod and help the upper threaded part to fit into the hole in the
cup by guiding the centring rod
SOLUTION 2 :
Insert a wrench corresponding to the upper threaded part of the
stay rod in the shock absorber's rod then turn counterclockwise.
The upper threaded part must come up through the cup until it
protrudes sufficiently to position the nut fastening the upper part
of the shock absorber
SOLUTION 3 :
The stay rod is too worn, it must be replaced
SOLUTION 1 :
Position the stay rod's installation support on the upper part of the
stay rod clamp then close the flange
SOLUTION 2 :
Turn the shock absorber's body until you get sufficient space between
the cup and the installation support. This is the right position for
installing the shock absorber on the stay rod clamp
