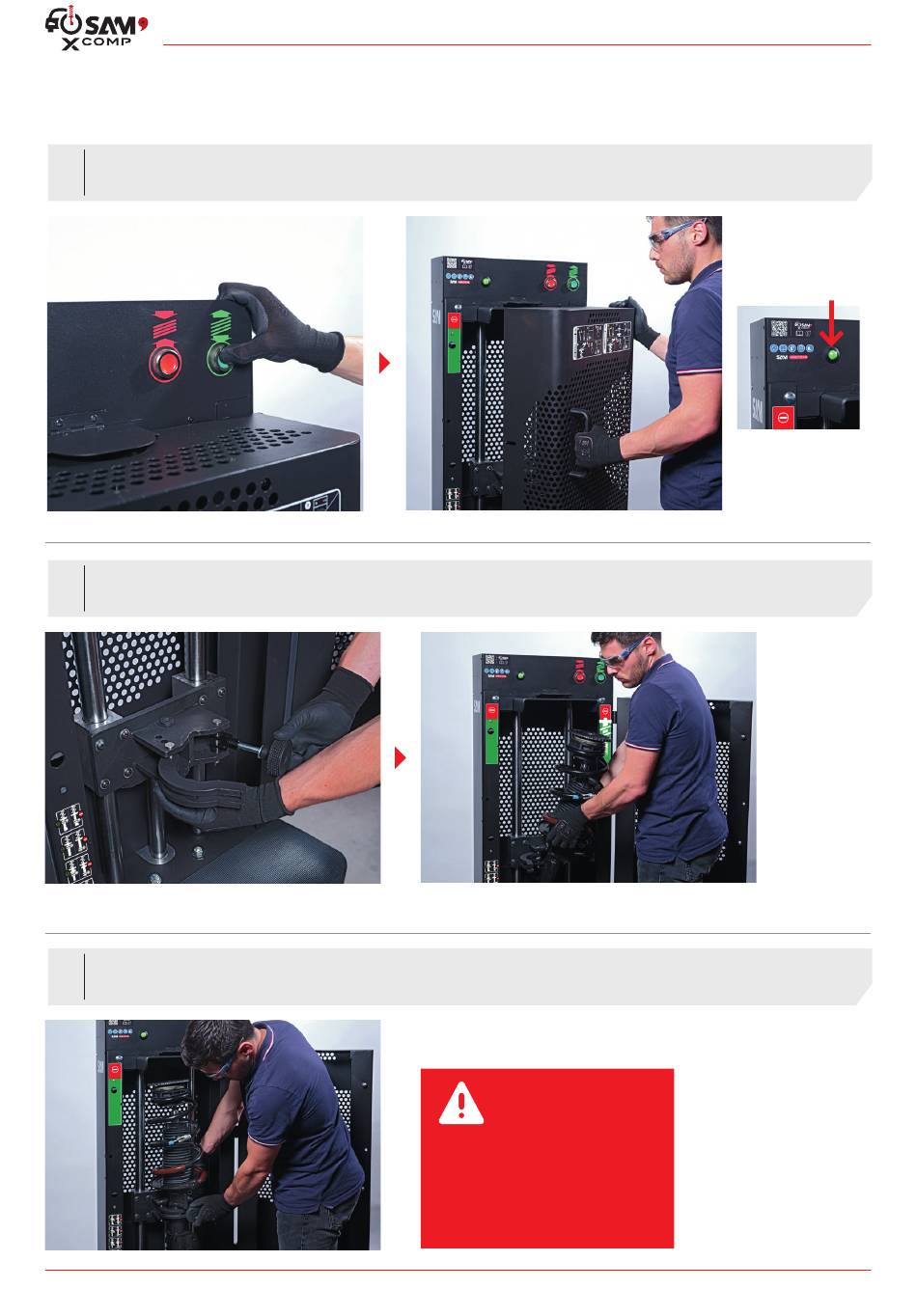

VI. Reassembling the shock absorber
01
PRESS THE GREEN PUSHBUTTON TO OPEN THE DOOR.
02
OPEN THE STAY ROD CLAMP AND POSITION THE SHOCK ABSORBER AND SPRING ASSEMBLY.
03
TIGHTEN THE SHOCK ABSORBER IN THE STAY ROD CLAMP USING THE THUMBWHEEL.
22 / 124
Adjust the position of the flange according to the diameter of the stay rod.
>
(Adjustments in appendix)
Check that the shock absorber is
correctly positioned in the vertical
axis of the spring compressor.
Check that there isn't anything
preventing the door from closing.
EN
The green pressurisation
>
indicator indicates the
absence of pneumatic power
in the spring compressor.
