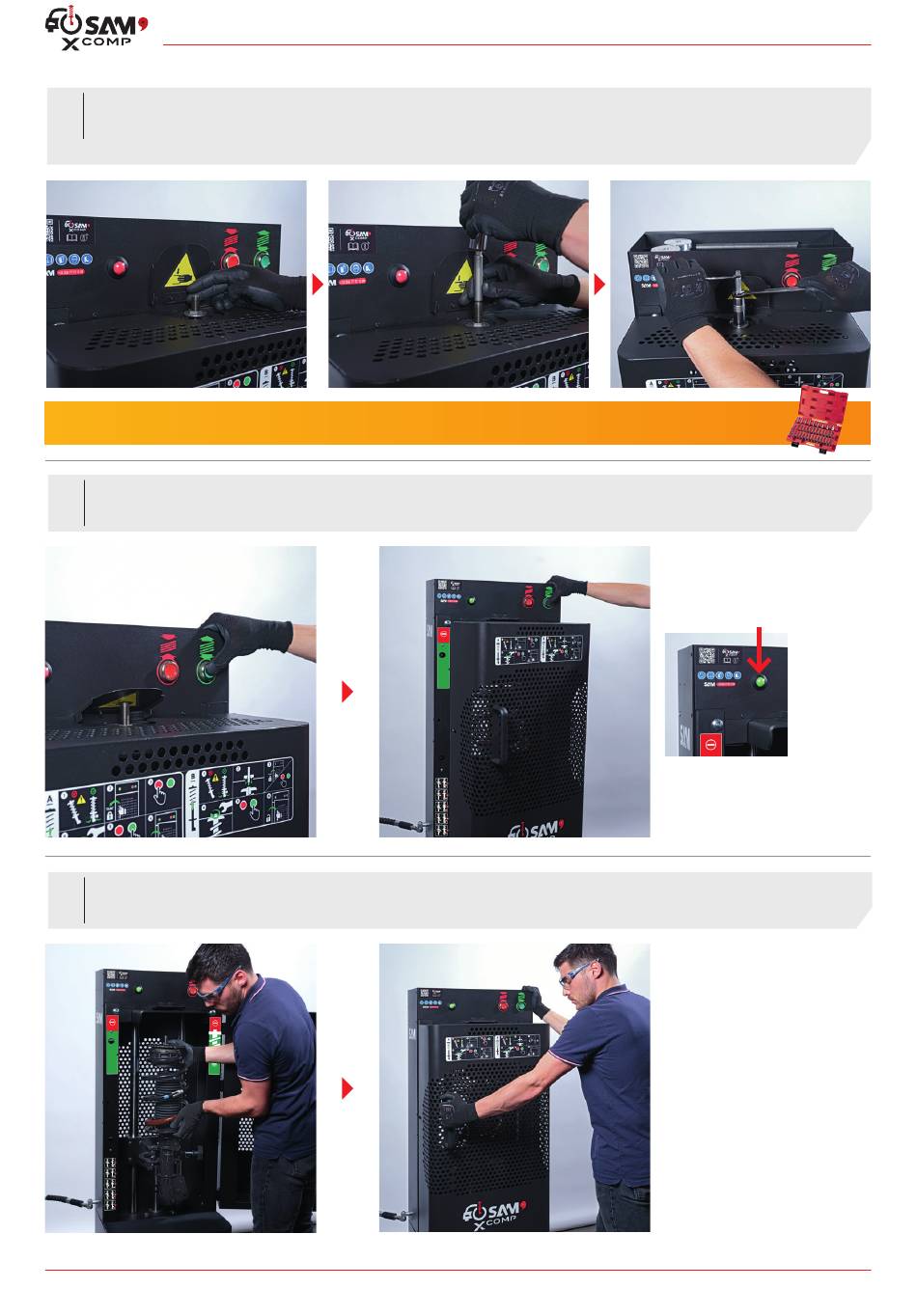

INSERT THE ATTACHMENT NUT IN THE UPPER THREADED PART. POSITION THE CORRESPONDING ROD ON THE UPPER NUT
THREADED PART THEN PLACE THE SOCKET IN THE ATTACHMENT NUT. MECHANICALLY TIGHTEN HOME THE ATTACHMENT
NUT WHILE MAINTAINING THE ROD, AS PER THE MANUFACTURER'S RECOMMENDATIONS.
Tip: For this operation, it is recommended to use the toolbox for removing the shock absorber supports - Reference CPA-20.
08
PRESS AND HOLD THE GREEN PUSHBUTTON TO DECOMPRESS THE SPRING. KEEP THE PUSHBUTTON
PRESSED UNTIL THE DOOR OPENS.
09
REMOVE THE SHOCK ABSORBER ASSEMBLY FROM THE STAY ROD CLAMP THEN CLOSE THE DOOR.
24 / 124
The green pressurisation
>
indicator indicates the
absence of pneumatic power
in the spring compressor.
