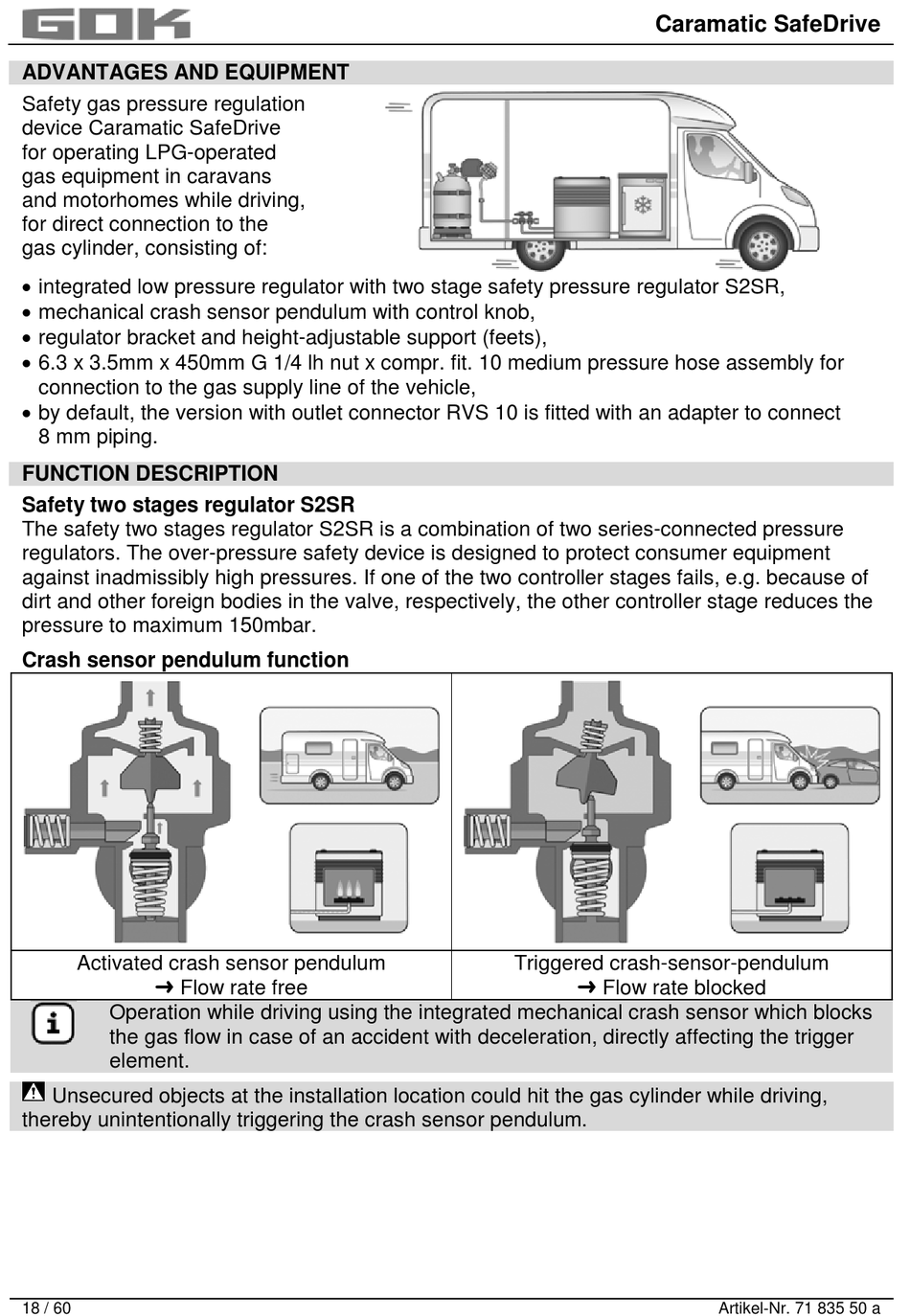

ADVANTAGES AND EQUIPMENT
Safety gas pressure regulation
device Caramatic SafeDrive
for operating LPG-operated
gas equipment in caravans
and motorhomes while driving,
for direct connection to the
gas cylinder, consisting of:
• integrated low pressure regulator with two stage safety pressure regulator S2SR,
• mechanical crash sensor pendulum with control knob,
• regulator bracket and height-adjustable support (feets),
• 6.3 x 3.5mm x 450mm G 1/4 lh nut x compr. fit. 10 medium pressure hose assembly for
connection to the gas supply line of the vehicle,
• by default, the version with outlet connector RVS 10 is fitted with an adapter to connect
8 mm piping.
FUNCTION DESCRIPTION
Safety two stages regulator S2SR
The safety two stages regulator S2SR is a combination of two series-connected pressure
regulators. The over-pressure safety device is designed to protect consumer equipment
against inadmissibly high pressures. If one of the two controller stages fails, e.g. because of
dirt and other foreign bodies in the valve, respectively, the other controller stage reduces the
pressure to maximum 150mbar.
Crash sensor pendulum function
Activated crash sensor pendulum
 Flow rate free
Operation while driving using the integrated mechanical crash sensor which blocks
the gas flow in case of an accident with deceleration, directly affecting the trigger
element.
Unsecured objects at the installation location could hit the gas cylinder while driving,
thereby unintentionally triggering the crash sensor pendulum.
18 / 60
Caramatic SafeDrive
Triggered crash-sensor-pendulum
 Flow rate blocked
