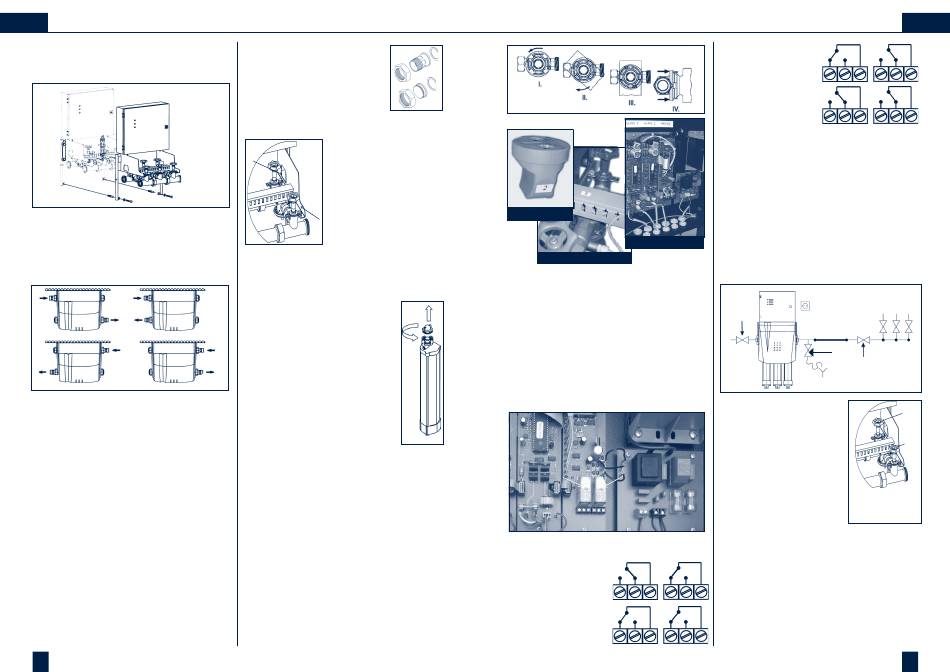

5.4.3. Attach AQA total supply distributor
to mounting hooks as shown in diagram
and secure with supplied screws.
5.4.4. Connect the AQA total supply distributor
Connection options
The AQA total unit water supply can be fed in from
either direction. The water outlet can also be on
either side of the unit.
Variant 1
Variant 2
Input
Input
Output Output
Variant 3 Variant 4
Input
Output
Important:
The water inlet must always be on the back of the
unit. Note the "IN" sticker on the AQA total supply
distributor.
The water outlet must always be on the front of
the unit. Note the "OUT" sticker on the AQA total
supply distributor.
The scope of delivery includes:
- 2 grub screw connections each consisting of a
plate, locking nut and flat seal
- 2 screw connections each consisting of a
screw, locking nut and flat seal
- AQA total 5600 6/4" external thread
- AQA total 8400 6/4" external thread
- AQA total 11200 2" external thread
- AQA total 14000 2" external thread
26
Connect the AQA total supply
distributor while switched off with
the pipes using the supplied screw
connections.
The vacant, open connections of
the AQA total supply distributor
should be sealed with the grub screws.
The wall distance can be
modified within a certain ran-
ge by loosening the pre-fixed
fixing screws so that the
unit is mounted without any
stresses.
5.4.5 Take the working unit included in the scope
of delivery out of the packaging and
remove the transportation sealing caps.
Connect the working unit to the
AQA total supply distributor.
I. Turn the retaining ring to the left
until the stop is reached.
II. Press the working unit claws into
Input
the slots until the stops are
reached.
Output
III. Turn the working unit clockwise
the stop is reached.
IV. Pull the retaining ring with both
the direction of the
working unit until it engages.
working unit is now secured
against unintentional rotation.
To release the rotation safety, press both clips on
the retaining ring together and push upwards with
both hands.
5.4.6. Plug the electrode cable, using the plastic
plug, into the underside of the working unit.
Important: Numbers are displayed on the cable
channel and plastic plug.
Only plug a plastic plug into the working unit that
has the same number displayed on the cable
channel above the working unit.
(Note: Each working unit is assigned a slave circuit
board with the corresponding number in the con-
trol box).
plastic plug
cable channel
5.4.7. OPTIONAL:
Transmitting control signals: The unit
control system is equipped with 2 floating
relays. Open the control box with the
supplied key. The relays are located on the
master circuit board (labelled "MASTER").
The following control signals are available:
1. Signal for „Early warning refill replacement"
45° until and „Refill replacement"
hands in 2. Signal for fault
The
Relay 2
The control relays trigger if a signal is output
or if there is a power failure.
1. Relay position in
normal condition
2. Early warning refill
replacement
3. Replace refill
4. Power failure or
system error
5.4.8. Check system for correct installation!
6. Commissioning
We recommend that commissioning is implemen-
ted by our customer services.
Important: The commissioning sequence must be
followed!
blanks 6.1. Close shut-off valves upstream/downstream
of AQA total unit and rinsing valve.
6.2. If the system is equipped with a bypass
Shut-off valve
upstream of
unit
circuit, this can be left
open during commis-
sioning to ensure the
water supply is continued.
Caution – whenthe bypass
circuit is open, untreated
water will enter the pipe
Relay 1
system.
6.3. Close all shut-off valves
of the AQA total distributor
6.4. Slowly open the shut-off valve
upstream of the AQA total unit.
6.5. The system is pressurized by slowly opening
all shut-off valves in the AQA total distributor.
6.6. The system is pressurized by slowly opening
all shut-off valves in the AQA total distributor.
6.7. Check the electrical installation again for any
damage and correct connection.
EN
Rinsing valve
Shut-off valve
upstream of unit
a
b
a) Shut-off valve of the
AQA total distributor
b) Shut-off valve of the
AQA total distributer
