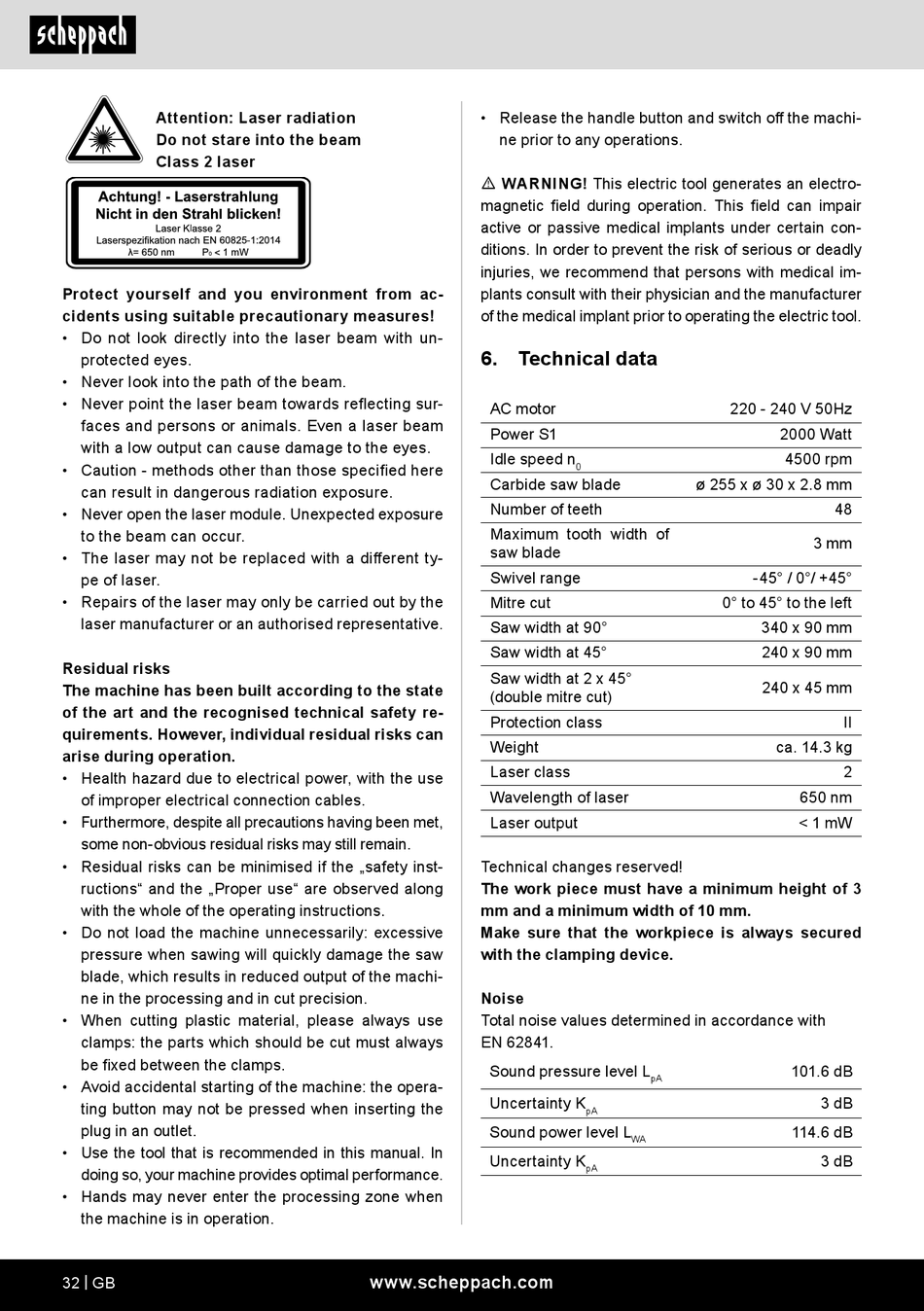

Scheppach HM254 Originalbetriebsanleitung Seite 32

Attention: Laser radiation
Do not stare into the beam
Class 2 laser
Protect yourself and you environment from ac-
cidents using suitable precautionary measures!
• Do not look directly into the laser beam with un-
protected eyes.
• Never look into the path of the beam.
• Never point the laser beam towards reflecting sur-
faces and persons or animals. Even a laser beam
with a low output can cause damage to the eyes.
• Caution - methods other than those specified here
can result in dangerous radiation exposure.
• Never open the laser module. Unexpected exposure
to the beam can occur.
• The laser may not be replaced with a different ty-
pe of laser.
• Repairs of the laser may only be carried out by the
laser manufacturer or an authorised representative.
Residual risks
The machine has been built according to the state
of the art and the recognised technical safety re-
quirements. However, individual residual risks can
arise during operation.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been met,
some non-obvious residual risks may still remain.
• Residual risks can be minimised if the „safety inst-
ructions" and the „Proper use" are observed along
with the whole of the operating instructions.
• Do not load the machine unnecessarily: excessive
pressure when sawing will quickly damage the saw
blade, which results in reduced output of the machi-
ne in the processing and in cut precision.
• When cutting plastic material, please always use
clamps: the parts which should be cut must always
be fixed between the clamps.
• Avoid accidental starting of the machine: the opera-
ting button may not be pressed when inserting the
plug in an outlet.
• Use the tool that is recommended in this manual. In
doing so, your machine provides optimal performance.
• Hands may never enter the processing zone when
the machine is in operation.
32 | GB
• Release the handle button and switch off the machi-
ne prior to any operations.
m WARNING! This electric tool generates an electro-
magnetic field during operation. This field can impair
active or passive medical implants under certain con-
ditions. In order to prevent the risk of serious or deadly
injuries, we recommend that persons with medical im-
plants consult with their physician and the manufacturer
of the medical implant prior to operating the electric tool.
6. Technical data
AC motor
Power S1
Idle speed n
Carbide saw blade
Number of teeth
Maximum tooth width of
saw blade
Swivel range
Mitre cut
Saw width at 90°
Saw width at 45°
Saw width at 2 x 45°
(double mitre cut)
Protection class
Weight
Laser class
Wavelength of laser
Laser output
Technical changes reserved!
The work piece must have a minimum height of 3
mm and a minimum width of 10 mm.
Make sure that the workpiece is always secured
with the clamping device.
Noise
Total noise values determined in accordance with
EN 62841.
Sound pressure level L
Uncertainty K
Sound power level L
Uncertainty K
www.scheppach.com
220 - 240 V 50Hz
0
ø 255 x ø 30 x 2.8 mm
0° to 45° to the left
pA
pA
WA
pA
2000 Watt
4500 rpm
48
3 mm
-45° / 0°/ +45°
340 x 90 mm
240 x 90 mm
240 x 45 mm
II
ca. 14.3 kg
2
650 nm
< 1 mW
101.6 dB
3 dB
114.6 dB
3 dB
