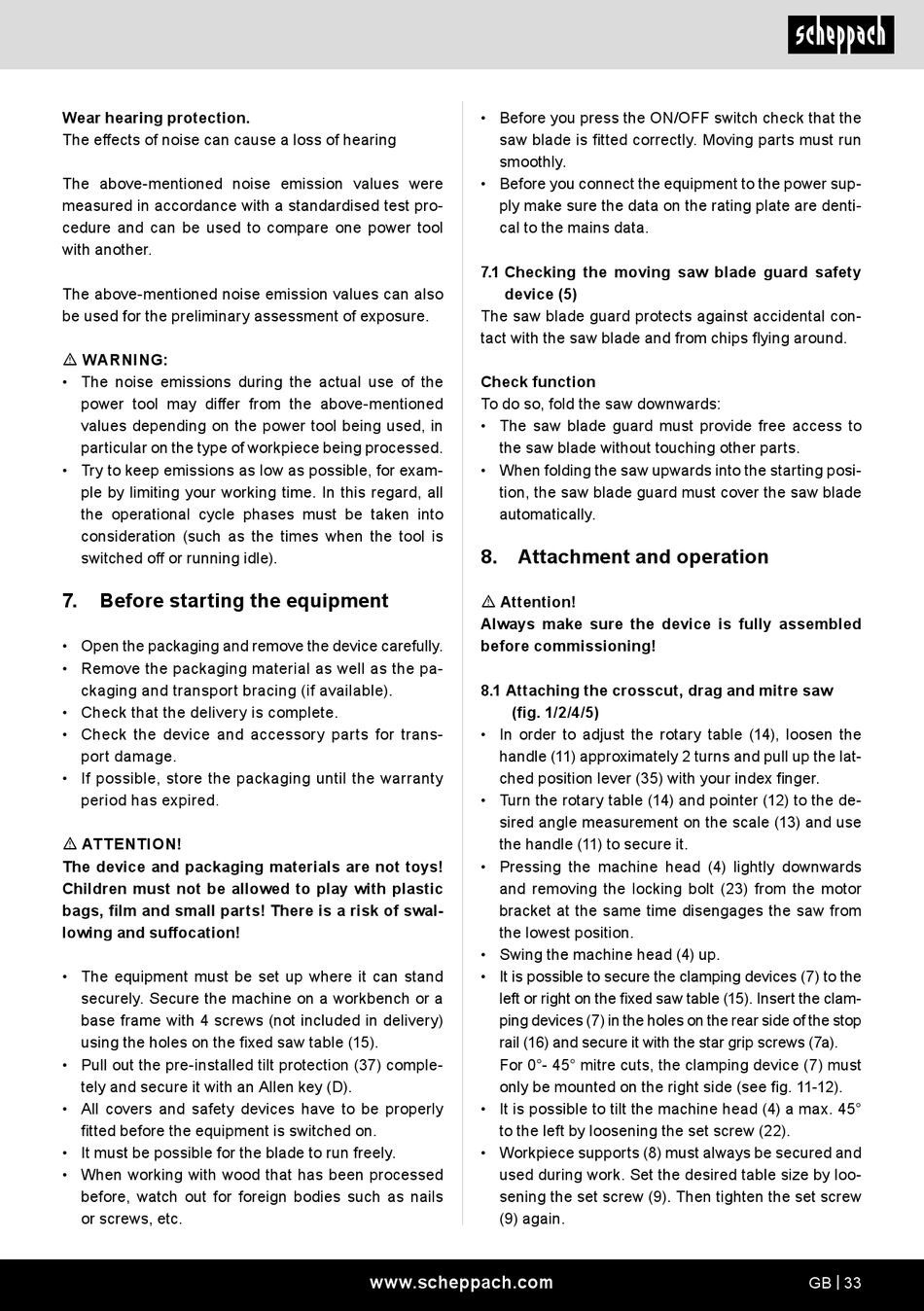

Scheppach HM254 Originalbetriebsanleitung Seite 33

Wear hearing protection.
The effects of noise can cause a loss of hearing
The above-mentioned noise emission values were
measured in accordance with a standardised test pro-
cedure and can be used to compare one power tool
with another.
The above-mentioned noise emission values can also
be used for the preliminary assessment of exposure.
m WARNING:
• The noise emissions during the actual use of the
power tool may differ from the above-mentioned
values depending on the power tool being used, in
particular on the type of workpiece being processed.
• Try to keep emissions as low as possible, for exam-
ple by limiting your working time. In this regard, all
the operational cycle phases must be taken into
consideration (such as the times when the tool is
switched off or running idle).
7. Before starting the equipment
• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the pa-
ckaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for trans-
port damage.
• If possible, store the packaging until the warranty
period has expired.
m ATTENTION!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
• The equipment must be set up where it can stand
securely. Secure the machine on a workbench or a
base frame with 4 screws (not included in delivery)
using the holes on the fixed saw table (15).
• Pull out the pre-installed tilt protection (37) comple-
tely and secure it with an Allen key (D).
• All covers and safety devices have to be properly
fitted before the equipment is switched on.
• It must be possible for the blade to run freely.
• When working with wood that has been processed
before, watch out for foreign bodies such as nails
or screws, etc.
• Before you press the ON/OFF switch check that the
saw blade is fitted correctly. Moving parts must run
smoothly.
• Before you connect the equipment to the power sup-
ply make sure the data on the rating plate are denti-
cal to the mains data.
7.1 Checking the moving saw blade guard safety
device (5)
The saw blade guard protects against accidental con-
tact with the saw blade and from chips flying around.
Check function
To do so, fold the saw downwards:
• The saw blade guard must provide free access to
the saw blade without touching other parts.
• When folding the saw upwards into the starting posi-
tion, the saw blade guard must cover the saw blade
automatically.
8. Attachment and operation
m Attention!
Always make sure the device is fully assembled
before commissioning!
8.1 Attaching the crosscut, drag and mitre saw
(fig. 1/2/4/5)
• In order to adjust the rotary table (14), loosen the
handle (11) approximately 2 turns and pull up the lat-
ched position lever (35) with your index finger.
• Turn the rotary table (14) and pointer (12) to the de-
sired angle measurement on the scale (13) and use
the handle (11) to secure it.
• Pressing the machine head (4) lightly downwards
and removing the locking bolt (23) from the motor
bracket at the same time disengages the saw from
the lowest position.
• Swing the machine head (4) up.
• It is possible to secure the clamping devices (7) to the
left or right on the fixed saw table (15). Insert the clam-
ping devices (7) in the holes on the rear side of the stop
rail (16) and secure it with the star grip screws (7a).
For 0°- 45° mitre cuts, the clamping device (7) must
only be mounted on the right side (see fig. 11-12).
• It is possible to tilt the machine head (4) a max. 45°
to the left by loosening the set screw (22).
• Workpiece supports (8) must always be secured and
used during work. Set the desired table size by loo-
sening the set screw (9). Then tighten the set screw
(9) again.
