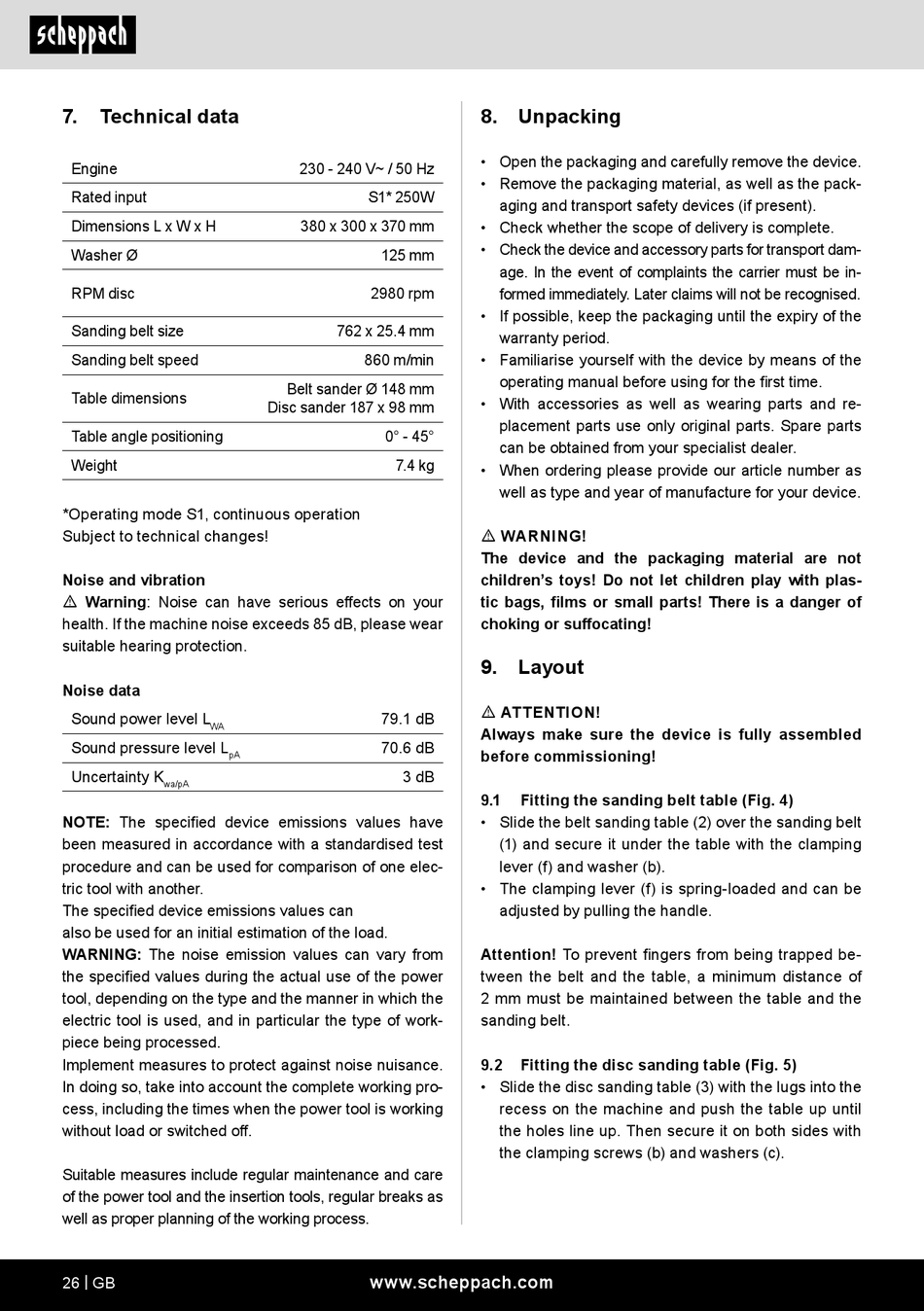

Scheppach BTS700 Originalbetriebsanleitung Seite 26

7. Technical data
Engine
Rated input
Dimensions L x W x H
Washer Ø
RPM disc
Sanding belt size
Sanding belt speed
Table dimensions
Table angle positioning
Weight
*Operating mode S1, continuous operation
Subject to technical changes!
Noise and vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please wear
suitable hearing protection.
Noise data
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
wa/pA
NOTE: The specified device emissions values have
been measured in accordance with a standardised test
procedure and can be used for comparison of one elec-
tric tool with another.
The specified device emissions values can
also be used for an initial estimation of the load.
WARNING: The noise emission values can vary from
the specified values during the actual use of the power
tool, depending on the type and the manner in which the
electric tool is used, and in particular the type of work-
piece being processed.
Implement measures to protect against noise nuisance.
In doing so, take into account the complete working pro-
cess, including the times when the power tool is working
without load or switched off.
Suitable measures include regular maintenance and care
of the power tool and the insertion tools, regular breaks as
well as proper planning of the working process.
26 | GB
230 - 240 V~ / 50 Hz
S1* 250W
380 x 300 x 370 mm
125 mm
2980 rpm
762 x 25.4 mm
860 m/min
Belt sander Ø 148 mm
Disc sander 187 x 98 mm
0° - 45°
7.4 kg
79.1 dB
70.6 dB
3 dB
www.scheppach.com
8. Unpacking
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport dam-
age. In the event of complaints the carrier must be in-
formed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the device by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your device.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
9. Layout
m ATTENTION!
Always make sure the device is fully assembled
before commissioning!
9.1 Fitting the sanding belt table (Fig. 4)
• Slide the belt sanding table (2) over the sanding belt
(1) and secure it under the table with the clamping
lever (f) and washer (b).
• The clamping lever (f) is spring-loaded and can be
adjusted by pulling the handle.
Attention! To prevent fingers from being trapped be-
tween the belt and the table, a minimum distance of
2 mm must be maintained between the table and the
sanding belt.
9.2 Fitting the disc sanding table (Fig. 5)
• Slide the disc sanding table (3) with the lugs into the
recess on the machine and push the table up until
the holes line up. Then secure it on both sides with
the clamping screws (b) and washers (c).
