Behringer VOCODER VC16 Schnellstartanleitung Seite 9

16
VOCODER VC16

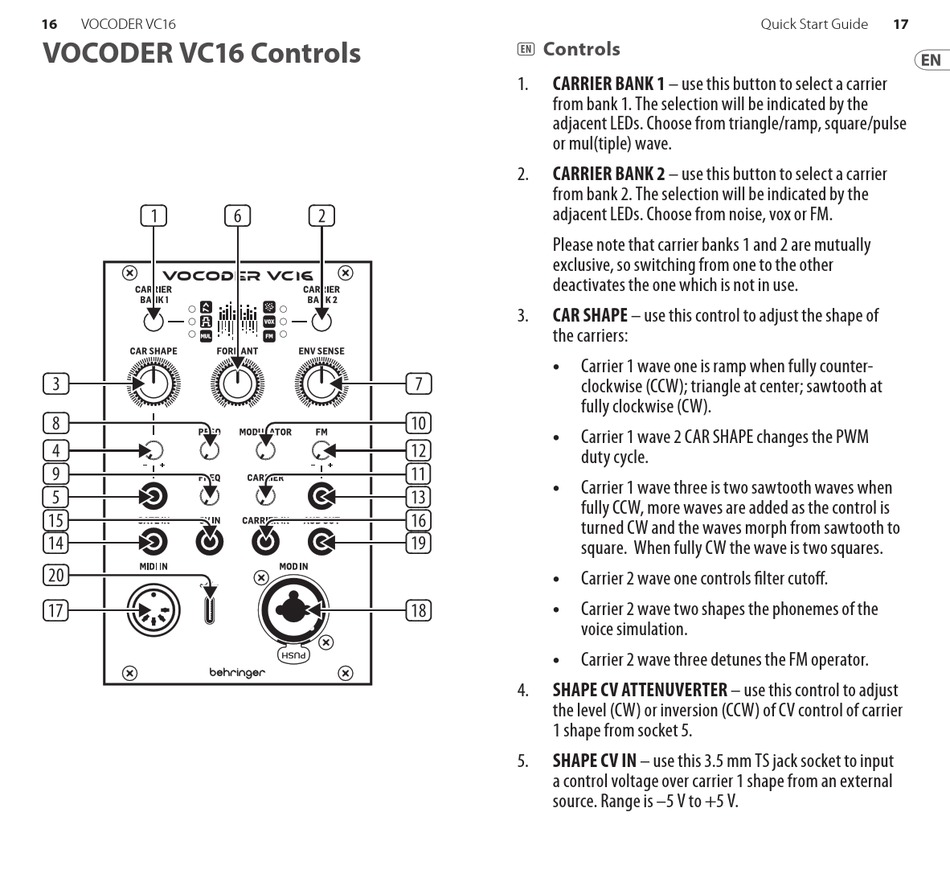

VOCODER VC16 Controls
(1)
(3)
(8)
(4)
(9)
(5)
(15)
(14)
(20)
(17)
(6) (2)
Controls
(EN)
1. CARRIER BANK 1 – use this button to select a carrier
from bank 1. The selection will be indicated by the
adjacent LEDs. Choose from triangle/ramp, square/pulse
or mul(tiple) wave.
CARRIER BANK 2 – use this button to select a carrier
2.
from bank 2. The selection will be indicated by the
adjacent LEDs. Choose from noise, vox or FM.
Please note that carrier banks 1 and 2 are mutually
exclusive, so switching from one to the other
deactivates the one which is not in use.
3. CAR SHAPE – use this control to adjust the shape of
the carriers:
•
Carrier 1 wave one is ramp when fully counter-
(7)
clockwise (CCW); triangle at center; sawtooth at
fully clockwise (CW).
(10)
•
Carrier 1 wave 2 CAR SHAPE changes the PWM
(12)
duty cycle.
(11)
•
Carrier 1 wave three is two sawtooth waves when
(13)
fully CCW, more waves are added as the control is
(16)
turned CW and the waves morph from sawtooth to
(19)
square. When fully CW the wave is two squares.
•
Carrier 2 wave one controls filter cutoff.
•
Carrier 2 wave two shapes the phonemes of the
(18)
voice simulation.
•
Carrier 2 wave three detunes the FM operator.
SHAPE CV ATTENUVERTER – use this control to adjust
4.
the level (CW) or inversion (CCW) of CV control of carrier
1 shape from socket 5.
5. SHAPE CV IN – use this 3.5 mm TS jack socket to input
a control voltage over carrier 1 shape from an external
source. Range is –5 V to +5 V.
17
Quick Start Guide
