05 - Preparation for installation
Installation should be carried out after disconnecting the power supply by acting on the
upstream switch.

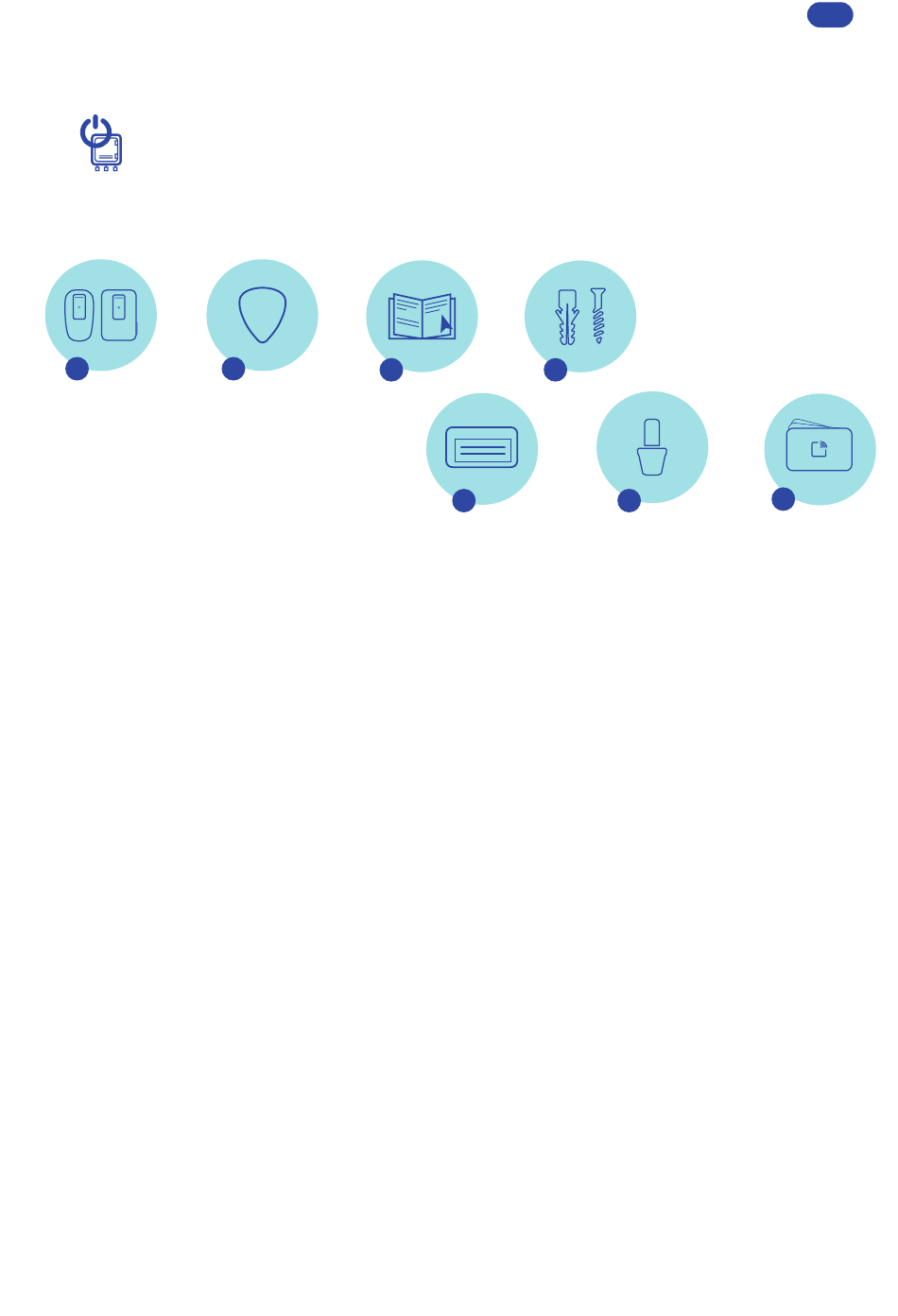

05.1 - Package contents
1
Inside the package is provided:
1. Dazebox
2. Opening key (guitar pick)
3. Installation manual
4. Ø5 screws and Ø8 dowels
5. Serial card and PUK
6. Bushing terminals
7. 3 RFID cards
05.2 - Equipment needed
To install Dazebox Home, the following equipment is required, which is not supplied:
1. Drill with wall bit Ø8 mm
2. Pencil, hammer, spirit level, tape measure
3. Phillips screwdriver
06 - Installation
The equipment's power supply must remain turned off throughout this entire phase. Failure to follow these instructions may
result in serious harm to people and property, and even death.
The following images are for illustrative purposes and may not show all internal components present in the product.
Installation requirements
Dazebox Home can be used in installations with the following earthing systems: TT, TN. For the correct operation of the char-
ger with all vehicles, it is necessary to verify that the earth resistance of the system is less than 100 Ω.
The Dazebox power supply line must be dedicated and protected by:
1. Type A residual current circuit breaker, trip current of 30 mA;
2. Type C circuit breaker.
The amperage of the protection devices must be sized according to the installation where the wallbox is mounted.
IEC EN 60364-7-722 or equivalent national standards provide additional requirements for the electrical installation dedica-
ted to powering the product. It is recommended to protect the system with a Surge Protective Device (SPD). The SPD does
not need to be part of the charging station, nor does it need to be "dedicated.
Note: Single-phase Dazebox Home versions are only compatible with single-phase systems, while three-phase versions are
only compatible with three-phase systems.
2
3 4
5
4. TX10 torx spanner
5. Crimping pliers for ferrules and RJ45 terminals
(for Power Manager installation)
