DAZE Dazebox Home Installationsanleitung Seite 7

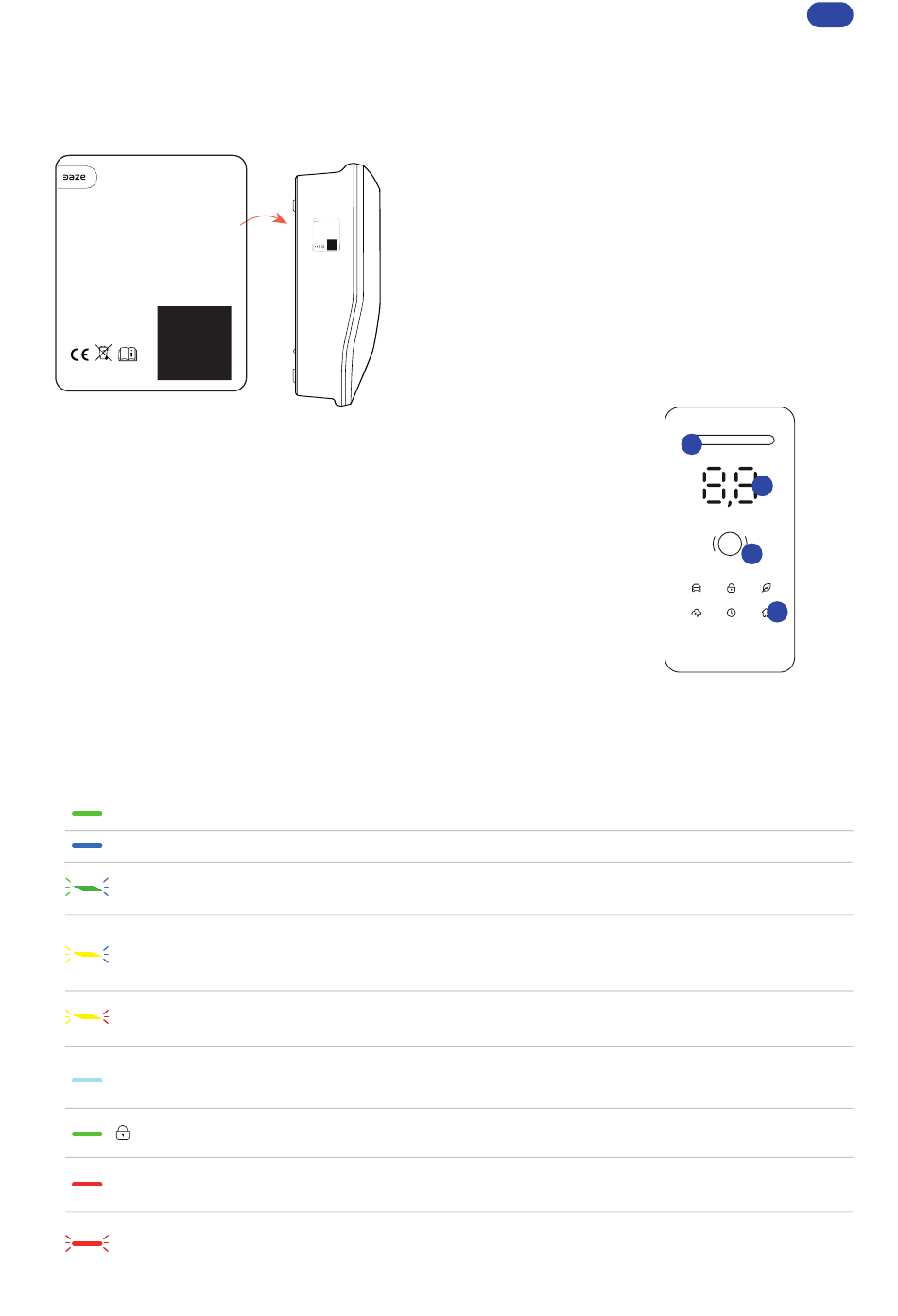

02 - Rating plate
Dazebox Home
Via Aldo Moro,2C
24030 Almenno S.B. - Italia
For use with EV
PN: xxxxxxxxxx
SN: xxxxxxxxxxx
TYPE: EV Supply Equipment
400/230Vac
32Amax
@25°C
IP66
1P/3P+N+PE 50Hz
QR SN
Made in Italy
03 - Screen interface
1. LED bar: status indicator
2. Digital numeric interface: charging power (kW) or delivered
energy (kWh) indicator
3. RFID reader
4. Backlight icons
03.1 - LED bar
Led DB Home status
1
Stand-by
Charging
2
Waiting for vehicle
3
4
Charging suspended
5 Cooling down
6 Software update
7 Charging locked
+
8 Out of service
9
Dazebox Share Home
Via Aldo Moro,2C
24030 Almenno S.B. - Italia
For use with EV
PN: xxxxxxxxxx
SN: xxxxxxxxxxx
TYPE: EV Supply Equipment
400/230Vac
32Amax
@25°C
IP66
1P/3P+N+PE 50Hz
QR SN
Made in Italy
Vehicle connected and charging
- Vehicle connected but not charging
- Vehicle fully charged
Charging suspended due to excessive
Installing the software update;
follow instructions on the App
Waiting for charging activation
Not communicating with the OCPP
server or the master charger
Potential malfunction; check the
Error
error code on the display and refer
The model iteration of Dazebox Home can
be verified by reading the product data plate,
which is located on the side of the product (as
shown in the image). In case of product support
request, it's helpful to know the serial number
(SN) of the charger.
Description
Ready to charge
- Insufficient power
- Suspended by user
internal temperature
via App or RFID
to chapter 13
1
kW
3
Load Balancing
Ready to charge
Vehicle connected and charging
- Vehicle connected but not charging
- Vehicle fully charged
- Calculating available power
- Suspended by user
- Vehicle excluded from power allocation,
possibly because it is fully charged
Charging suspended due to excessive
internal temperature
Installing the software update;
follow instructions on the App
Waiting for charging activation
via App or RFID
Not communicating with the OCPP
server or the master charger
Potential malfunction; check the
error code on the display and refer
to chapter 13
EN
2
4
7.
