08 - Connections
T
Prepare lines, neutral and earth with the bushing terminals provided before making connections.
Note: Failure to comply with this requirement will invalidate the product warranty. Refer to Chapter 15 - Warranty.
Home T

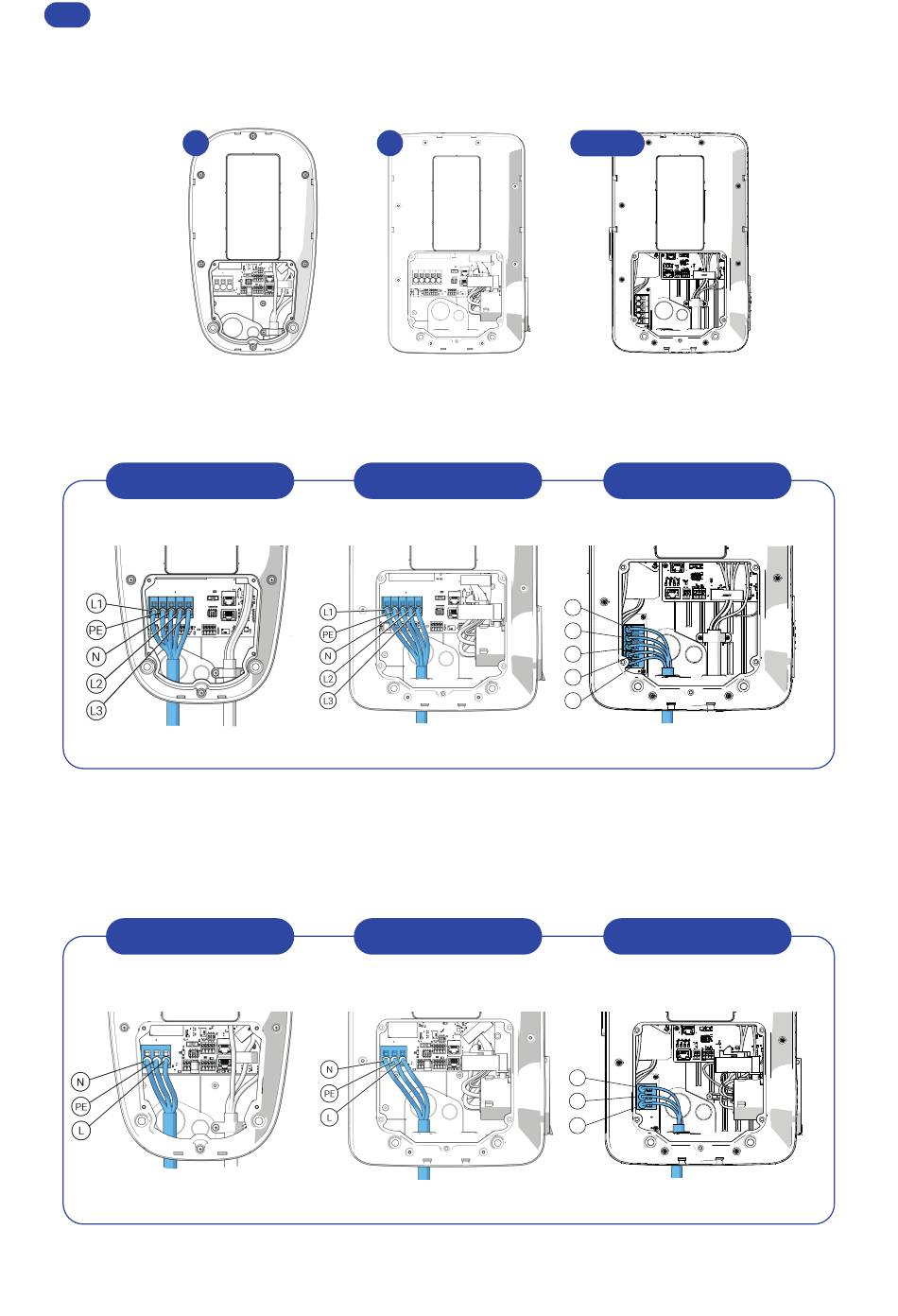

For three-phase Dazebox Home connect line 1 (L1), line 2 (L2), line 3 (L3), neutral (N) and earth (PE), as indicated on the board, to
the spring terminals without the use of tools.
Note: In the case of Load Balancing installation, you may be asked to rotate lines L1, L2, L3 between loaders, as indicated in
Chapter 10.2.
Home T
For single-phase Dazebox Home connect line (L1) and neutral (N), without inverting them; connect earth (PE).
