Before using this equipment, record the product identification information from the ID label in the 'Inspection and
Maintenance Log' at the back of this manual.
System Specifications:
Anchorage:
The anchorage structure for the lanyard must be capable of supporting loads up to 2,700 lbf (12
kN) for metal anchors, 4,047 lbf (18 kN) for textile anchors, or two times the maximum arresting
force for certified anchorages.
Service Temperature: -31°F to 135°F (-35°C to 57°C)
Standards:
Each product model is certified to, or conforms with, the applicable standards and regulations listed
within Figure 1. If none are specified, then all standards and regulations listed on the cover apply.
Component Specifications:
Figure 3
Component
Reference
A
Anchoring Connector
B
Harness Connector
C
Energy Absorber
Connector Specifications:
Figure 1
Model Number
Reference
C1
9509437
C2
AJ501/0
C3
AJ514/0
C4
AJ595/0
C5
AJ527/0
C6
2000177
C1
C2
Lanyard Leg Material:
Figure 1
Description
Reference
PW1
1.38 in. (35 mm) elastic polyester webbing
NR1
0.41 in. (10.5 mm) nylon rope
Performance Specifications
Maximum Arresting Force:

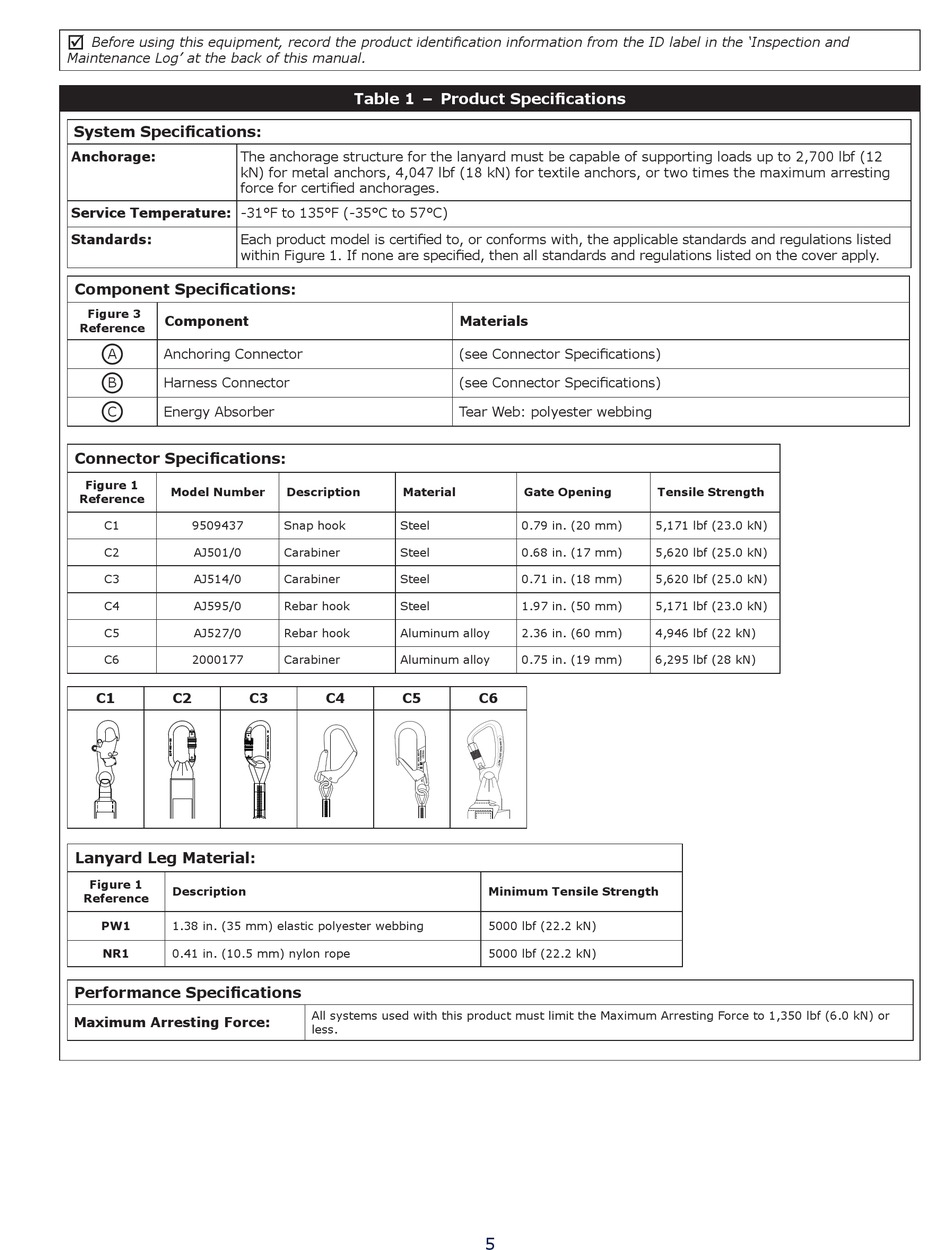

Table 1 – Product Specifications
Description
Material
Snap hook
Steel
Carabiner
Steel
Carabiner
Steel
Rebar hook
Steel
Rebar hook
Aluminum alloy
Carabiner
Aluminum alloy
C3
C4
C5
All systems used with this product must limit the Maximum Arresting Force to 1,350 lbf (6.0 kN) or
less.
Materials
(see Connector Specifications)
(see Connector Specifications)
Tear Web: polyester webbing
Gate Opening
0.79 in. (20 mm)
0.68 in. (17 mm)
0.71 in. (18 mm)
1.97 in. (50 mm)
2.36 in. (60 mm)
0.75 in. (19 mm)
C6
Minimum Tensile Strength
5000 lbf (22.2 kN)
5000 lbf (22.2 kN)
5
Tensile Strength
5,171 lbf (23.0 kN)
5,620 lbf (25.0 kN)
5,620 lbf (25.0 kN)
5,171 lbf (23.0 kN)
4,946 lbf (22 kN)
6,295 lbf (28 kN)
