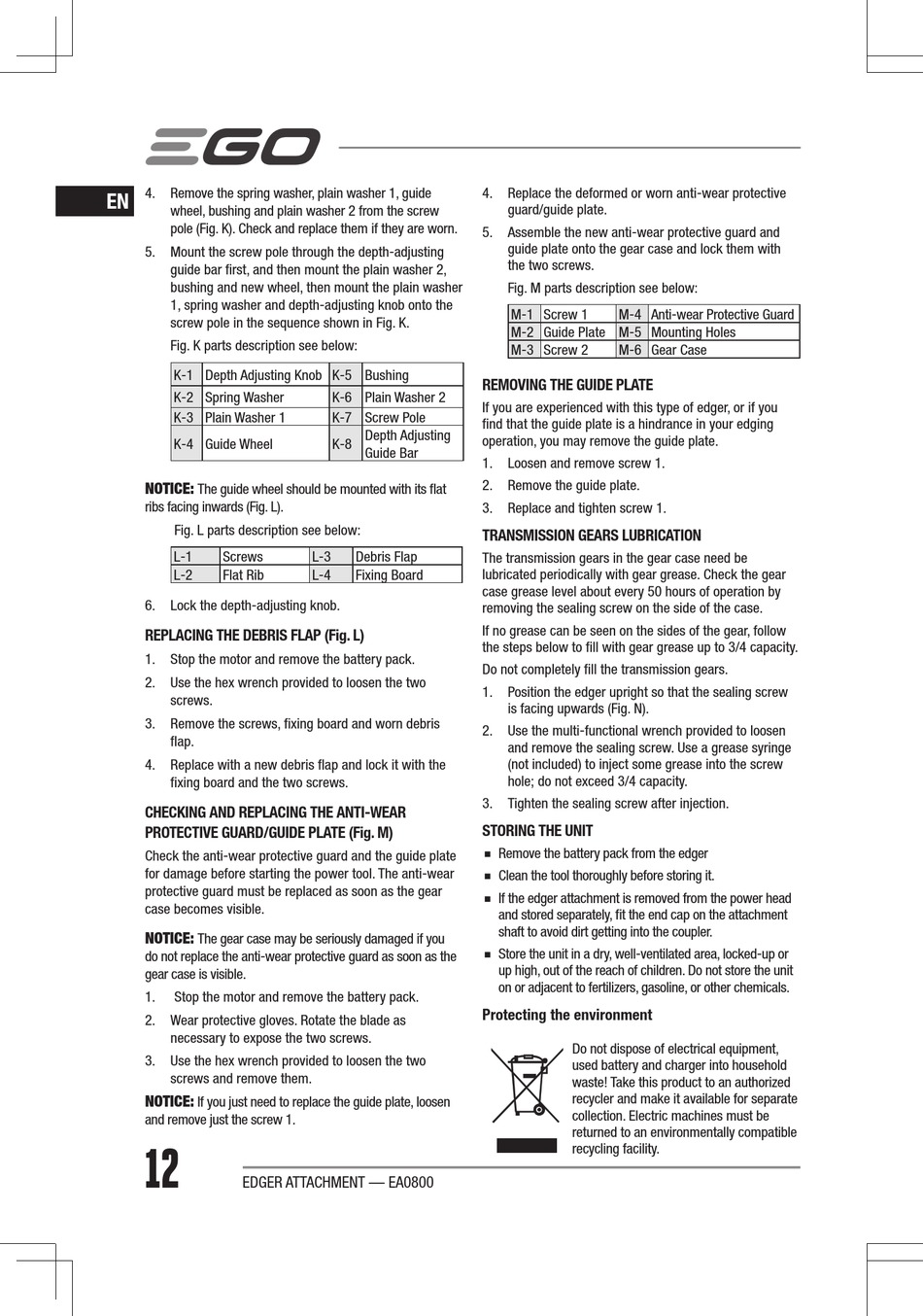

4. Remove the spring washer, plain washer 1, guide
EN
wheel, bushing and plain washer 2 from the screw
pole (Fig. K). Check and replace them if they are worn.
5. Mount the screw pole through the depth-adjusting
guide bar first, and then mount the plain washer 2,
bushing and new wheel, then mount the plain washer
1, spring washer and depth-adjusting knob onto the
screw pole in the sequence shown in Fig. K.
Fig. K parts description see below:
K-1 Depth Adjusting Knob K-5 Bushing
K-2 Spring Washer
K-3 Plain Washer 1
K-4 Guide Wheel
NOTICE:
The guide wheel should be mounted with its flat
ribs facing inwards (Fig. L).
Fig. L parts description see below:
L-1
Screws
L-2
Flat Rib
6. Lock the depth-adjusting knob.
REPLACING THE DEBRIS FLAP (Fig. L)
1. Stop the motor and remove the battery pack.
2. Use the hex wrench provided to loosen the two
screws.
3. Remove the screws, fixing board and worn debris
flap.
4. Replace with a new debris flap and lock it with the
fixing board and the two screws.
CHECKING AND REPLACING THE ANTI-WEAR
PROTECTIVE GUARD/GUIDE PLATE (Fig. M)
Check the anti-wear protective guard and the guide plate
for damage before starting the power tool. The anti-wear
protective guard must be replaced as soon as the gear
case becomes visible.
NOTICE:
The gear case may be seriously damaged if you
do not replace the anti-wear protective guard as soon as the
gear case is visible.
1.
Stop the motor and remove the battery pack.
2. Wear protective gloves. Rotate the blade as
necessary to expose the two screws.
3. Use the hex wrench provided to loosen the two
screws and remove them.
NOTICE:
If you just need to replace the guide plate, loosen
and remove just the screw 1.
12
EDGER ATTACHMENT — EA0800
4. Replace the deformed or worn anti-wear protective
5. Assemble the new anti-wear protective guard and
REMOVING THE GUIDE PLATE
K-6 Plain Washer 2
If you are experienced with this type of edger, or if you
K-7 Screw Pole
find that the guide plate is a hindrance in your edging
Depth Adjusting
operation, you may remove the guide plate.
K-8
Guide Bar
1. Loosen and remove screw 1.
2. Remove the guide plate.
3. Replace and tighten screw 1.
TRANSMISSION GEARS LUBRICATION
L-3
Debris Flap
The transmission gears in the gear case need be
L-4
Fixing Board
lubricated periodically with gear grease. Check the gear
case grease level about every 50 hours of operation by
removing the sealing screw on the side of the case.
If no grease can be seen on the sides of the gear, follow
the steps below to fill with gear grease up to 3/4 capacity.
Do not completely fill the transmission gears.
1. Position the edger upright so that the sealing screw
2. Use the multi-functional wrench provided to loosen
3. Tighten the sealing screw after injection.
STORING THE UNIT
◾
◾
◾
◾
Protecting the environment
guard/guide plate.
guide plate onto the gear case and lock them with
the two screws.
Fig. M parts description see below:
M-1 Screw 1
M-4 Anti-wear Protective Guard
M-2 Guide Plate M-5 Mounting Holes
M-3 Screw 2
M-6 Gear Case
is facing upwards (Fig. N).
and remove the sealing screw. Use a grease syringe
(not included) to inject some grease into the screw
hole; do not exceed 3/4 capacity.
Remove the battery pack from the edger
Clean the tool thoroughly before storing it.
If the edger attachment is removed from the power head
and stored separately, fit the end cap on the attachment
shaft to avoid dirt getting into the coupler.
Store the unit in a dry, well-ventilated area, locked-up or
up high, out of the reach of children. Do not store the unit
on or adjacent to fertilizers, gasoline, or other chemicals.
Do not dispose of electrical equipment,
used battery and charger into household
waste! Take this product to an authorized
recycler and make it available for separate
collection. Electric machines must be
returned to an environmentally compatible
recycling facility.
