• N AND PE CABLES ARE SEPARATELY WIRED IN THE MAIN PANEL.
EcoFlow PowerOcean
Plus Hybrid Inverter
BAT
Battery
PV string
PV

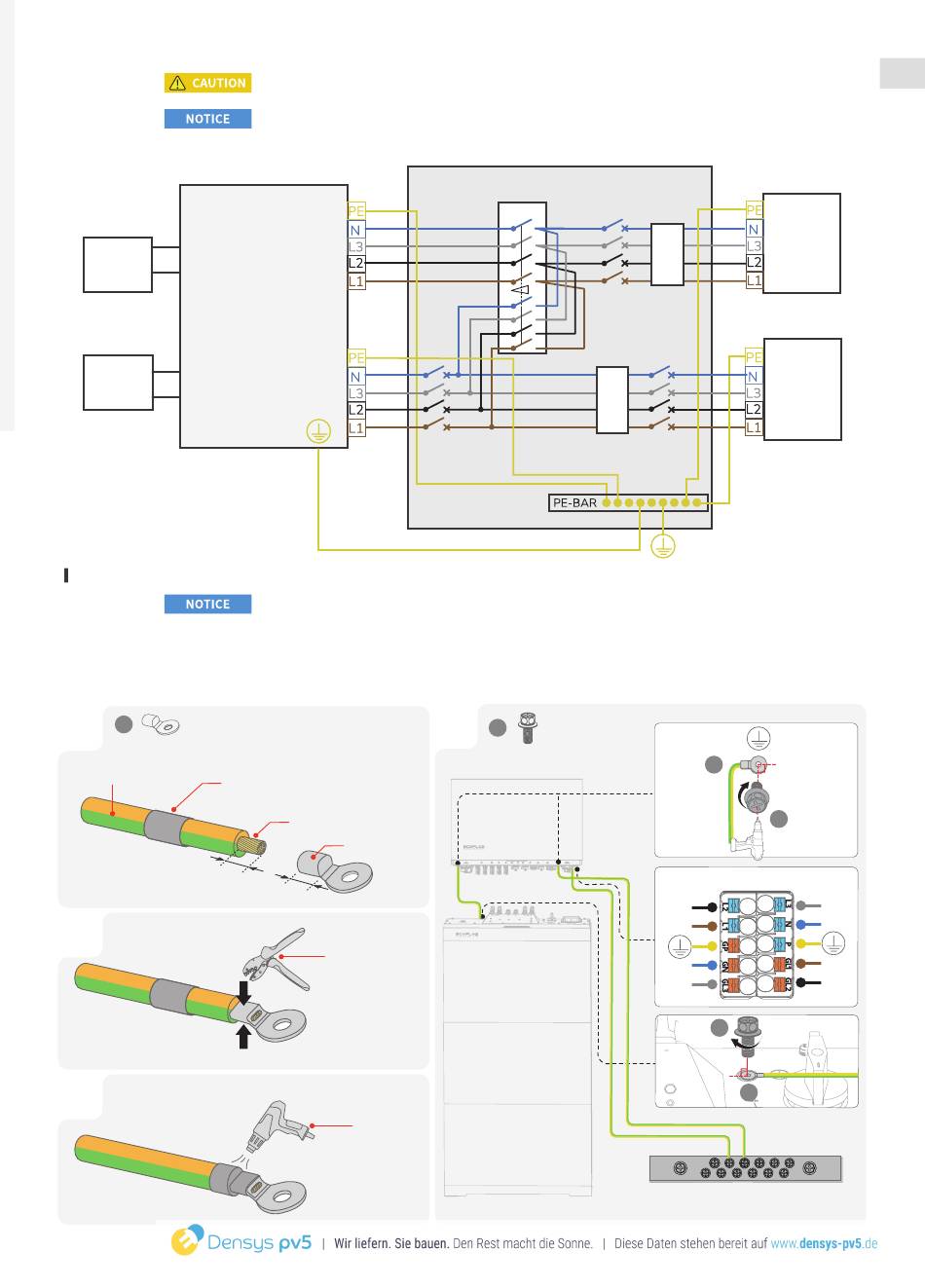

Connecting PE Cables
1
×3
A13
PE Cable
Heat-shrink tubing
L = L1+3 mm
2
3
• Do not connect the N busbar to the N-wire between the inverter and grid, otherwise the
inverter operation may be abnormal.
• Do not connect the N-wires of the AC-backup side and AC-grid side, otherwise the system may
operate abnormally. If connected in some houses, try disconnecting the N busbar from the grid
and connecting the AC-GPID N terminal of inverter directly to the N terminal of the grid.
BACKUP
GRID
• Ensure that the PE cable is connected securely.
• Wrap the wire crimping area with heat shrink tubing or insulation tape. The heat shrink tubing is
used as an example.
• When using a heat gun, protect the equipment from being scorched.
• It is recommended that silica gel or paint be used around the ground terminal after the PE cable
is connected.
Cable core
(10 mm² copper conductor)
OT terminal
L1
Crimping tool
Heat gun
Distribution box
MTS
RCD
4
×2
A11
Backup
load
RCD
Utility
grid
A13
90°
2.5 Nm
A11
BACKUP/GRID terminal
2.5 Nm
A11
90°
A13
PE-busbar
