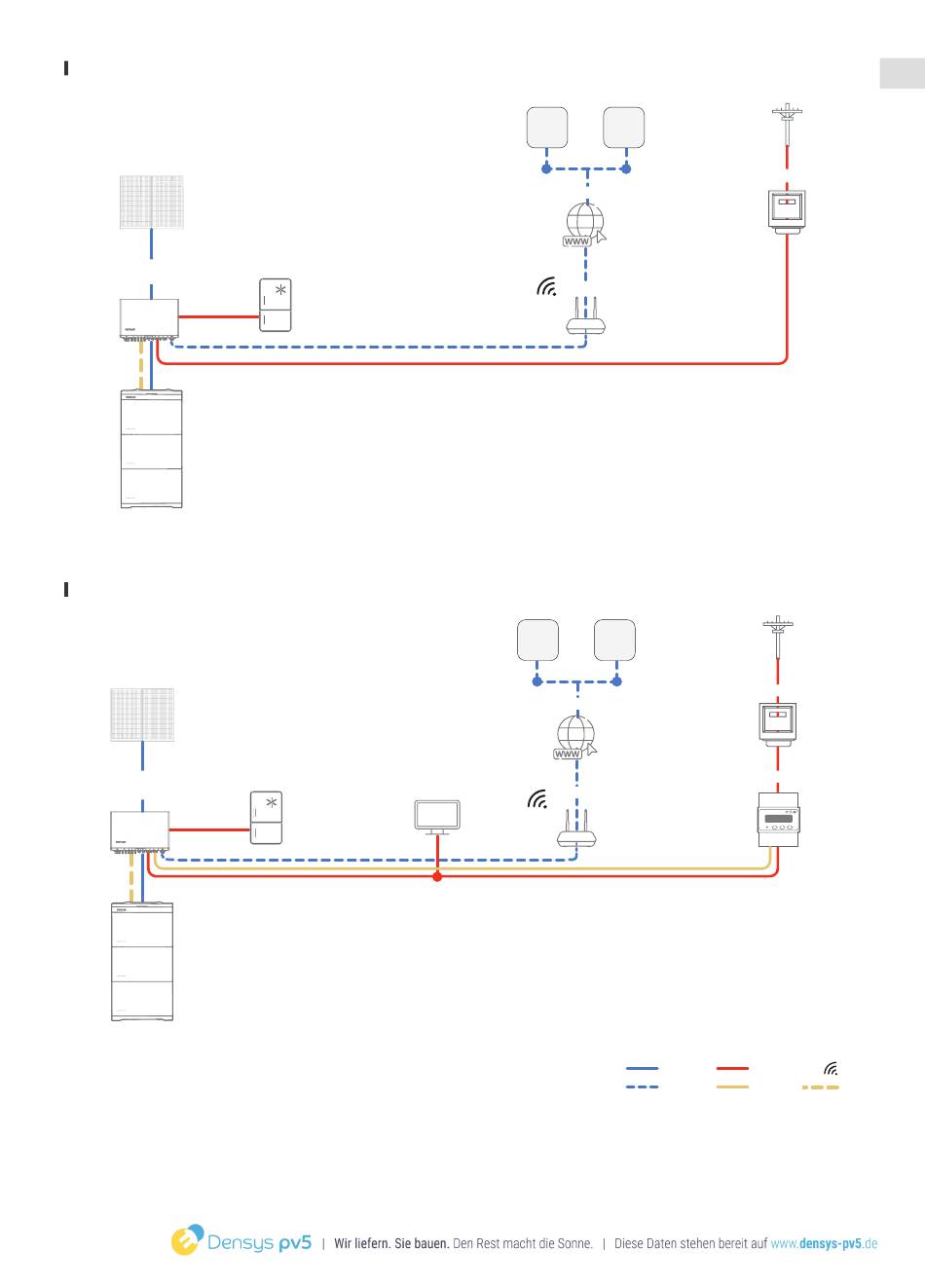

Whole Home Backup System
PV STRING
EcoFlow PowerOcean
BACKUP LOAD
Plus Hybrid Inverter
EcoFlow PowerOcean
LFP Battery
Partial Home Backup System
PV STRING
EcoFlow PowerOcean BACKUP LOAD
Plus Hybrid Inverter
EcoFlow PowerOcean
LFP Battery
APP
APP
NON-CONTROLLABLE
LOAD
WEB PORTAL
INTERNET
ROUTER
WEB PORTAL
INTERNET
SMART METER from EcoFlow
ROUTER
DC
Ethernet
en
UTILITY GRID
UTILITY METER
UTILITY GRID
UTILITY METER
AC WIFI
RS485 CAN
