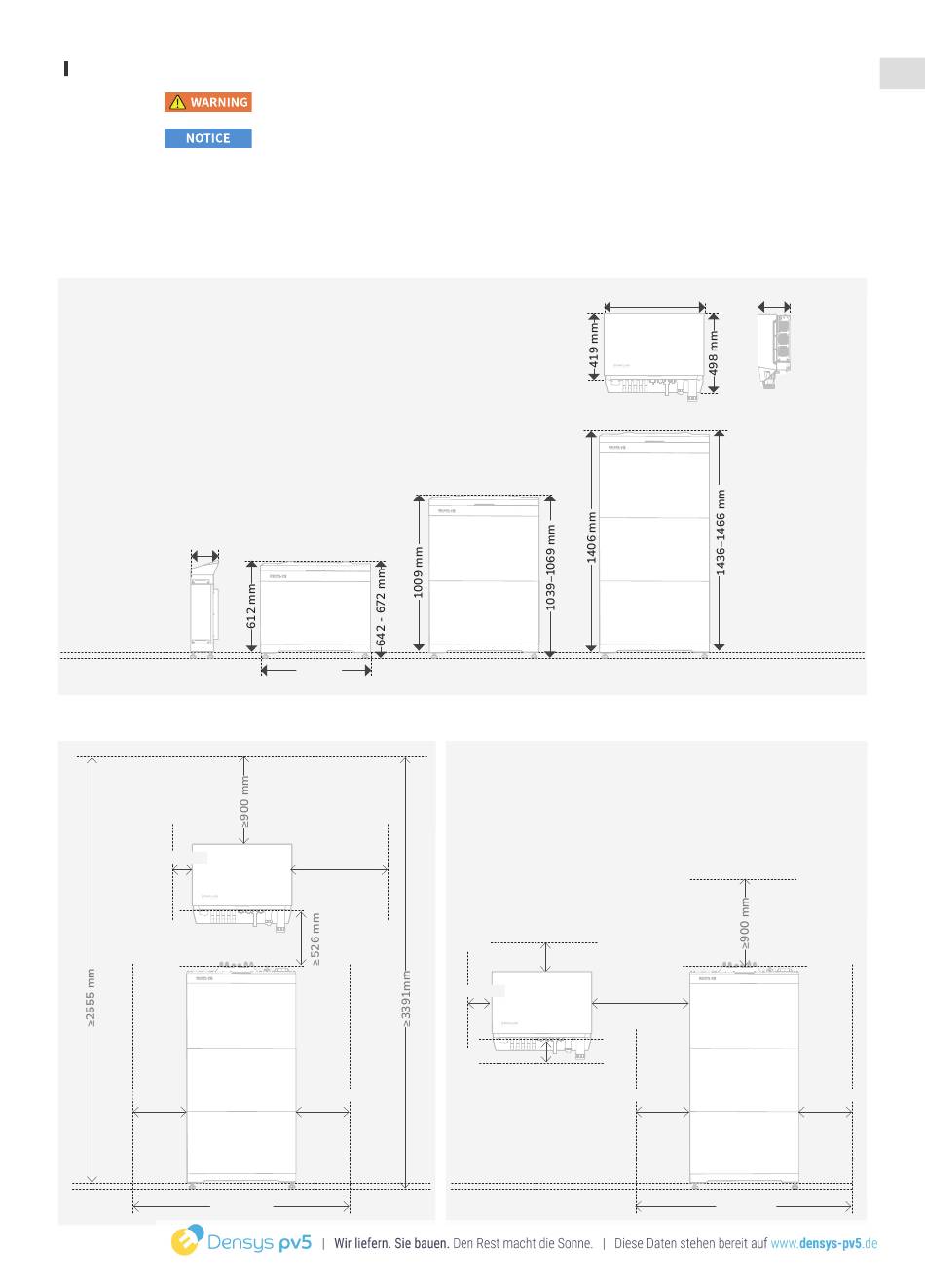

Installation Space Requirements
• DIMENSIONS
185 mm
• CLEARANCE WHEN THE INVERTER ON THE TOP OF
BATTERIES
≥200 mm
≥600 mm
≥1880 mm
• Reserve enough clearance around equipments to ensure sufficient space for installation and
heat dissipation.
• Ensure there is enough space on both sides of the battery to facilitate the locking operation of
the screws on the side of the battery.
• When installing multiple inverters, install them in horizontal mode if sufficient space is available
and install them in triangle mode if no sufficient space is available. Stacked installation is not
allowed.
• Battery system installed in any corridor, hallway, or lobby shall ensure sufficient clearance from the
battery system for safe egress and be no less than 1 m.
10,2 kWh
5,1 kWh
680 mm
≥1000 mm
≥600 mm
15,3 kWh
• CLEARANCE WHEN THE INVERTER ON THE
SIDE OF BATTERIES
≥300 mm
≥200 mm
≥1000 mm
≥300 mm
636 mm
235 mm
≥600 mm
≥600 mm
≥1880 mm
