Connecting Smart Mater
1
A7
❶
4

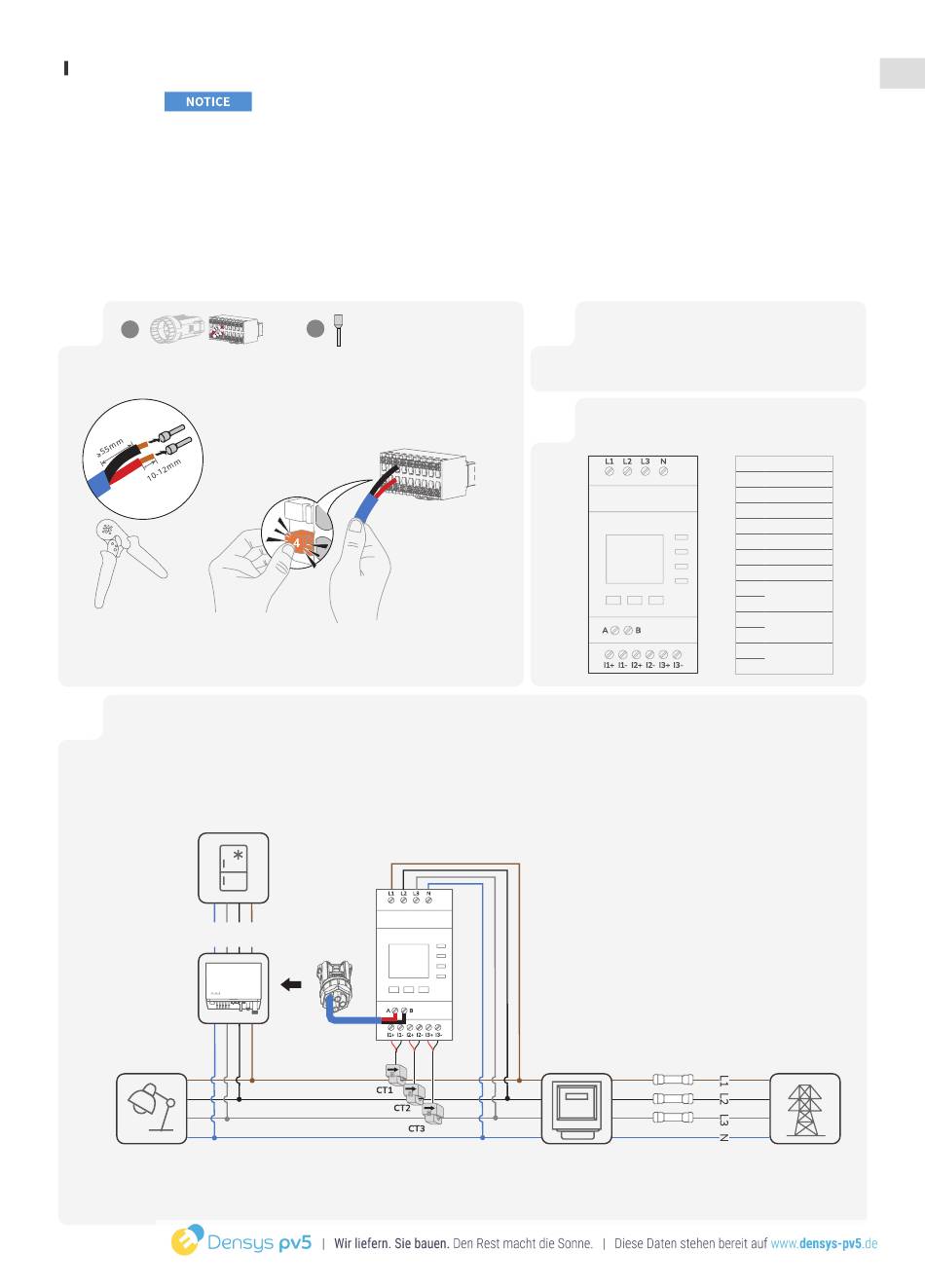

COMMUNICATION WIRING DIAGRAM
Backup Load
EcoFlow PowerOcean
Plus Hybrid Inverter
Non-controllable
loads
• It is recommend to use of CAT5 or higher rating network cable.
• Smart meter is sold separately, which has been preset parameters before delivered. Do not
modify the relevant parameters.
• The compatibility of this product with smart meters may vary by regions and versions. For
detailed instructions on the installation and wiring scheme of the smart meter for this product,
please refer to the guide that comes together with the meter.
• The cable colors shown in the figures are for reference only. Select an appropriate cable
according to the local standards.
×1
A15
×2
1
AC Meter
13: 485_A_1
14: 485_B_1
❷
AC Coupled Meter
15: 485_A_2
16: 485_B_2
COM-port
2
METER SAMPLING
Find the home mains and connect the smart
meter as shown in the diagram.
METER COMMUNICATION
3
Find communication port A,B on the meter and
connect with the inverter.
Utility meter
Fuse
en
L1
Grid L1
L2
Grid L2
L3
Grid L3
N
Grid N
A
RS485A
B
RS485B
I1+
Grid L1 CT
I1-
I2+
Grid L2 CT
I2-
I3+
Grid L3 CT
I3-
Utility grid
