LEGEND
1
Ground cable
10 mm²
2
PV input cable
4-6 mm² with a rated voltage greater than or
equal to 1000V DC
3
Battery power cable
10 mm² with a rated voltage greater than or equal
to 1000V DC
4
Battery communication cable
Shield CAT 5E 8*0.2mm²
5
(Optional) Ethernet cable
Cat 5E or higher shielded network cable

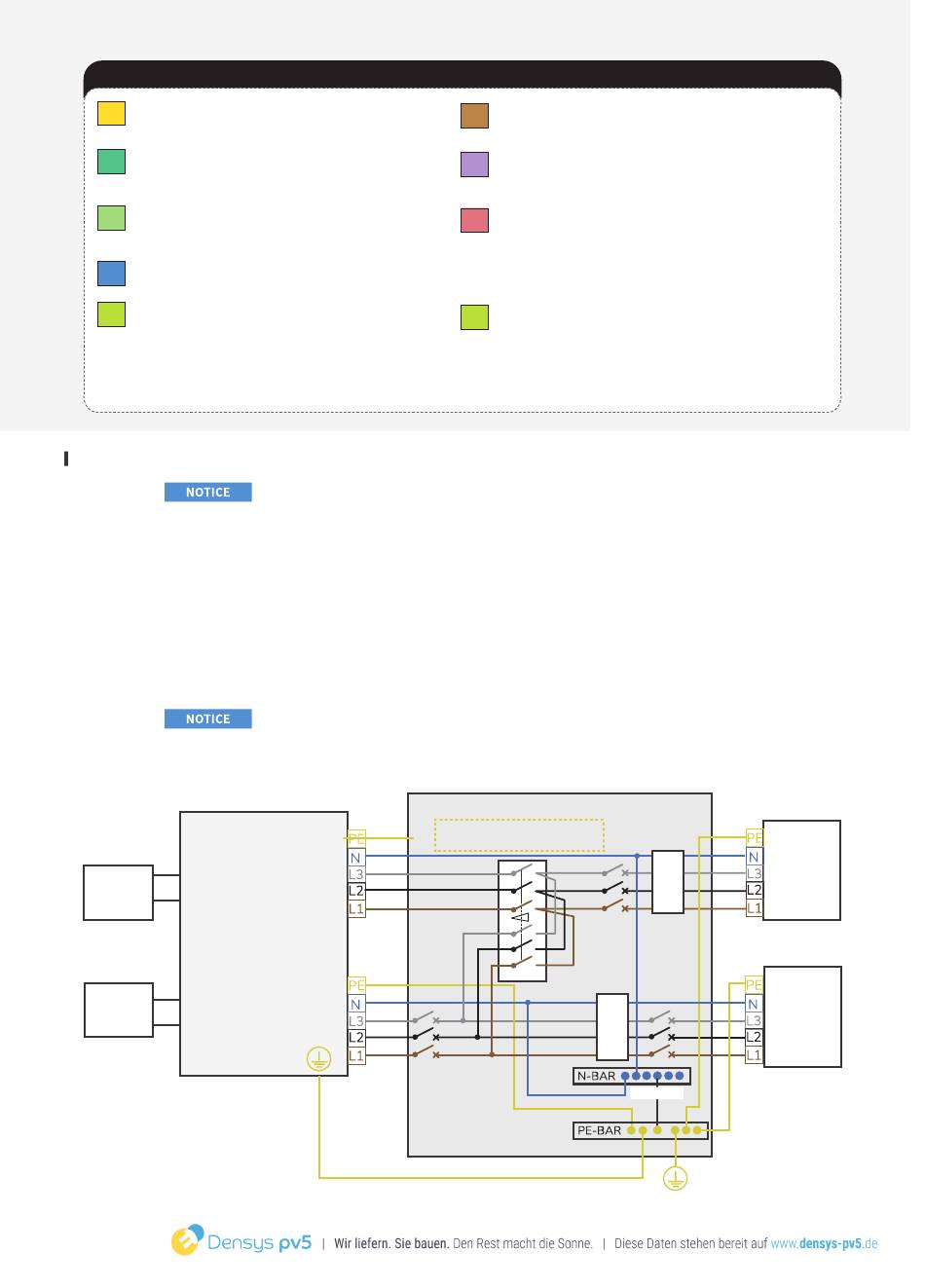

Wiring Diagram
• N AND PE CABLES ARE CONNECTED TOGETHER IN THE MAIN PANEL FOR WIRING.
EcoFlow PowerOcean
Plus Hybrid Inverter
BAT
Battery
PV string
PV
4 0 |
• N and PE wiring via GRID and BACKUP terminals of the inverter vary based on the regulation
requirements of different regions. Refer to the specific requirements of local regulations.
• A 63A Manual Transfer Switch (MTS) is highly recommended for switching the power supply
between the grid and the inverter in the whole home backup system.
• Installing surge protective devices (SPDs) before connecting the PV strings and before
connecting to the power grid are recommended.
• The N-PE connection should be longer than 10 m.
• RCDs (Type A) with a rated residual operating current are recommended to install, 300mA on
the AC-GRID side, and 30mA on the AC-BACKUP side, while the use of an RCD with a lower
rated residual operating current is also permitted if it is required by the specific local electrical
codes.
• For Australia and New Zealand, the N cable of GRID side and BACK-UP side must be connected
together according to the wiring rules AS/NZS_3000. Otherwise BACK-UP function may be
abnormal and risky.
• The following diagram is applicable to areas in Australia, New Zealand, etc.
The PE wiring of BACKUP
terminal is not required.
BACKUP
GRID
6
Inverter cascading cable
Supplied in the box
7
(Optional) COM terminal communication cable for
Emergency Stop Button
Shielded Twisted Pair 2*0.5mm²
8
Backup load power cable
16 mm² (for the inverter EF HD-P3-29K9-S1 and EF
HD-P3-25K0-S1),
10 mm² (for the inverter EF HD-P3-20K0-S1 and EF
HD-P3-15K0-S1)
9
Grid power cable
16 mm² (for the inverter EF HD-P3-29K9-S1 and EF
HD-P3-25K0-S1),
10 mm² (for the inverter EF HD-P3-20K0-S1 and EF
HD-P3-15K0-S1)
Distribution box
MTS
RCD
N-PE Link
Backup
load
RCD
Utility
grid
