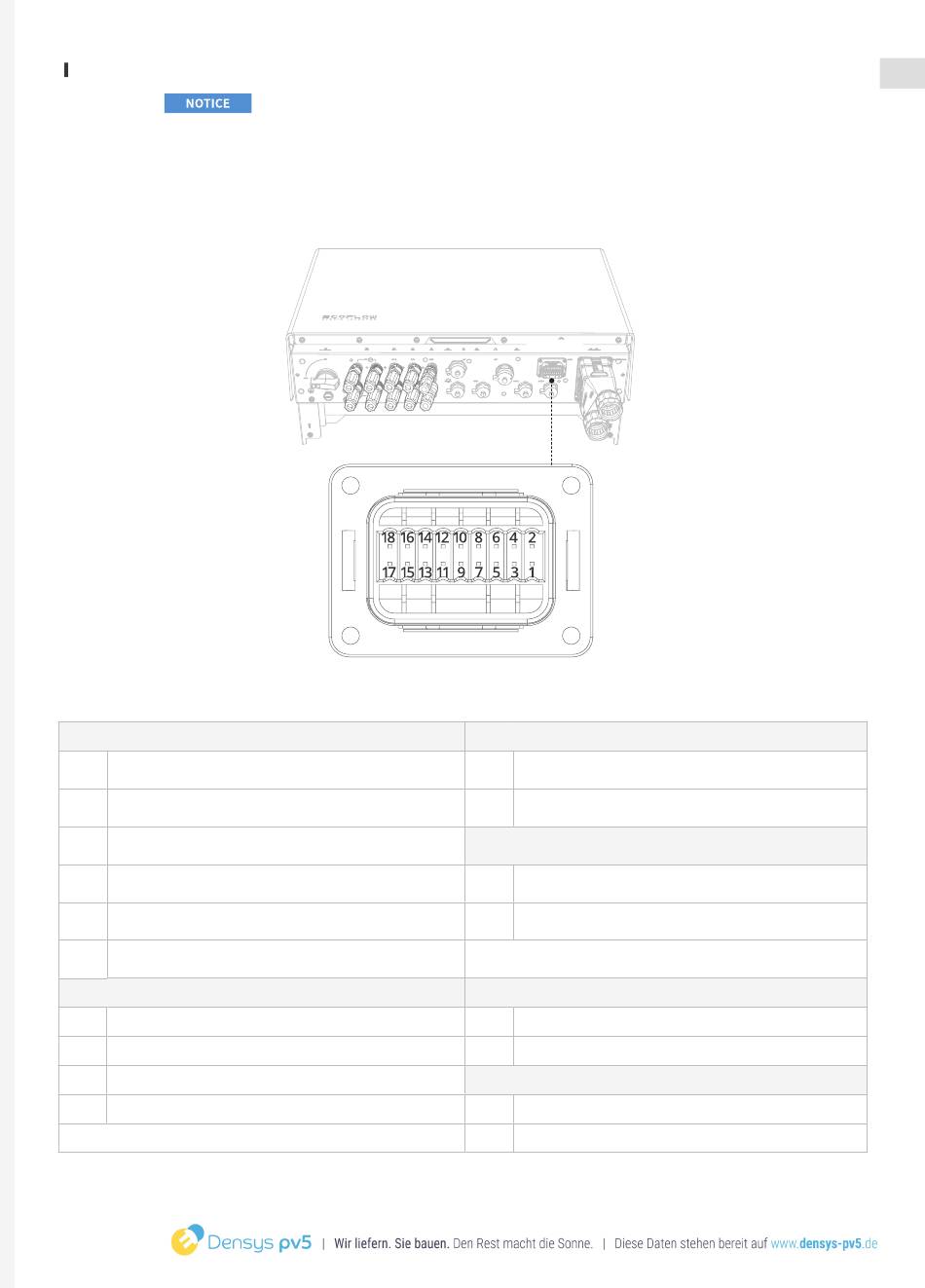

Installing COM Connector With Shorting Wire
DRM or RCR status detection
DRM0/COM LOAD or REF_1
1
REF_1
(EU)
DRM1/5 or DI_1
(AU)
2
DI_1
(EU)
DRM2/6 or DI_2
(AU)
3
DI_2(EU)
DRM3/7 or DI_3
(AU)
4
DI_3
(EU)
DRM4/8 or DI_4
(AU)
5
DI_4
(EU)
REF GEN/0 or REF_2
6
REF_2
(EU)
SG_Ready
7
SG_Ready11
8
SG_Ready12
9
SG_Ready21
SG_Ready22
10
• COM terminal supports logic interface connection. Logic interface is required by some local
regulations that can be operated by a simple switch or contactor.
• When the switch is closed, the inverter can operate normally. When the switch is opened, the
inverter will reduce its active power to zero within 5s.
• DRM only be supported in Australia and New Zeeland.
(AU)
(AU)
COM port
Emergency Stop Input
11
EPO_GND
12
EPO
AC Meter
13
485_A_1
14
485_B_1
AC Coupled Meter
15
485_A_2
16
485_B_2
Ecosystem Appliances
485_A_3
17
18
485_B_3
