Korg multi/poly Blitzstart Seite 6

DC 12V jack
(Power) switch
AC adapter
(included)
Sound module,
DAW MIDI interface, etc.
Connecting the AC adapter
1.
Connect the DC plug of the included AC adapter to the DC 12V
jack on the rear panel of the multi/poly.
Be sure to use only the included AC adapter. Using any other AC
adapter may cause malfunctions.
2.
Connect the plug of the AC adapter to an AC outlet.
Be sure to use an AC outlet of the correct voltage for your AC
adapter.
Other connections
Connect the multi/poly as appropriate for your audio system.
Be sure that the power on all of your devices is turned off before
you make connections. Leaving the power on when you make
connections may cause malfunctions, or damage your speaker
system and other components.
OUTPUT L/MONO, R jacks: Connect these TRS jacks to a mixer, audio
interface, monitor system, etc. Adjust the volume level using the
VOLUME knob.
Headphones jack: Connect the headphones here. This carries the same
signal as that of OUTPUT L/MONO and R.
DAMPER jack: Connect a Korg DS-1H damper pedal or a PS-1/PS-3
pedal switch (sold separately) to control the damper function. Pedal
polarity is detected automatically; to allow this, make sure that the pedal
is not held down when connected, or while turning on power.
MIDI IN, OUT connectors: Use these connectors to connect the
multi/poly to an external MIDI device for exchanging MIDI messages.
Make sure that the MIDI channels are set appropriately.
USB B port: Connect this to a computer to exchange MIDI messages
and data.
Use a cable that's no more than 3 m long to prevent malfunc-
tions.

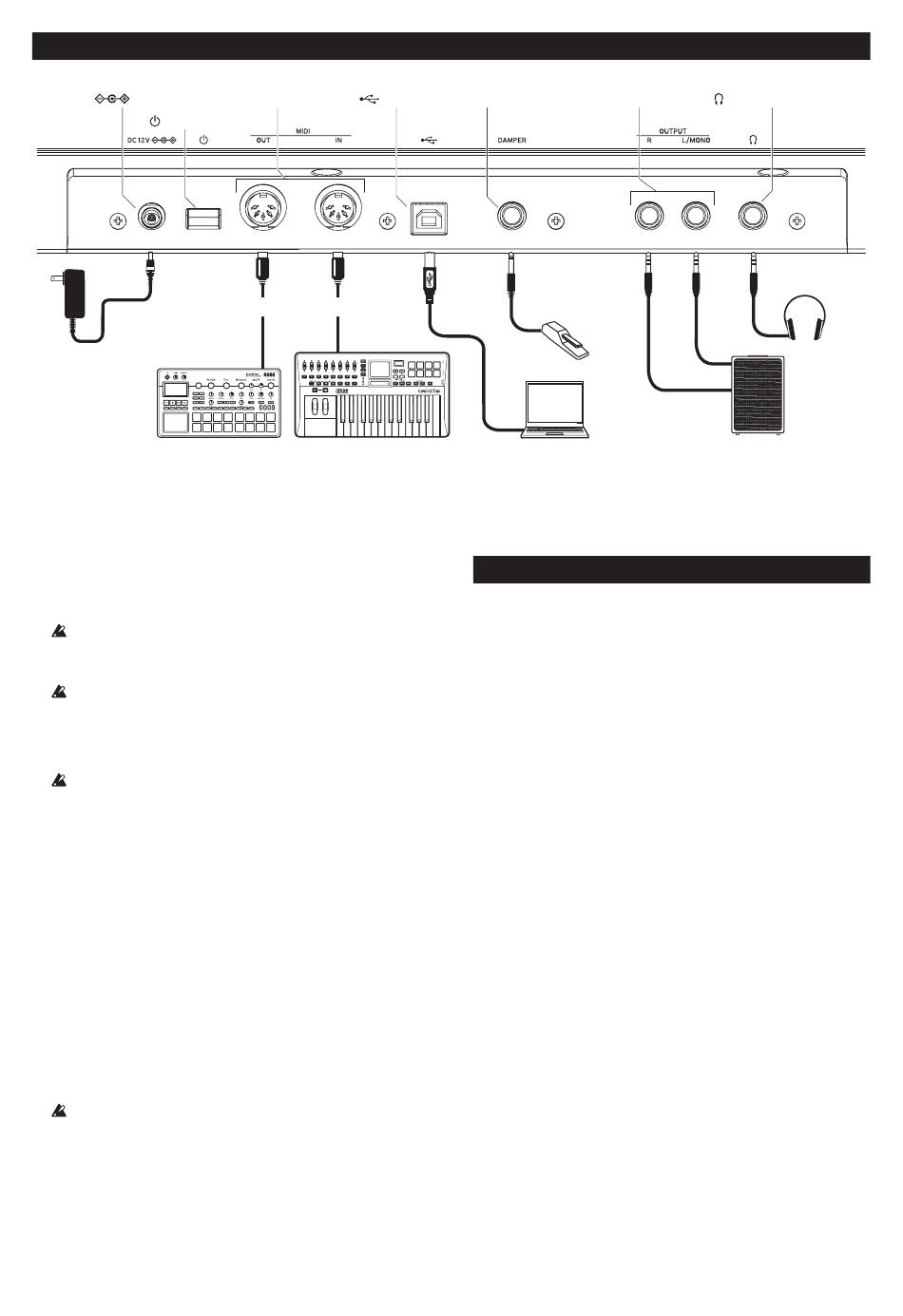

Making connections
MIDI IN, OUT connectors (USB B) port
MIDI cable MIDI cable
MIDI OUT
MIDI IN
MIDI keyboard,
DAW MIDI interface, etc.
DAMPER jack OUTPUT L/MONO, R jacks
Damper pedal,
USB cable Pedal switch, etc.
USB
Computer
Turning the power on/off
Turning the multi/poly On
Make sure that both the multi/poly and any amplification devices such
as powered monitor speakers are turned off, and turn the volume of all
devices all the way down.
1.
Hold down the rear-panel Power switch. Once the "multi/poly" logo
appears in the display, release the Power switch.
2.
Turn on any amplification devices such as powered monitor
speakers, and then adjust their volume. Adjust the multi/poly's
volume using the VOLUME knob.
Turning the multi/poly Off
1.
Lower the volume of your powered monitors or other amplification
devices, and turn them off.
2.
Hold down the multi/poly Power switch until the display shows
"Shutting down..." and then release the power switch.
Auto Power-Off
By default, the multi/poly will automatically turn off after about four
hours have elapsed without use of the front panel, keyboard, or MIDI
input. You can disable this feature, if desired. To do so:
1.
Press UTILITY, and then hold SHIFT and press < (for PAGE–) until
the Preferences page appears in the display.
2.
Use the VALUE knob to set Auto Power-Off to Disabled.
En-4
(Headphones) jack
Headphones
INPUT L
INPUT R
Mixer, Monitors,
Audio Interface, etc.
