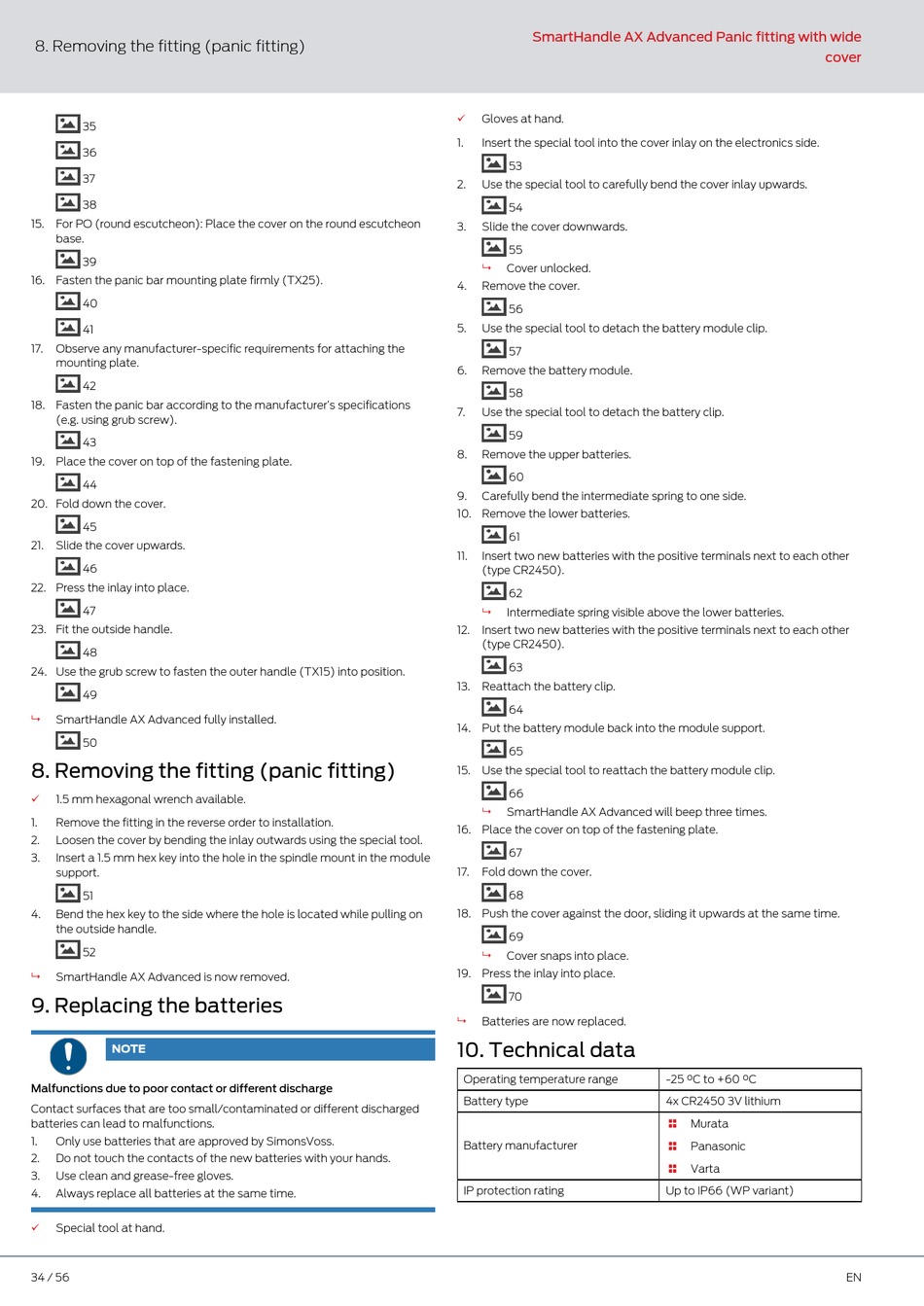

8. Removing the fitting (panic fitting)
35
36
37
38
15.
For PO (round escutcheon): Place the cover on the round escutcheon
base.
39
16. Fasten the panic bar mounting plate firmly (TX25).
40
41
17.
Observe any manufacturer-specific requirements for attaching the
mounting plate.
42
18. Fasten the panic bar according to the manufacturer's specifications
(e.g. using grub screw).
43
19. Place the cover on top of the fastening plate.
44
20. Fold down the cover.
45
21.
Slide the cover upwards.
46
22. Press the inlay into place.
47
23. Fit the outside handle.
48
24. Use the grub screw to fasten the outer handle (TX15) into position.
49
SmartHandle AX Advanced fully installed.
9
50
8. Removing the fitting (panic fitting)
ü
1.5 mm hexagonal wrench available.
1.
Remove the fitting in the reverse order to installation.
2.
Loosen the cover by bending the inlay outwards using the special tool.
3.
Insert a 1.5 mm hex key into the hole in the spindle mount in the module
support.
51
4.
Bend the hex key to the side where the hole is located while pulling on
the outside handle.
52
9
SmartHandle AX Advanced is now removed.
9. Replacing the batteries
NOTE
Malfunctions due to poor contact or different discharge
Contact surfaces that are too small/contaminated or different discharged
batteries can lead to malfunctions.
1.
Only use batteries that are approved by SimonsVoss.
2.
Do not touch the contacts of the new batteries with your hands.
3.
Use clean and grease-free gloves.
4.
Always replace all batteries at the same time.
Special tool at hand.
ü
34 / 56
SmartHandle AX Advanced Panic fitting with wide
ü
Gloves at hand.
1.
Insert the special tool into the cover inlay on the electronics side.
53
2.
Use the special tool to carefully bend the cover inlay upwards.
54
3.
Slide the cover downwards.
55
Cover unlocked.
9
4.
Remove the cover.
56
5.
Use the special tool to detach the battery module clip.
57
6.
Remove the battery module.
58
7.
Use the special tool to detach the battery clip.
59
8.
Remove the upper batteries.
60
9.
Carefully bend the intermediate spring to one side.
10. Remove the lower batteries.
61
11.
Insert two new batteries with the positive terminals next to each other
(type CR2450).
62
9
Intermediate spring visible above the lower batteries.
12.
Insert two new batteries with the positive terminals next to each other
(type CR2450).
63
13.
Reattach the battery clip.
64
14. Put the battery module back into the module support.
65
15.
Use the special tool to reattach the battery module clip.
66
SmartHandle AX Advanced will beep three times.
9
16. Place the cover on top of the fastening plate.
67
17.
Fold down the cover.
68
18. Push the cover against the door, sliding it upwards at the same time.
69
9
Cover snaps into place.
19. Press the inlay into place.
70
9
Batteries are now replaced.
10. Technical data
Operating temperature range
Battery type
Battery manufacturer
IP protection rating
cover
-25 °C to +60 °C
4x CR2450 3V lithium
Murata
Panasonic
Varta
Up to IP66 (WP variant)
EN
