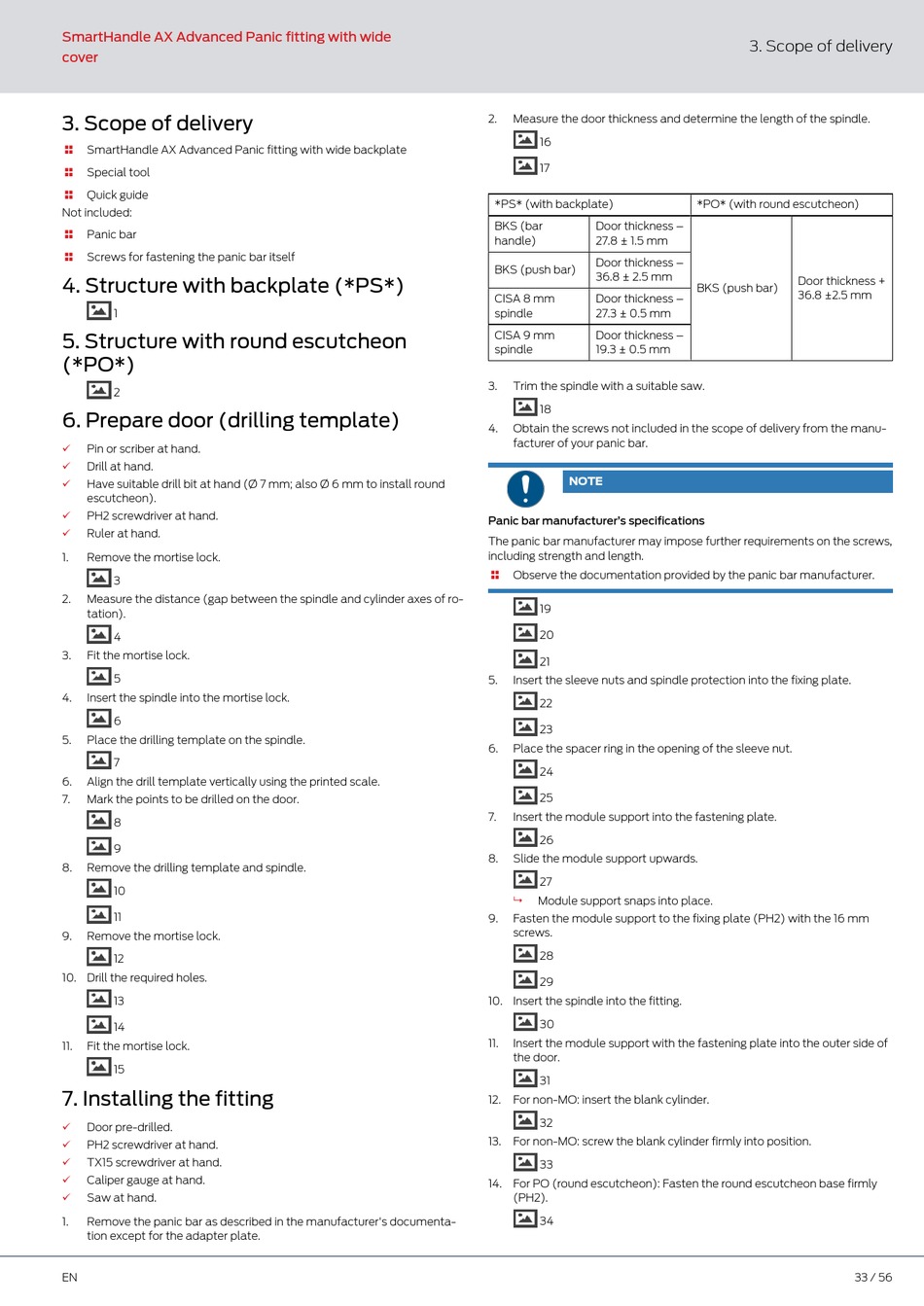

3. Scope of delivery
SmartHandle AX Advanced Panic fitting with wide backplate

Special tool

Quick guide

Not included:
Panic bar

Screws for fastening the panic bar itself

4. Structure with backplate (*PS*)
1
5. Structure with round escutcheon
(*PO*)
2
6. Prepare door (drilling template)
Pin or scriber at hand.
ü
Drill at hand.
ü
ü Have suitable drill bit at hand (Ø 7 mm; also Ø 6 mm to install round
escutcheon).
ü PH2 screwdriver at hand.
ü Ruler at hand.
1. Remove the mortise lock.
3
2. Measure the distance (gap between the spindle and cylinder axes of ro-
tation).
4
3. Fit the mortise lock.
5
4. Insert the spindle into the mortise lock.
6
5. Place the drilling template on the spindle.
7
6. Align the drill template vertically using the printed scale.
7. Mark the points to be drilled on the door.
8
9
8. Remove the drilling template and spindle.
10
11
9. Remove the mortise lock.
12
10. Drill the required holes.
13
14
11. Fit the mortise lock.
15
7. Installing the fitting
Door pre-drilled.
ü
ü PH2 screwdriver at hand.
ü TX15 screwdriver at hand.
ü Caliper gauge at hand.
ü Saw at hand.
1. Remove the panic bar as described in the manufacturer's documenta-
tion except for the adapter plate.
EN
2. Measure the door thickness and determine the length of the spindle.
16
17
*PS* (with backplate)
BKS (bar Door thickness –
handle) 27.8 ± 1.5 mm
Door thickness –
BKS (push bar)
36.8 ± 2.5 mm
CISA 8 mm Door thickness –
spindle 27.3 ± 0.5 mm
CISA 9 mm Door thickness –
spindle 19.3 ± 0.5 mm
3. Trim the spindle with a suitable saw.
18
4. Obtain the screws not included in the scope of delivery from the manu-
facturer of your panic bar.
NOTE
Panic bar manufacturer's specifications
The panic bar manufacturer may impose further requirements on the screws,
including strength and length.
Observe the documentation provided by the panic bar manufacturer.

19
20
21
5. Insert the sleeve nuts and spindle protection into the fixing plate.
22
23
6. Place the spacer ring in the opening of the sleeve nut.
24
25
7. Insert the module support into the fastening plate.
26
8. Slide the module support upwards.
27
Module support snaps into place.
9
9. Fasten the module support to the fixing plate (PH2) with the 16 mm
screws.
28
29
10. Insert the spindle into the fitting.
30
11. Insert the module support with the fastening plate into the outer side of
the door.
31
12. For non-MO: insert the blank cylinder.
32
13. For non-MO: screw the blank cylinder firmly into position.
33
14. For PO (round escutcheon): Fasten the round escutcheon base firmly
(PH2).
34
3. Scope of delivery
*PO* (with round escutcheon)
Door thickness +
BKS (push bar)
36.8 ±2.5 mm
33 / 56
