Active Probe
Passive Probe
(not in use)
Use for:
All tests except Far-End Crosstalk (FEXT)
•
The example above shows RJ-11 Line Connector 1 connected to the
Probe/Trend Multipro and RJ-11 Line Connector 2 connected to the CPE.
The above connections can be reversed without affecting the operation of
the test but you cannot use the Pair Trace Probe if you do reverse the con-
nections.
Multipro Copper
Short User Guide
RJ-11 Line Connec-
tor 1
Pair
Trace
Probe

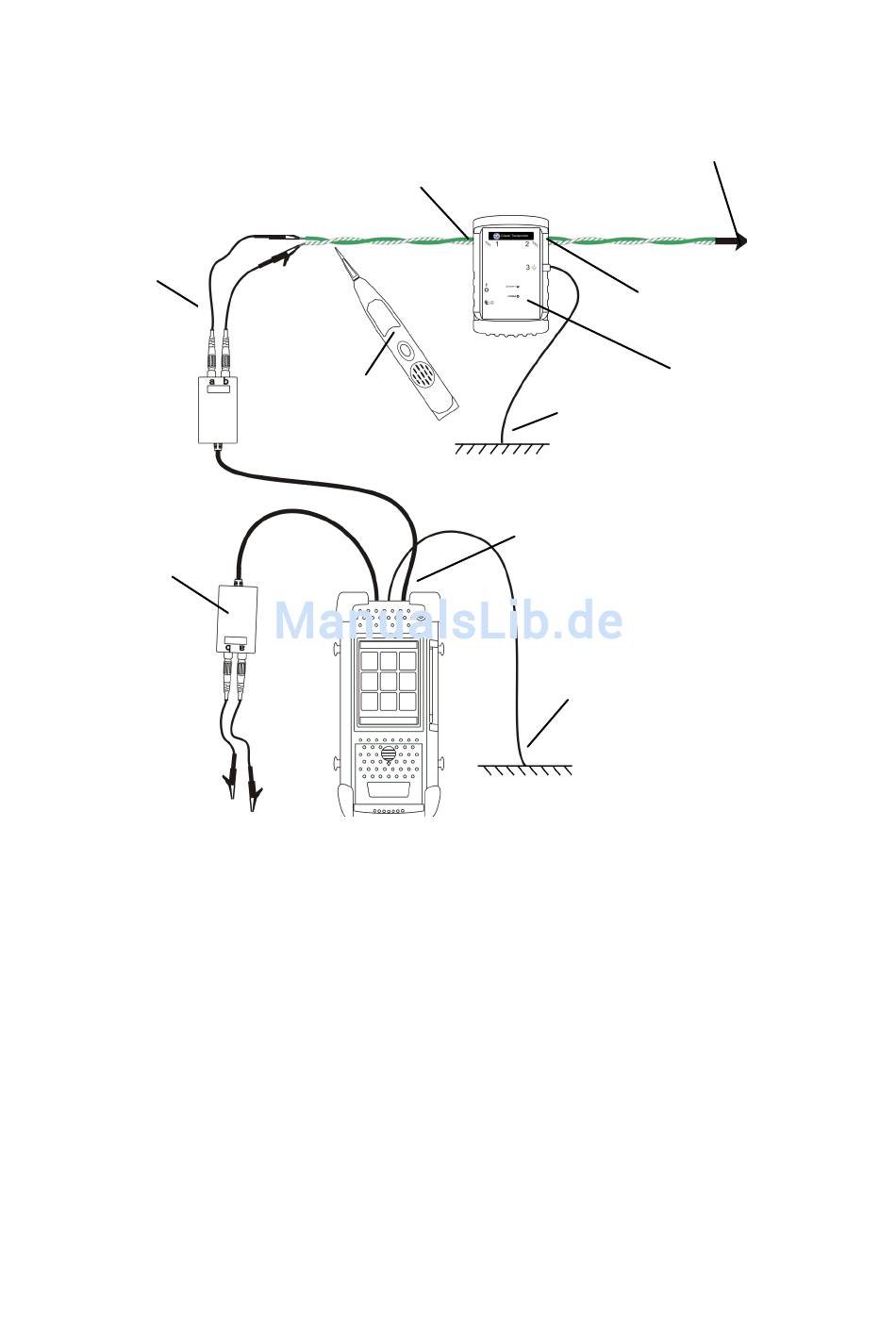

Connection Diagram 5
To CPE or additional
Transponders
Earth
Tx / Rx
Earth
-18-
RJ-11 Line Connec-
tor 2
Transponder
