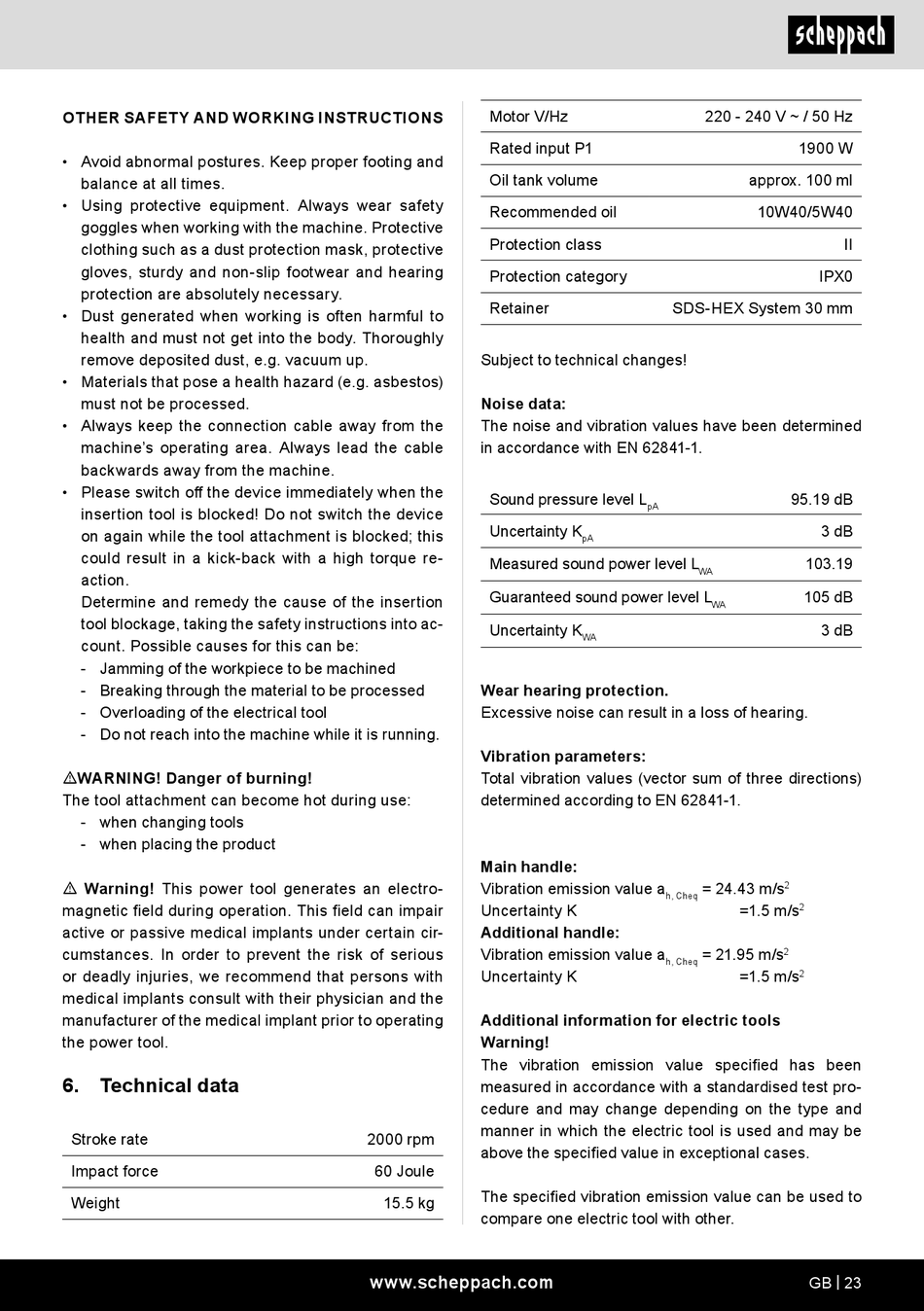

Scheppach AB1900x Originalbetriebsanleitung Seite 23

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

OTHER SAFETY AND WORKING INSTRUCTIONS
• Avoid abnormal postures. Keep proper footing and
balance at all times.
• Using protective equipment. Always wear safety
goggles when working with the machine. Protective
clothing such as a dust protection mask, protective
gloves, sturdy and non-slip footwear and hearing
protection are absolutely necessary.
• Dust generated when working is often harmful to
health and must not get into the body. Thoroughly
remove deposited dust, e.g. vacuum up.
• Materials that pose a health hazard (e.g. asbestos)
must not be processed.
• Always keep the connection cable away from the
machine's operating area. Always lead the cable
backwards away from the machine.
• Please switch off the device immediately when the
insertion tool is blocked! Do not switch the device
on again while the tool attachment is blocked; this
could result in a kick-back with a high torque re-
action.
Determine and remedy the cause of the insertion
tool blockage, taking the safety instructions into ac-
count. Possible causes for this can be:
- Jamming of the workpiece to be machined
- Breaking through the material to be processed
- Overloading of the electrical tool
- Do not reach into the machine while it is running.
mWARNING! Danger of burning!
The tool attachment can become hot during use:
- when changing tools
- when placing the product
m Warning! This power tool generates an electro-
magnetic field during operation. This field can impair
active or passive medical implants under certain cir-
cumstances. In order to prevent the risk of serious
or deadly injuries, we recommend that persons with
medical implants consult with their physician and the
manufacturer of the medical implant prior to operating
the power tool.
6. Technical data
Stroke rate
Impact force
Weight
Motor V/Hz
Rated input P1
Oil tank volume
Recommended oil
Protection class
Protection category
Retainer
Subject to technical changes!
Noise data:
The noise and vibration values have been determined
in accordance with EN 62841-1.
Sound pressure level L
Uncertainty K
Measured sound power level L
Guaranteed sound power level L
Uncertainty K
Wear hearing protection.
Excessive noise can result in a loss of hearing.
Vibration parameters:
Total vibration values (vector sum of three directions)
determined according to EN 62841-1.
Main handle:
Vibration emission value a
Uncertainty K
Additional handle:
Vibration emission value a
Uncertainty K
Additional information for electric tools
Warning!
The vibration emission value specified has been
measured in accordance with a standardised test pro-
cedure and may change depending on the type and
manner in which the electric tool is used and may be
2000 rpm
above the specified value in exceptional cases.
60 Joule
The specified vibration emission value can be used to
15.5 kg
compare one electric tool with other.
www.scheppach.com
220 - 240 V ~ / 50 Hz
approx. 100 ml
SDS-HEX System 30 mm
pA
pA
WA
WA
WA
= 24.43 m/s
h, Cheq
=1.5 m/s
= 21.95 m/s
h, Cheq
=1.5 m/s
1900 W
10W40/5W40
II
IPX0
95.19 dB
3 dB
103.19
105 dB
3 dB
2
2
2
2
GB | 23
