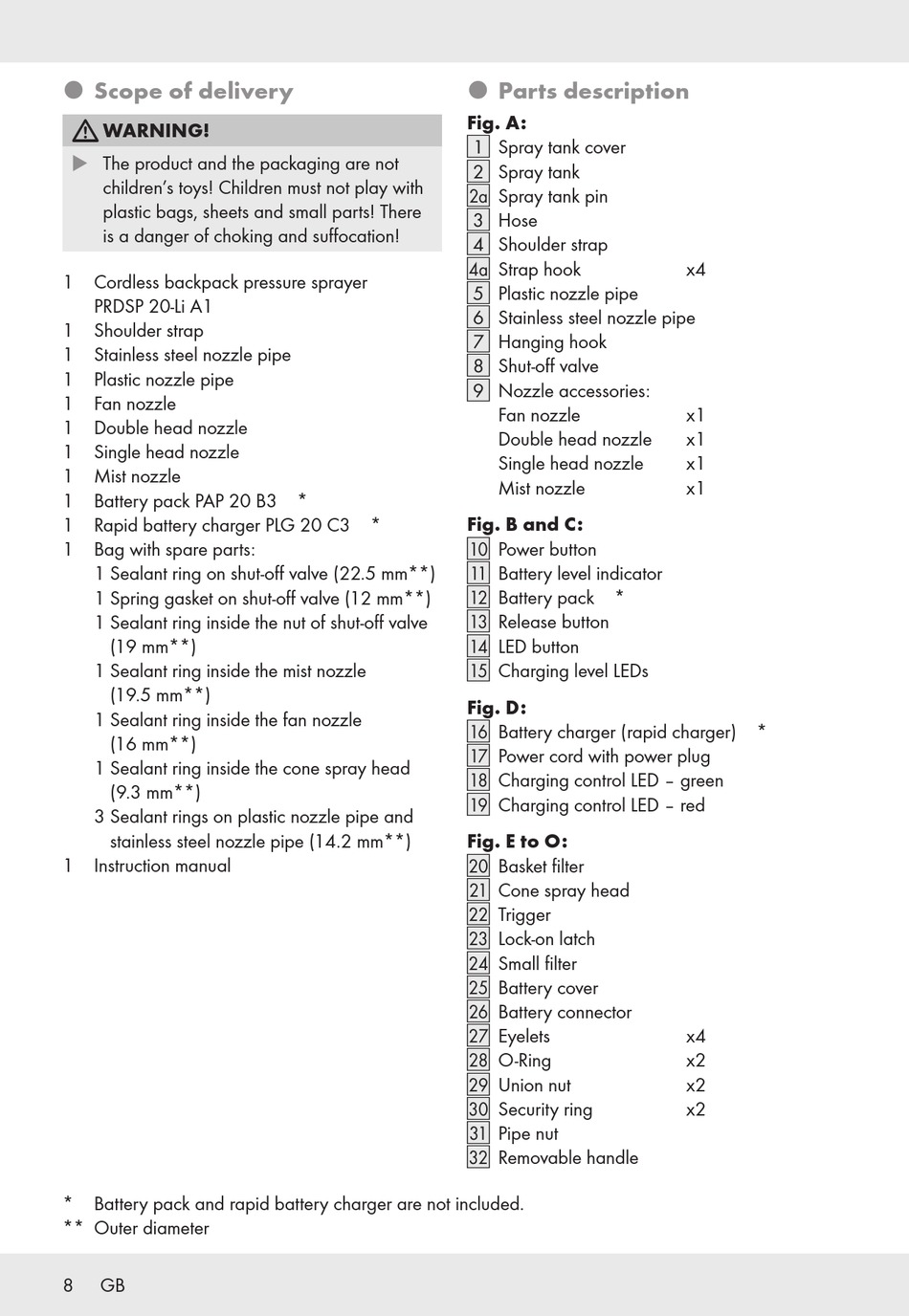

˜ Scope of delivery
m
WARNING!
The product and the packaging are not
u
children's toys! Children must not play with
plastic bags, sheets and small parts! There
is a danger of choking and suffocation!
1 Cordless backpack pressure sprayer
PRDSP 20-Li A1
1 Shoulder strap
1 Stainless steel nozzle pipe
1 Plastic nozzle pipe
1 Fan nozzle
1 Double head nozzle
1 Single head nozzle
1 Mist nozzle
1 Battery pack PAP 20 B3 *
1 Rapid battery charger PLG 20 C3 *
1 Bag with spare parts:
1 Sealant ring on shut-off valve (22.5 mm**)
1 Spring gasket on shut-off valve (12 mm**)
1 Sealant ring inside the nut of shut-off valve
(19 mm**)
1 Sealant ring inside the mist nozzle
(19.5 mm**)
1 Sealant ring inside the fan nozzle
(16 mm**)
1 Sealant ring inside the cone spray head
(9.3 mm**)
3 Sealant rings on plastic nozzle pipe and
stainless steel nozzle pipe (14.2 mm**)
1 Instruction manual
* Battery pack and rapid battery charger are not included.
** Outer diameter
8
GB
˜ Parts description
Fig. A:
Spray tank cover
1 ]
[
Spray tank
2 ]
[
Spray tank pin
[
]
Hose
[
3 ]
Shoulder strap
[
4 ]
Strap hook
[
]
Plastic nozzle pipe
5 ]
[
Stainless steel nozzle pipe
6 ]
[
Hanging hook
[
7 ]
Shut-off valve
8 ]
[
Nozzle accessories:
9 ]
[
Fan nozzle
Double head nozzle
Single head nozzle
Mist nozzle
Fig. B and C:
Power button
[
]
Battery level indicator
[
]
Battery pack *
[
]
Release button
[
]
LED button
[
]
Charging level LEDs
[
]
Fig. D:
Battery charger (rapid charger) *
[
]
Power cord with power plug
[
]
Charging control LED – green
[
]
Charging control LED – red
[
]
Fig. E to O:
Basket filter
[
]
Cone spray head
[
]
Trigger
[
]
Lock-on latch
[
]
Small filter
[
]
Battery cover
[
]
Battery connector
[
]
Eyelets
[
]
O-Ring
[
]
Union nut
[
]
Security ring
[
]
Pipe nut
[
]
Removable handle
[
]
x4
x1
x1
x1
x1
x4
x2
x2
x2
