SADDLE INSTALLATION

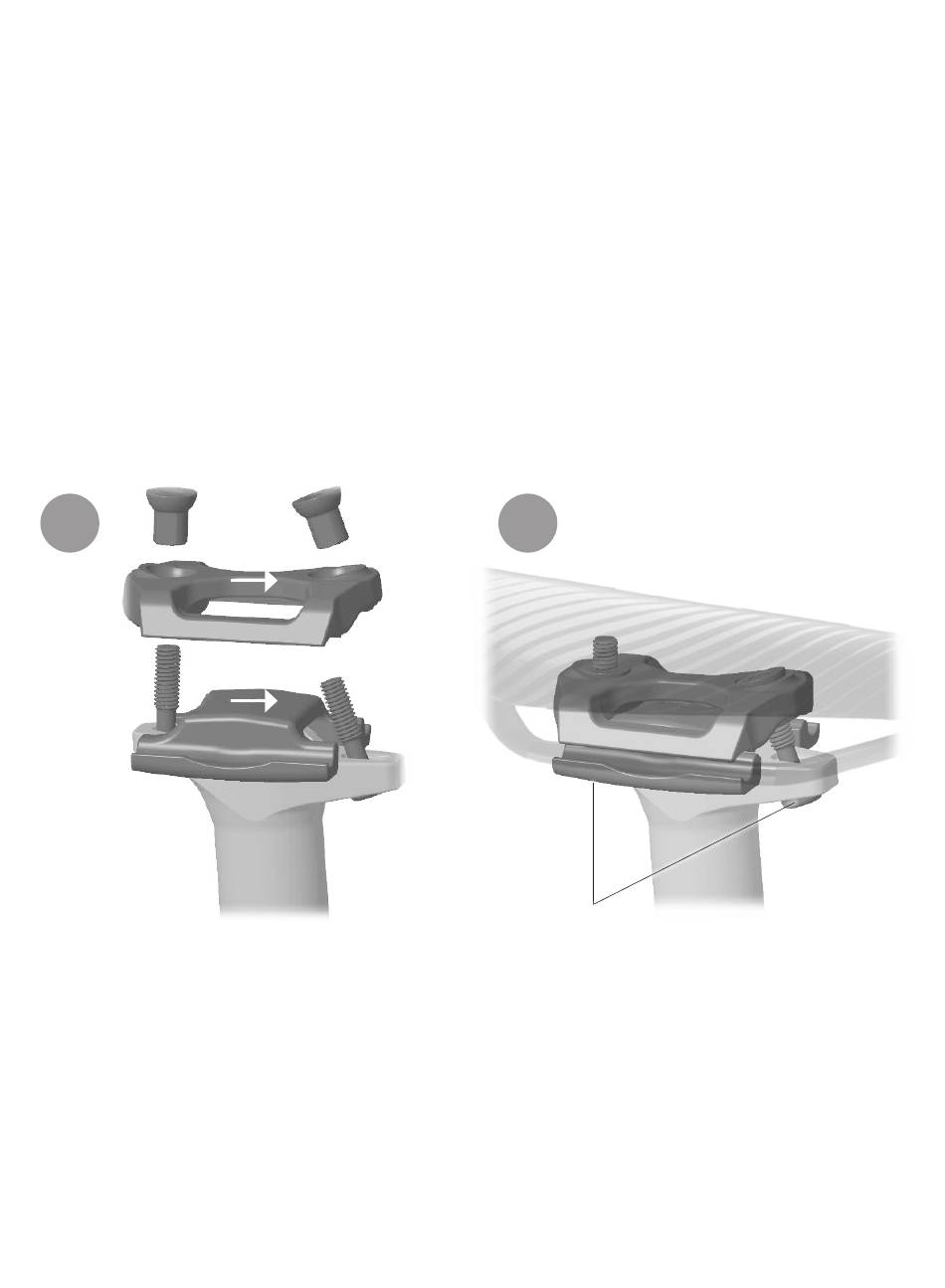

1. Place the lower saddle clamp on the seatpost with the arrow on top facing the front of the bike
(see the lower arrow in Figure I).
2. Insert the two nuts into the slots of the upper clamp (see Figure I).
3. Install the saddle on top of the lower clamp.
4. While holding the nuts in place with your fingers, place the upper saddle clamp on top of the
saddle rails with the arrow on top facing the front of the bike (see the upper arrow in Figure I).
5. While continuing to hold the nuts in place with your fingers, begin to install the two saddle clamp
bolts. Install the saddle clamp bolts into the underside of the upper post, through the slots of the
upper clamp, and through the nuts (see Figure J).
6. Adjust the level and fore/aft position of the saddle. Then use a 4 mm hex wrench to tighten the
saddle clamp bolts to 44 in-lb (5 N•m). (See Figure J).
I J
44 in-lb (5 N•m)
