INSTALL THE REMOTE LEVER
The lever is powered by an installed CR2032 coin cell battery, which can be accessed by the slotted
cover on the bottom side of the lever. Run time is about 8 months. There is a pairing button for initial
setup with the controller and one multi-colored LED to indicate status information. The clamp is
keyed to the lever, so there is only one way to mount it. Matchmaker and I-Spec clamps should be
torqued to the manufacturer recommendations.
Be sure to refer to the owner's manual for your bicycle. FOX products should be installed by a
qualified bicycle service technician, in accordance with FOX installation specifications. Improperly
installed parts and components can fail, causing the rider to lose control, resulting in SERIOUS
INJURY OR DEATH.
1X REMOTE LEVER INSTALLATION (22.2 CLAMP)

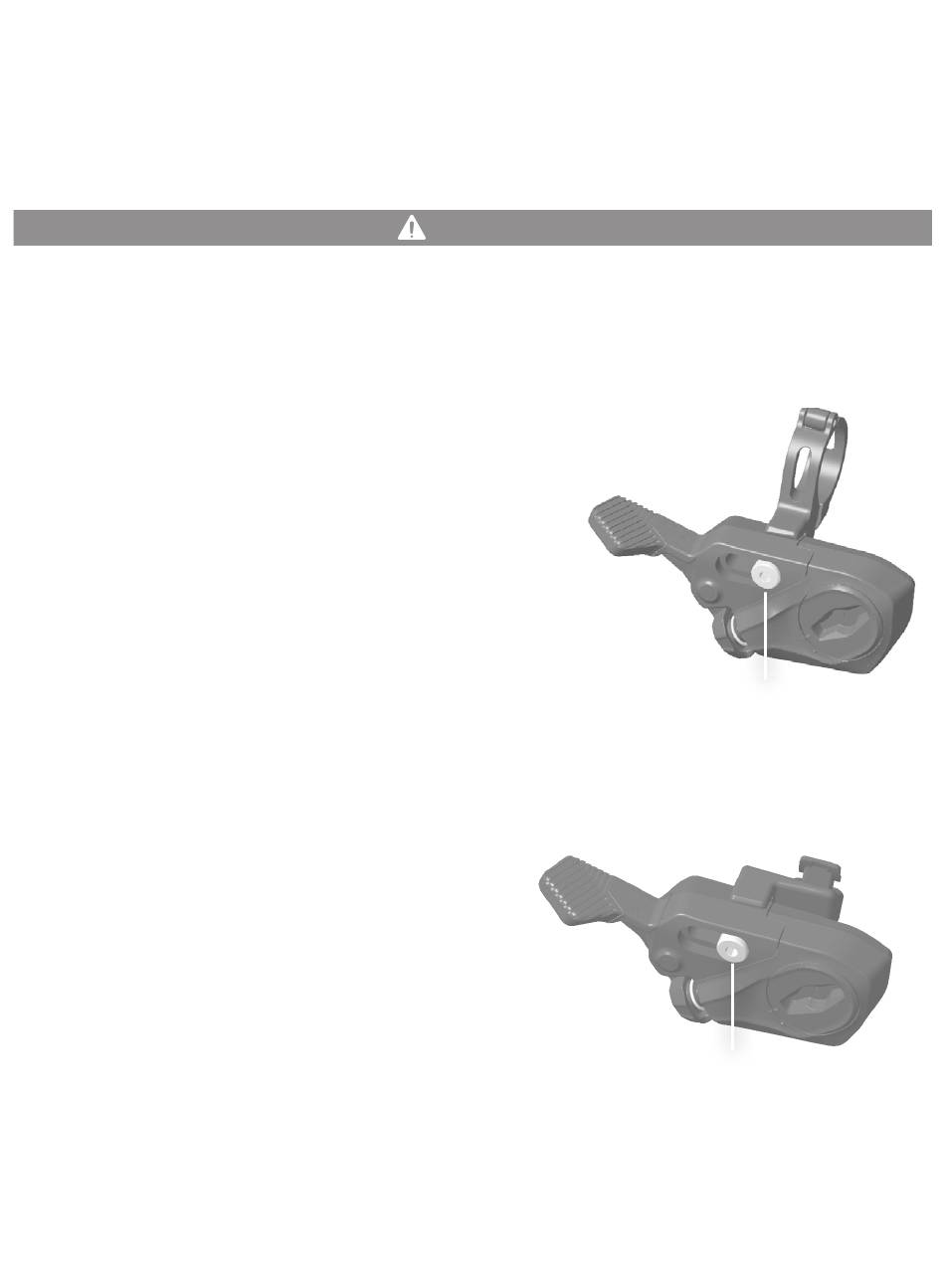

1. Install the remote lever clamp onto the handlebar in
the desired location. Test the range of motion for each
remote lever, brake lever, and shifter control lever to
make sure there is proper clearance between them.
2. Insert the supplied 35 mm long mounting bolt through
the lever, then through both sides of the clamp.
(Note: the 22 mm long bolt is for the Matchmaker and
I-Spec adapters.) Then use a 3 mm hex wrench to turn
the bolt clockwise and tighten to 17.7 in-lb (2.0 N•m).
Less torque may be needed for carbon bars. Refer to
the handlebar manufacturer's instructions for use with
carbon bars.
1X REMOTE LEVER INSTALLATION
(COMPATIBLE WITH MATCHMAKER
INTERFACE)
1. Install and position the brake lever according to
the brake manufacturer's instructions.
2. Install the remote lever onto the brake lever
clamp using the supplied adapter and 22 mm
long mounting bolt. (Note: the 35 mm long bolt
is for the 22.2 mm clamp mount.) Make sure to
install the supplied nut into the band clamp of
the brake lever during this step. Tighten to 17.7
in-lb (2.0 N•m). Test the range of motion for each
remote lever, brake lever, and shifter control lever
to make sure there is proper clearance between
them.
WARNING
10
17.7 in-lb (2.0 N•m)
17.7 in-lb (2.0 N•m)
