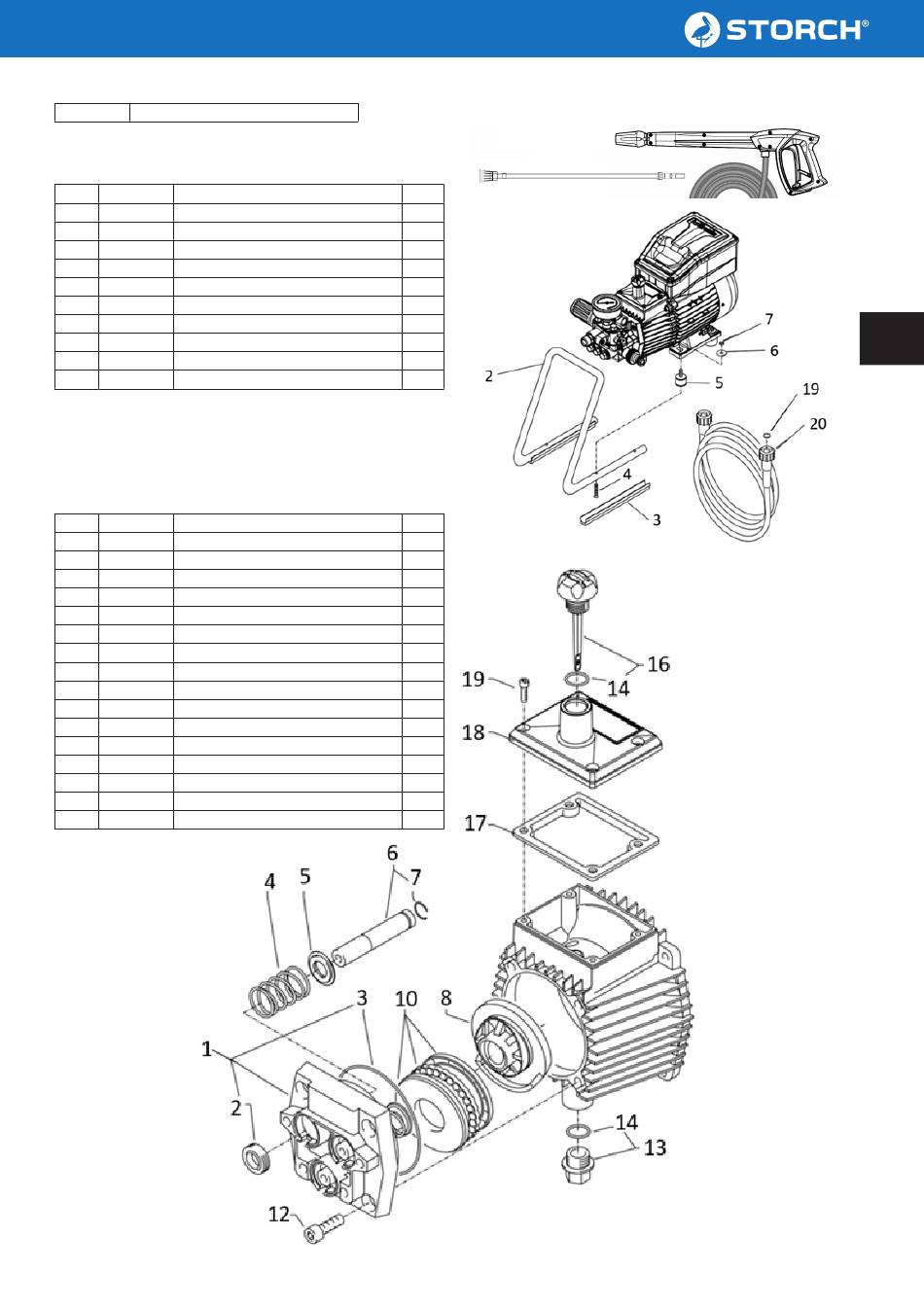

Storch 120 Compact Originalbetriebsanleitung Seite 57

SB Special order
Complete device
Pos. Part. no. Designation
2 SB Carrying handle
3 SB Rubber profile strip
4 SB M6x20 countersunk screw
5 SB 30x20 rubber buffer
6 SB 8.4 washer
7 SB DIN985 M8 nut
8 65 65 33 M22 high.pressure spray gun handle 1
9 65 65 34 M22 HP lance with nozzle
19 65 65 59 9.3 x 2.4 O-ring
20 65 65 14 10m HP hose
Gearbox part
Pos. Part. no. Designation
1 SB Housing plate
2 65 62 53 14 x 24 x 7 oil seal
3 SB 83 x 2 O-ring
4 SB Plunger spring
5 SB 14 mm spring pressure washer
6 SB 14 mm plunger AZ-L
7 SB 14 mm snap ring
8 SB 9.5° swash plate (HP 10/122)
10 SB 3-part axial grooved ball bearing
12 SB M8x25 hex socket screw
13 SB M18 x 1.5 oil drain plug with magnet 1
14 SB 12 x 2 O-ring
16 SB Red oil dipstick
17 SB Oil cap seal
18 SB Oil housing cover
19 SB M5x12 hex socket screw
Qty.
1
2
1
4
4
4
1
2
1
Qty.
1
3
1
3
3
3
3
1
1
4
2
1
1
1
4
8
9
GB
57
