Fig. 22
Fig. 23
A
B
C
Fig. 24
Fig. 25
24 - PEB Zeroline®
A

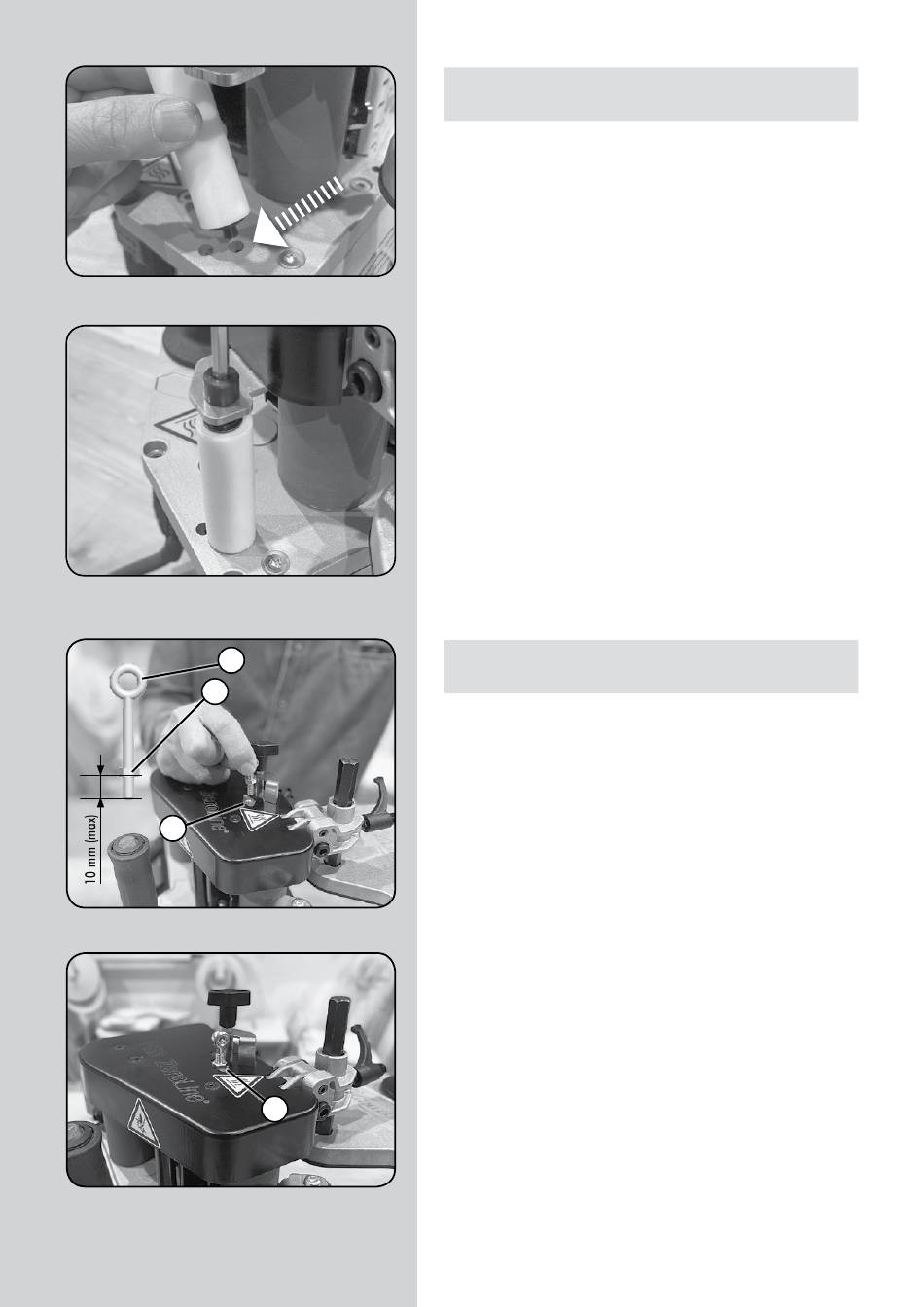

12. ASSEMBLY OF THE AUXILIARY ROLLER FOR
INTERIOR RADIUS EDGE BANDING
The auxiliary roller allows for edge banding of interior corners at
90° (minimum radius 18 mm). Secure it as shown in the figure.
Insert the end of the roller shaft into the hole in the corres-
ponding plate (Fig. 22). Once positioned, you can proceed to
secure it using the locking pin (Fig. 23).
13. ACCESSORY FOR WORKING WITH THE MACHINE
SUSPENDED
The machine comes with an accessory for suspended operation.
This accessory should be mounted at the center of gravity A
(Fig. 25) of the machine as follows: Place nut B (Fig. 24) ap-
proximately 10 mm away from the outer edge of ring A (Fig.
24) and insert both through the ring into threaded hole C
(Fig. 24). Once the nut stops against the ring A (Fig. 25), finish
securing it with a hex wrench size 8 mm. The machine can be
suspended through the hole in the ring.
