2. TECHNICAL SPECIFICATIONS
2.1 GENERAL DESCRIPTION OF THE MACHINE
This manual device has been designed for edge banding any of
the so-called "zero joint" or "fusion" edges in PVC/ABS (with
a polymeric functional layer, coextruded, or with priming/
pre-gluing) designed for industrial edge banding. It can edge
band surfaces with straight, curved, or inclined shapes of
particleboard or MDF materials.

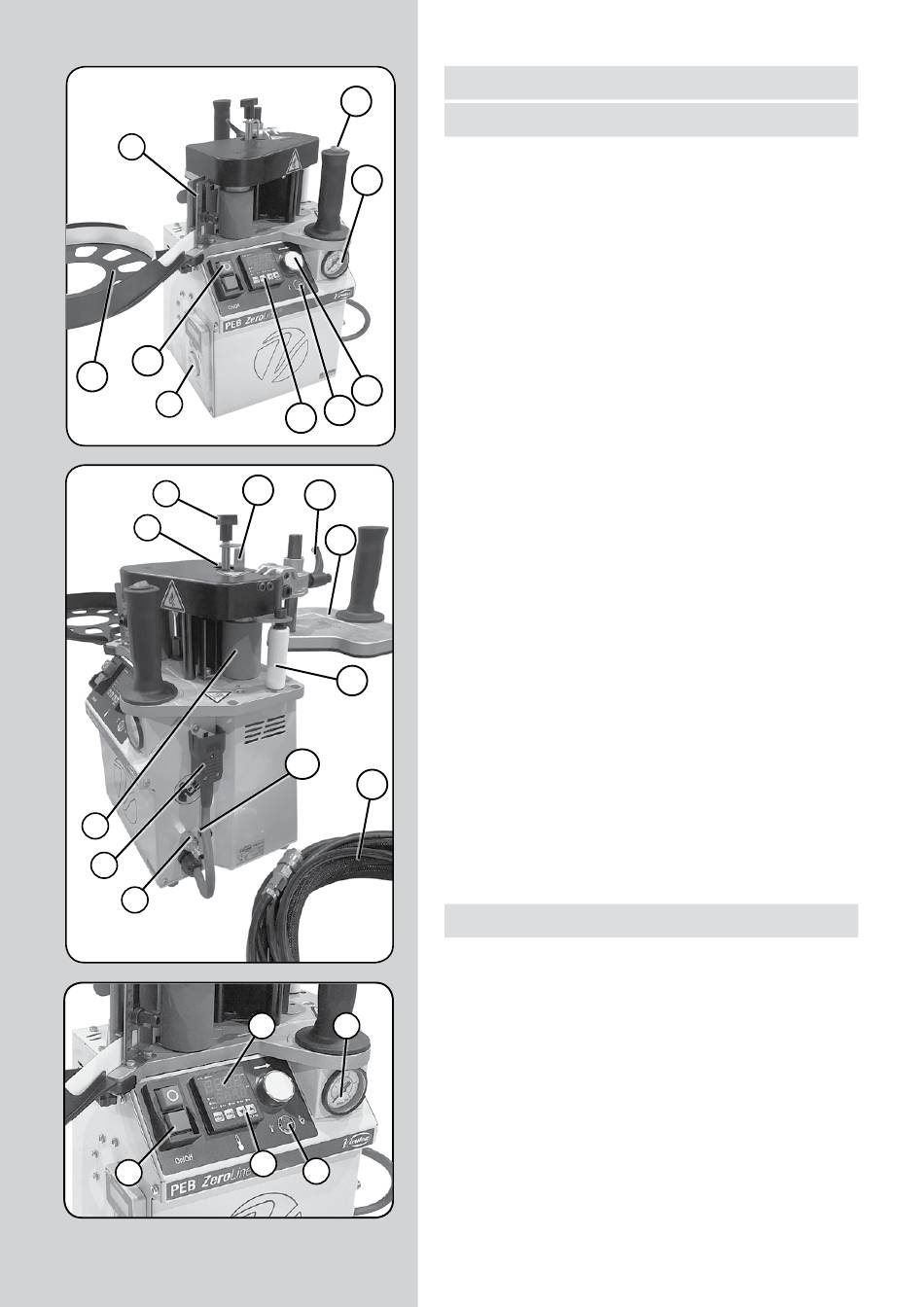

1. Pneumatic connection socket
2. Fuse (2A)
3. Power socket
4. Edge feed speed control
5. Edge entry guide
6. Panel support
7. Edge banding roller
8. Roller for interior radius edge banding
9. Air outlet height regulator
10. Panel support locking handle
11. Roll holder support
12. Edge height adjustment
13. Threaded hole for machine suspension ring (not included)
14. Main switch
15. Pneumatic pressure gauge
16. Temperature control
17. Automatic edge introduction button
18. Set temperature indicator light
19. Working pressure activation switch
20. Electrical and pneumatic connection sockets (5 m)
Functions and indicators of the control panel
A - Main switch. Connects in the on position and disconnects
in the off position, the electrical power supply of the machine.
B - Temperature selection buttons
C - Display of selected temperature and working temperature
D - LED (green) When it reaches the set temperature, the LED
lights up
E - Air pressure gauge
2.2 SPECIFICATIONS
Voltage: 230 V
Power: 3,3 kW (16A)
Tape height: 10-65 mm
Inner Radi (min): 18 mm
Tape thickness: 0,8-2 mm
Inclined panels: 0-55°
Temperature max: 370 °C / 698 °F
Speed: 1-3,5 m/min
Air connection: Min 6 bar-Max 8 bar
Working pressure: 0,6-0,8 bar
Supply cable and hose: 5 m
Weight: 11 kg
Acoustic pressure level: 85 dB (A)
PEB Zeroline® - 15
