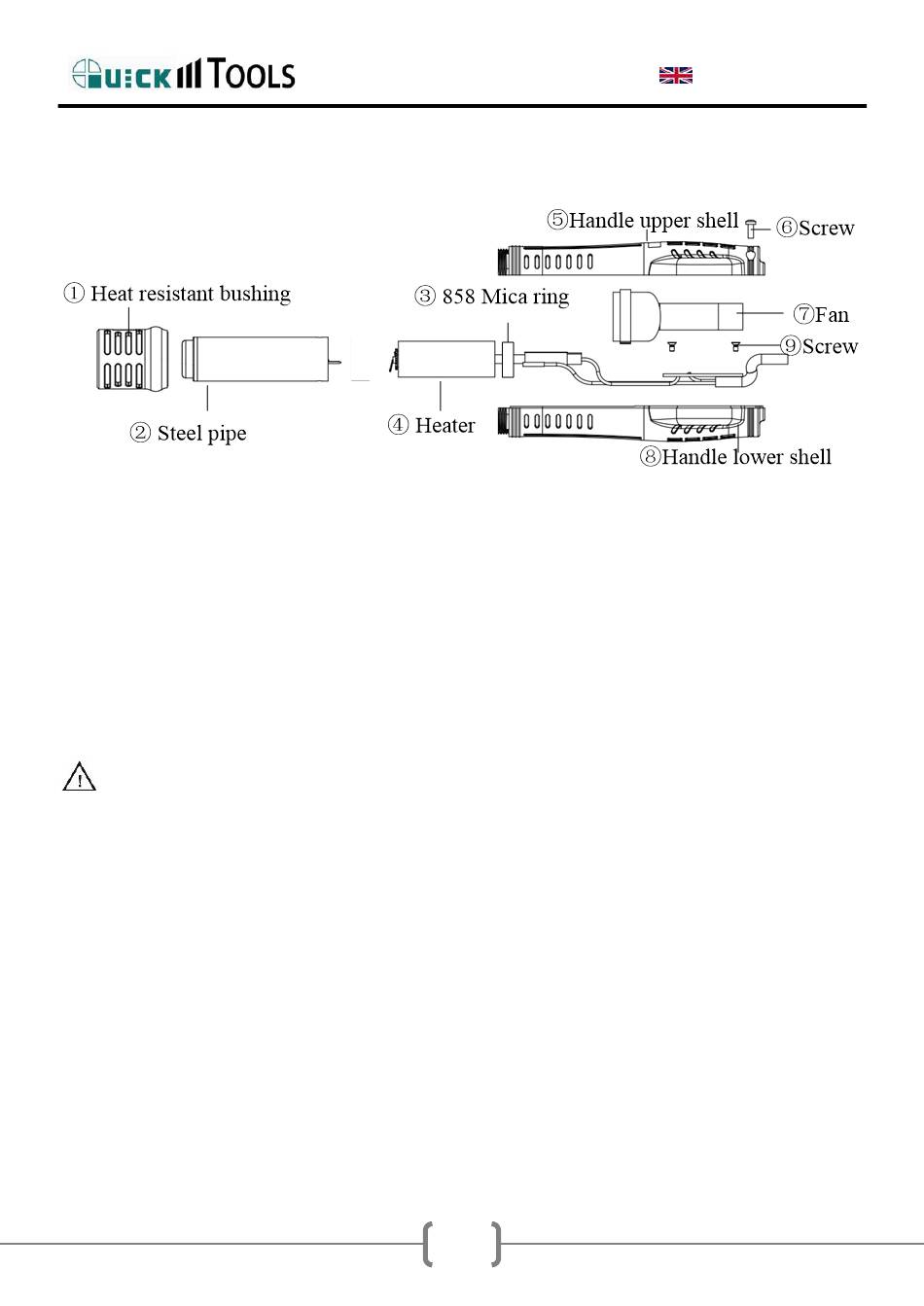

Remove the heater:
1) Unscrew the handle at the end of the two ⑥ Screws;
2) Turn down the ① Heat resistant bushing at the front of the handle
counterclockwise and remove the ⑤ Handle upper shell;
3) Take out the ⑦ Fan, and unscrew the three ⑨ Screws fixing the circuit
board;
4) Remove the two white wires of the ④ Heater and the red and blue wires of
the sensor with a soldering iron, and take the ④ Heater out of the ②Steel
pipe;
5) Remove the③858 mica ring and then take the ④ Heater out of the ② Steel
pipe.
Note: All operating steps are performed with the power disconnected and
the handle cooled.
Replace the heater:
1) Install ④ Heater into the ② Steel pipe. Solder the heater wire into the hole
according to the hole position of the removal wire, cut off the excessive wire,
and pay attention to the correct position of red and blue wires;
2) Place the circuit board against the hole in the ⑧ Handle lower shell and fix it
with three ⑨ Screws;
3) Put the fan in a good position. Align the convex points of ⑤⑧ the upper and
lower shells of the handle with the steel pipe holes, and close them, tighten the
heat resistant bushing of the handle;
4) Lock the two ⑥ Screws at the end of the handle;
