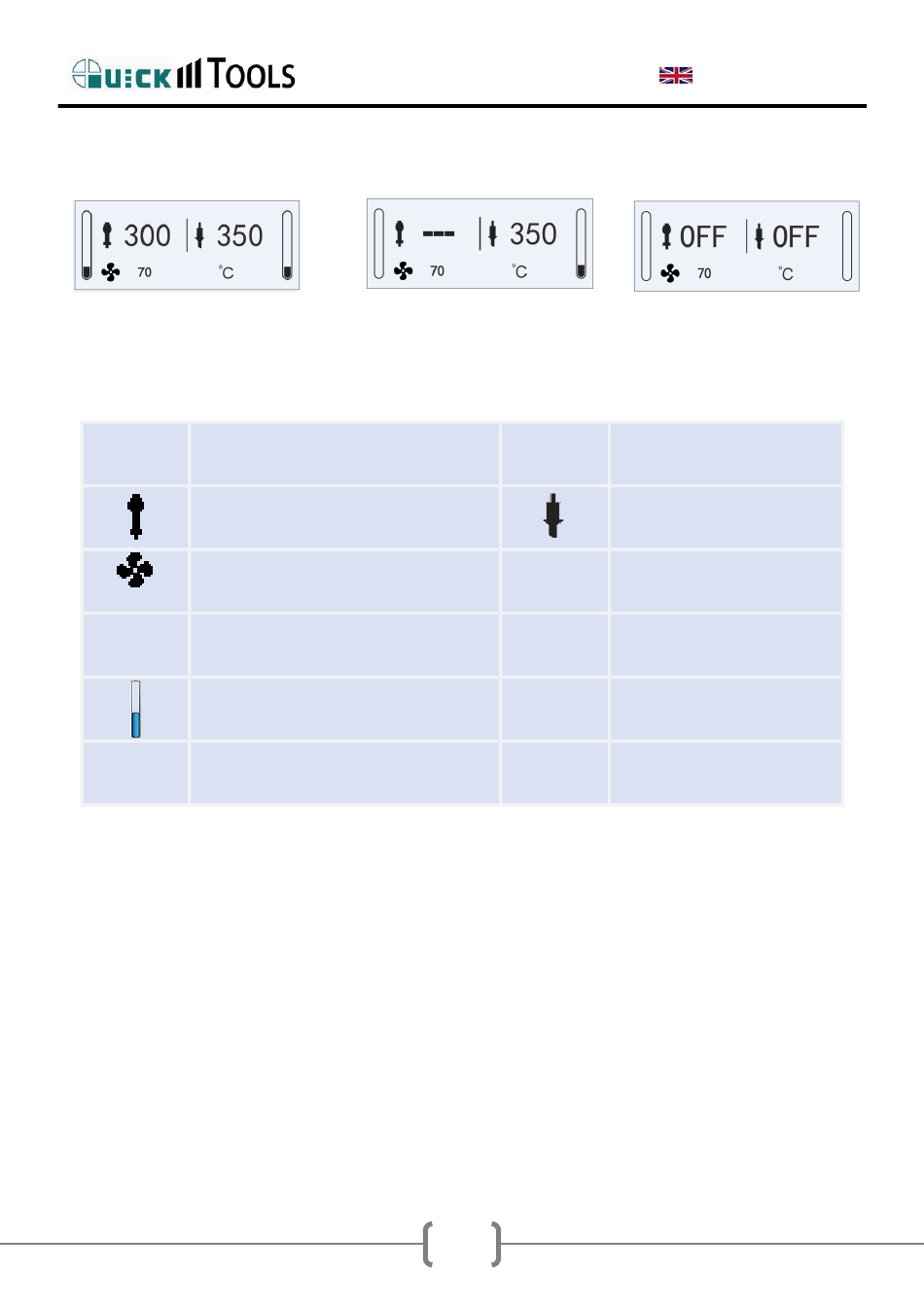

2.5.3 Main Manu
Gun and iron working
Symbol
Working state of the hot air
70
OFF

2.6. Installation and Connection

2.6.1 Soldering Iron
1. Remove the silicone protection from the soldering tip.
2. Place the soldering iron in the soldering iron holder.
3. Insert the 5-pin plug into the socket of the soldering station. Pay
attention to the marking on the plug and socket.
Gun sleep and iron working
Function
Hot air handle
Hot air volume
Power consumption
Switch OFF
Symbol
S-E
F-E
H-E
CAL Calibration display
5
USER MANUAL
Gun and iron OFF
Function
Soldering handle
Sensor fault
Fan fault
Heating fault
