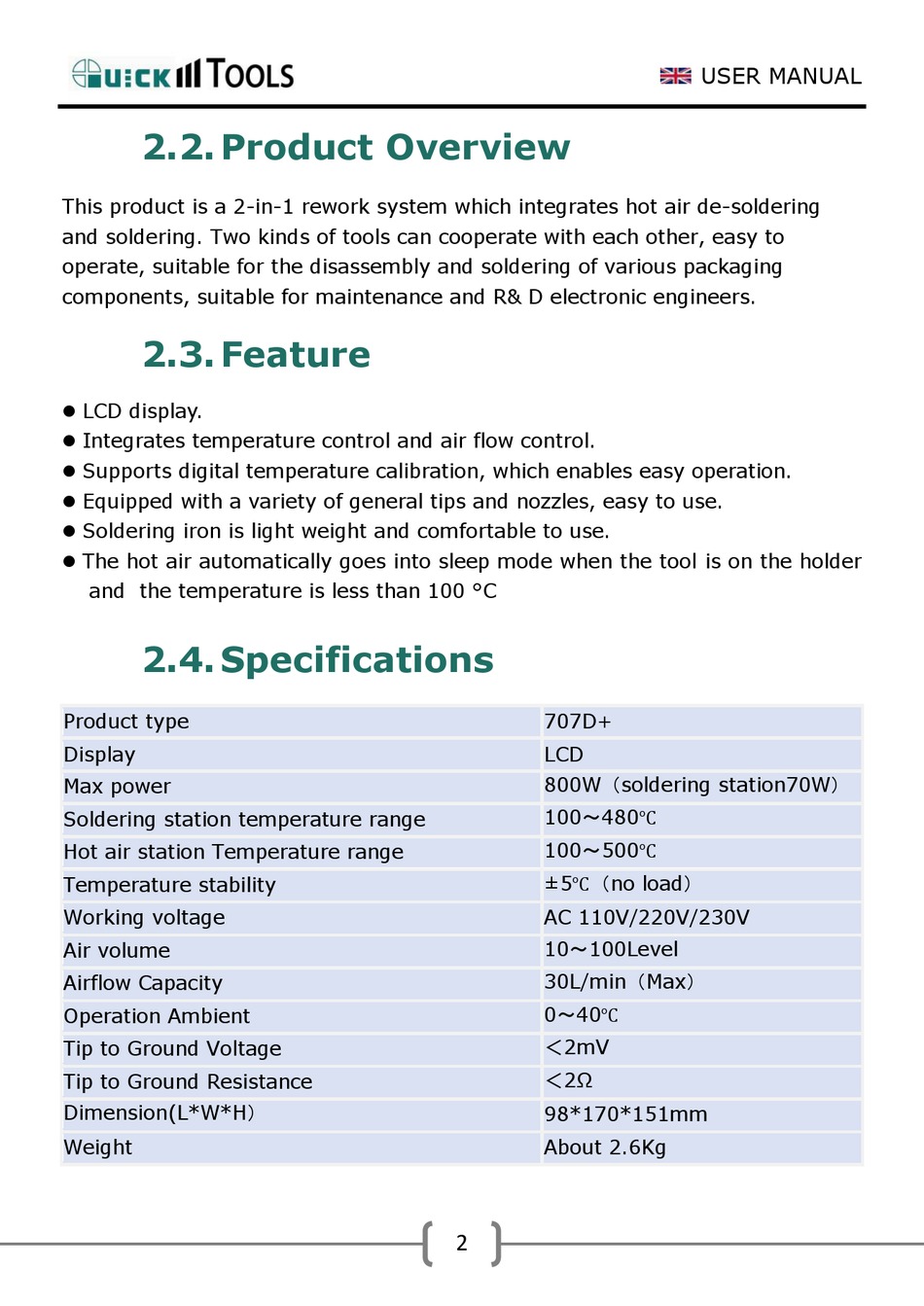

2.2. Product Overview

This product is a 2-in-1 rework system which integrates hot air de-soldering
and soldering. Two kinds of tools can cooperate with each other, easy to
operate, suitable for the disassembly and soldering of various packaging
components, suitable for maintenance and R& D electronic engineers.

2.3. Feature

 LCD display.
 Integrates temperature control and air flow control.
 Supports digital temperature calibration, which enables easy operation.
 Equipped with a variety of general tips and nozzles, easy to use.
 Soldering iron is light weight and comfortable to use.
 The hot air automatically goes into sleep mode when the tool is on the holder
and the temperature is less than 100 °C

2.4. Specifications

Product type
Display
Max power
Soldering station temperature range
Hot air station Temperature range
Temperature stability
Working voltage
Air volume
Airflow Capacity
Operation Ambient
Tip to Ground Voltage
Tip to Ground Resistance
Dimension(L*W*H）
Weight
707D+
LCD
800W（soldering station70W）
100～480℃
100～500℃
±5℃（no load）
AC 110V/220V/230V
10～100Level
30L/min（Max）
0～40℃
＜2mV
＜2Ω
98*170*151mm
About 2.6Kg
2
