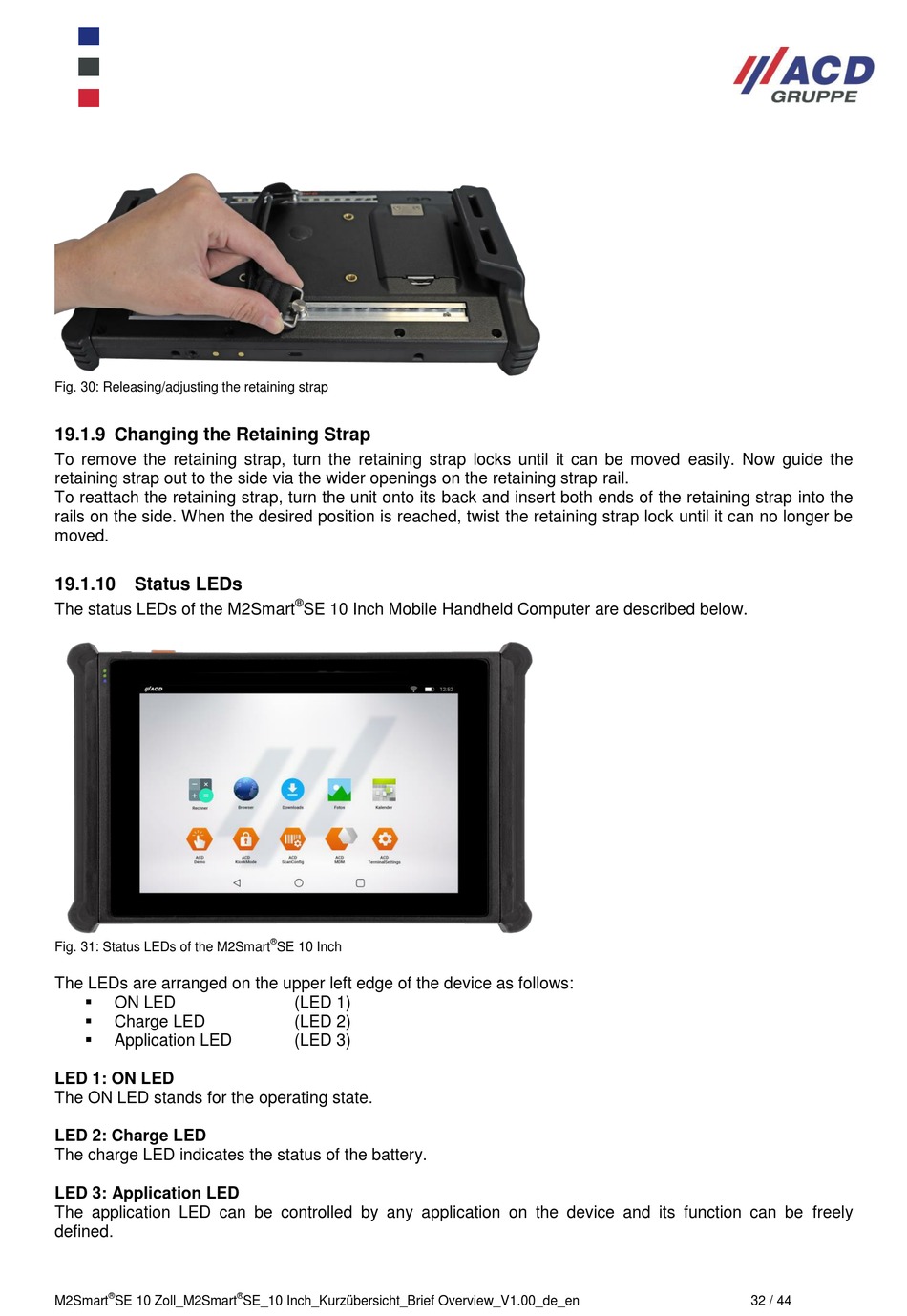

Fig. 30: Releasing/adjusting the retaining strap
19.1.9 Changing the Retaining Strap
To remove the retaining strap, turn the retaining strap locks until it can be moved easily. Now guide the
retaining strap out to the side via the wider openings on the retaining strap rail.
To reattach the retaining strap, turn the unit onto its back and insert both ends of the retaining strap into the
rails on the side. When the desired position is reached, twist the retaining strap lock until it can no longer be
moved.
19.1.10 Status LEDs
The status LEDs of the M2Smart
Fig. 31: Status LEDs of the M2Smart
The LEDs are arranged on the upper left edge of the device as follows:

ON LED

Charge LED

Application LED
LED 1: ON LED
The ON LED stands for the operating state.
LED 2: Charge LED
The charge LED indicates the status of the battery.
LED 3: Application LED
The application LED can be controlled by any application on the device and its function can be freely
defined.
®
M2Smart SE 10 Zoll_M2Smart
®
SE 10 Inch Mobile Handheld Computer are described below.
®
SE 10 Inch
(LED 1)
(LED 2)
(LED 3)
®
