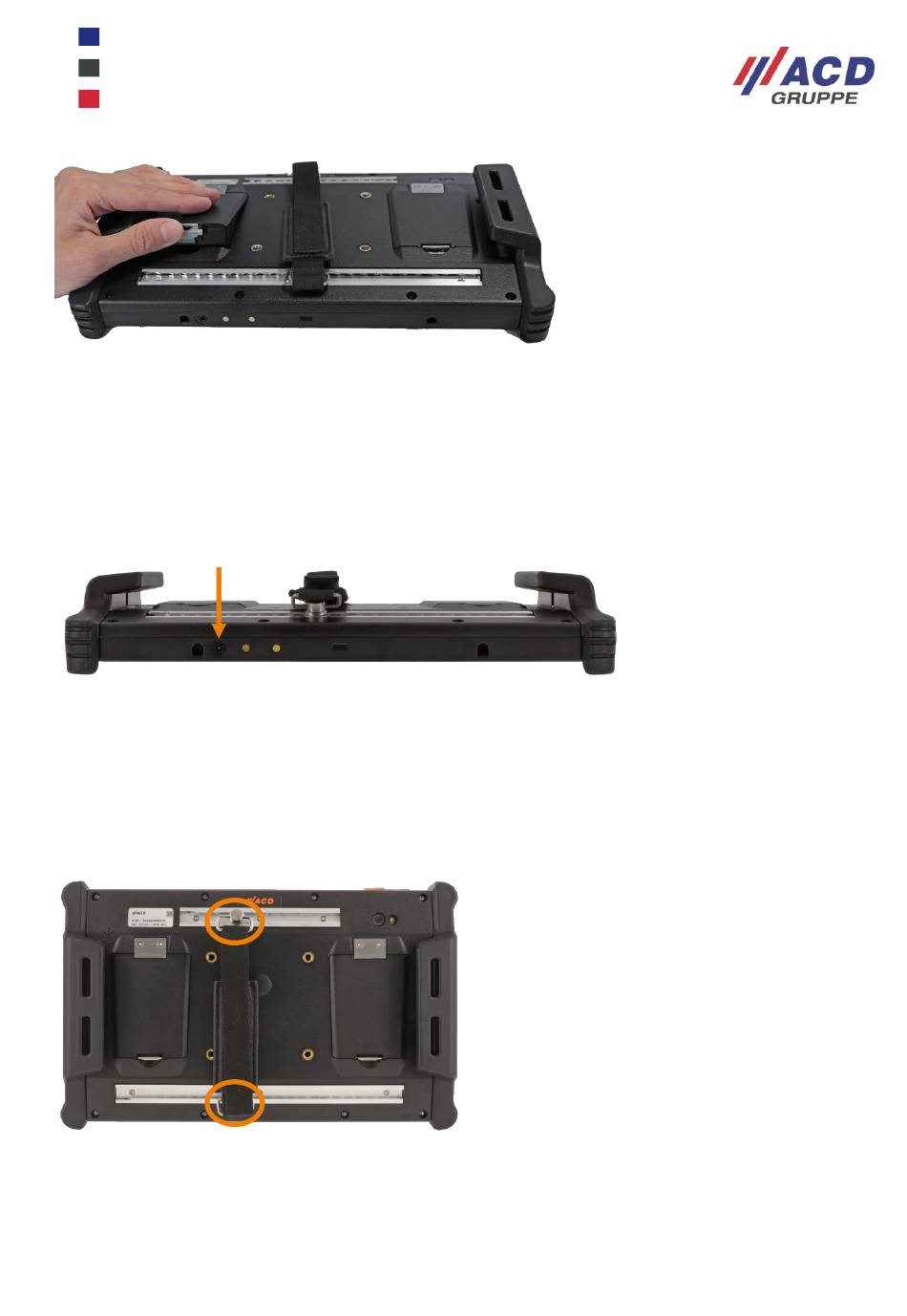

Fig. 27: Removing/inserting the battery
To insert the rechargeable battery in the device, tip it diagonally downward and place it in the rechargeable
battery compartment. Insert the rechargeable battery so that the contacts are aligned with the contacts of the
device. Then the rechargeable battery can be folded downward so that the lock snaps in.
19.1.7 Plugging in the Power Supply Unit
To charge the M2Smart
plugged into the DC socket provided for this purpose.
Fig. 28: Position of DC socket
19.1.8 Adjusting/Moving the Retaining Strap
To adjust the retaining strap, rotate the retaining strap locks until it moves easily. Now guide the retaining
strap along the retaining strap rail until the optimum position has been found.
When the desired position is reached, twist the retaining strap lock back until it can no longer be moved. The
length of the retaining strap can be adjusted as desired using the Velcro on the retaining strap.
The retaining strap can be individually adjusted by loosening the two locks at the top and bottom.
Fig. 29: Retaining strap
®
