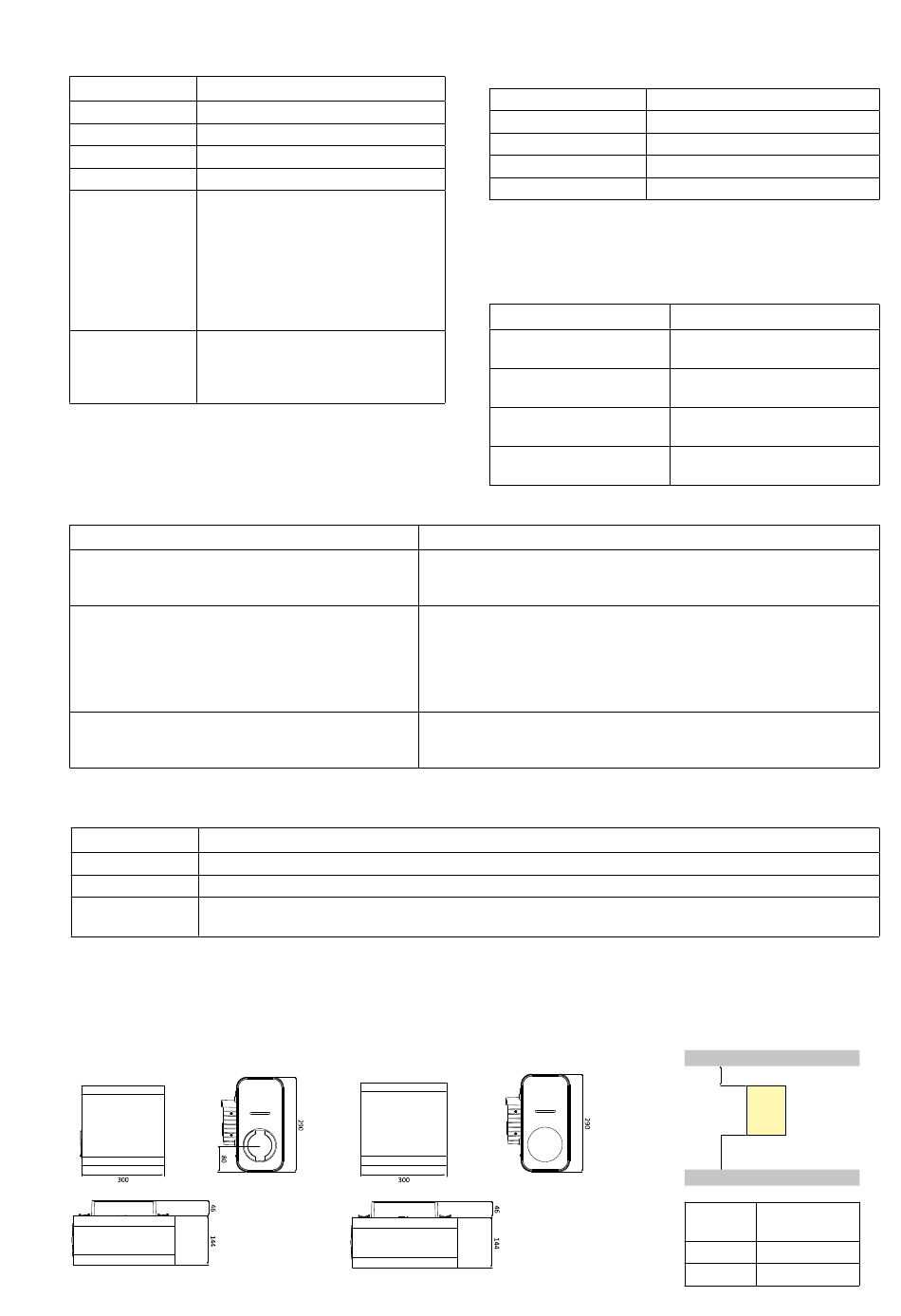

7.
Technical data
7.1
General specification
Parameter
Safety standards
Certification
IP classification
IK classification
Directives and stand-
ards
Power consumption
7.4
Compliance of protective device
7.4.1
Compliance of protective devices (IEC models)
Requirements
Dedicated advance safety device
Advance overcurrent circuit breaker (e.g., residual current circuit break-
er with overcurrent protection or overcurrent circuit breaker)
Note: The rating of the circuit breaker depends on the diameter and
length of the cable, rated values of EVSE, and environmental parame-
ters (to be determined by the electrician).
The circuit breaker serves as the main switch for EVSE.
Advance residual current circuit breaker.
7.5
Wall requirements
Parameter
Wall thickness
Wall material
Wall strength
7.6
Dimensions
7.6.1
AC input with socket, type 2
cable
24
Specification
IEC/EN 61851-1
1-phase, 3-phase
IP54
IK10
LVD 2014/35/EU, 2014/30/EU, 2015/863/EU,
2014/53/EU, PN-EN IEC 61851-1: 2019-10, EN
IEC 61851-1: 2019, PN-EN IEC 61851-21-2: 2021-
09, EN IEC 61851-21-2: 2021, PN-EN IEC 61439-
7:2020:10, EN IEC 61439-7:2020, PN-EN IEC
62196-1: 2023-07, EN IEC 62196-1: 2022, PN-EN
IEC 62196-2: 2023-07, EN IEC 62196-2: 2022, PN-
EN IEC 63000: 2019-01, EN IEC 63000: 2018
•
HOME BASIC / HOME RFID: 2.8 W
•
CLUE: 2 W
•
IOT: 4 W
•
BUSINESS: 4,5 W
Specification
Minimum 89 mm
The mounting surface must be flat and stable, e.g. a finished brick or concrete wall.
The wall must be suitable for the components listed below:
EVSE weight. Section 7.3, Torque for mounting screws. Section 7.10
7.6.2
7.2
Environmental conditions
Parameter
Storage temperature
Working temperature
Storage conditions
Working height
* range for the Business version:
Storage temperature -40 to +50°C
Operating temperature -25 to +45°C
7.3
Weight
EVSE type
AC wall mounted, type 2 with sock-
et and cable (IEC models)
AC wall mounted, type 2 with sock-
et and cable (IEC models)
AC wall mounted, type 2 with sock-
et and cable (IEC models)
AC wall mounted, type 2 with sock-
et and cable (IEC models)
Specification
Options:
•
Residual current circuit breaker (type A) with overcurrent component.
•
Residual current circuit breaker (type A) with separate overcurrent protection.
Circuit breaker ratings:
•
40A for EVSE with a rated current of 32A.
•
20A for EVSE with a rated current of 16A.
Circuit breaking characteristics: type C
At least Type A, with a rated residual current
max. 30 mA.
Note: EVSE features a DC leakage current monitoring system > 6mA.
AC input with
EV charging cable
Specification
From -40°C to +50°C *
-40°C to +50°C *
In a dry room
Below 2000 m above sea level
Weight [kg]
HOME BASIC / HOME RFID
4.6 kg
6.0 kg
CLUE
4.8 kg
6.4 kg
IoT
5.3 kg
6.9 kg
BUSINESS
5.0 kg
6.6 kg
7.6.3
Space requirements for
installation
Z1
EVSE
Z2
Parameter
Specification
[mm]
Z1
>250
Z2
800-1500
