lenergizee HOME BASIC Montageanleitung Seite 23

25 mm
GROUND WIRE GROUND WIRE
EARTH EARTH
WALL WIRE WALL WIRE

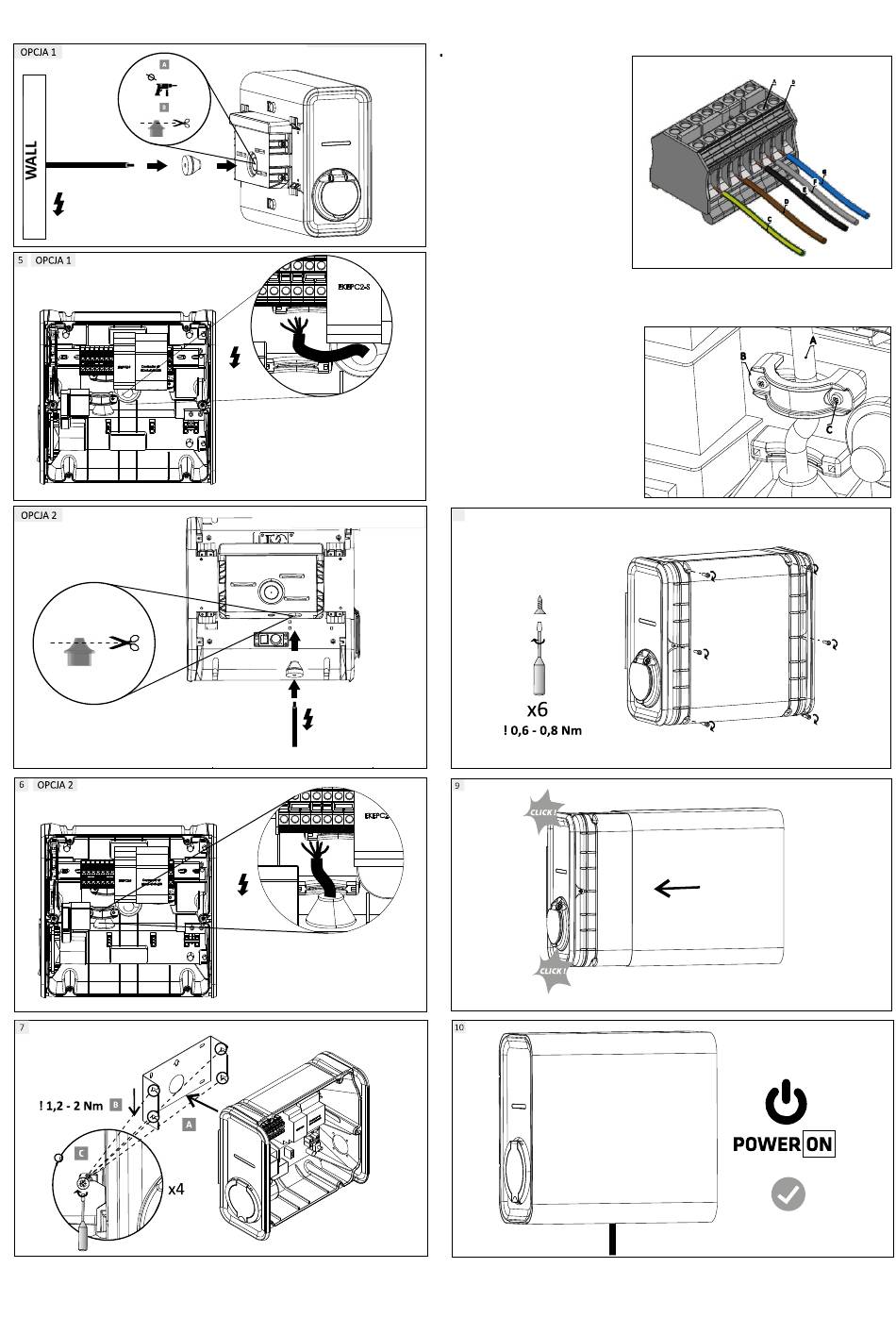

Connect the AC input wire, 3-phase
1. loosen the screws (A)
2. insert the wire connector into the
terminal block (B)
3. Connect the following wires:
• Green-yellow earthing conductor (C)
• L1 brown (D)
• L2 black (E)
• L3 grey (F)
• neutral wire (blue) (G)
4. Tighten the screws (A) to the
appropriate torque, see section
7.10.
Information about additional security
measures, see section 7.4.1
1. Secure the wires (A) with a strain
relief (B)
2. Mount two screws (C) of the strain
relief
