lenergizee HOME BASIC Montageanleitung Seite 19

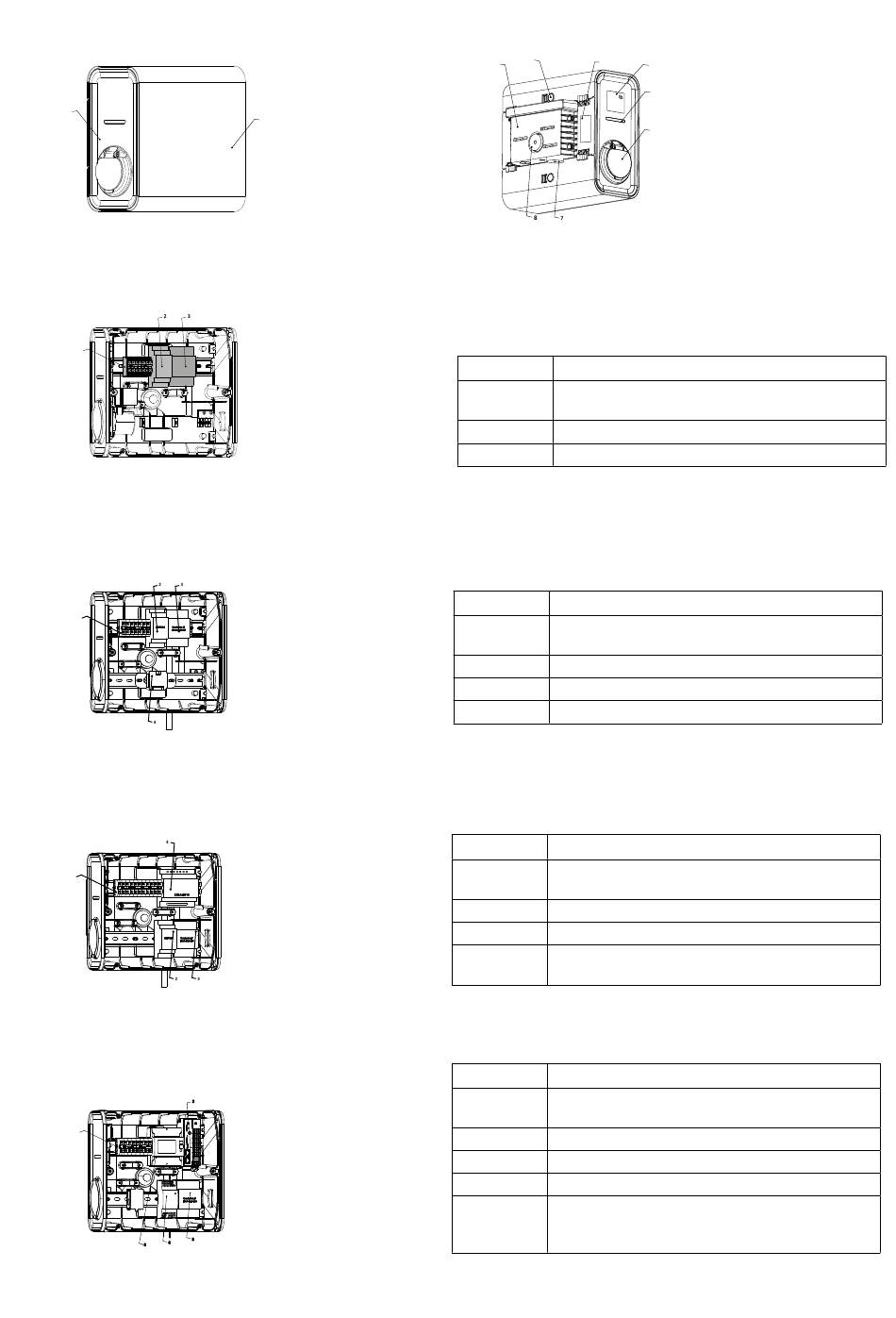

EVSE overview, from the outside
1
EVSE overview, from the inside
1
EVSE overview, from the inside, Clue version
1
1
1
EVSE overview, from the inside, Clue version
1
1
1
1 1
EVSE overview, from the inside, Business version
1 1
1 1
2
1 – Housing
2 – Housing cover
1 – Power connector
2 – Controller
3 – Contactor
1 – Power connector
2 – Controller
3 – Contactor
4 – Clue module
1 – Power connector
2 – Controller
3 – Contactor
4 – IoT module
1 – Power connector
2 – Controller
3 – Contactor
4 – DC power supply
5 – Energy consumption meter
2
3
1
Component Function
Power connector A group of terminals responsible for the distribution of electricity
to the vehicle and charger's internal modules.
Controller Vehicle charging control module.
Contactor Used to activate the vehicle's power supply.
Component Function
Power connector A group of terminals responsible for the distribution of electricity
to the vehicle and charger's internal modules.
Controller Vehicle charging control module.
Contactor Used to activate the vehicle's power supply.
Clue module Module supporting charging authorisation via the Clue app
Component Function
Power connector A group of terminals responsible for the distribution of electricity
to the vehicle and charger's internal modules.
Controller Vehicle charging control module.
Contactor Used to activate the vehicle's power supply.
IoT module Module supporting the app, WiFi connection, and energy meas-
urements
Component Function
Power connector A group of terminals responsible for the distribution of electricity
to the vehicle and charger's internal modules.
Controller Vehicle charging control module.
Contactor Used to activate the vehicle's power supply.
DC power supply Provides power to the control module.
Energy con- It measures the energy consumed during a charging session.
sumption meter
4
1 – Wall mounting
5
2 – Housing lock
3 – Product data label
6
4 – RFID reader
5 – LED panel
6 – Charging socket
7 – Opening for AC cable
8 – Opening for AC cable
(coming from the wall)
19
