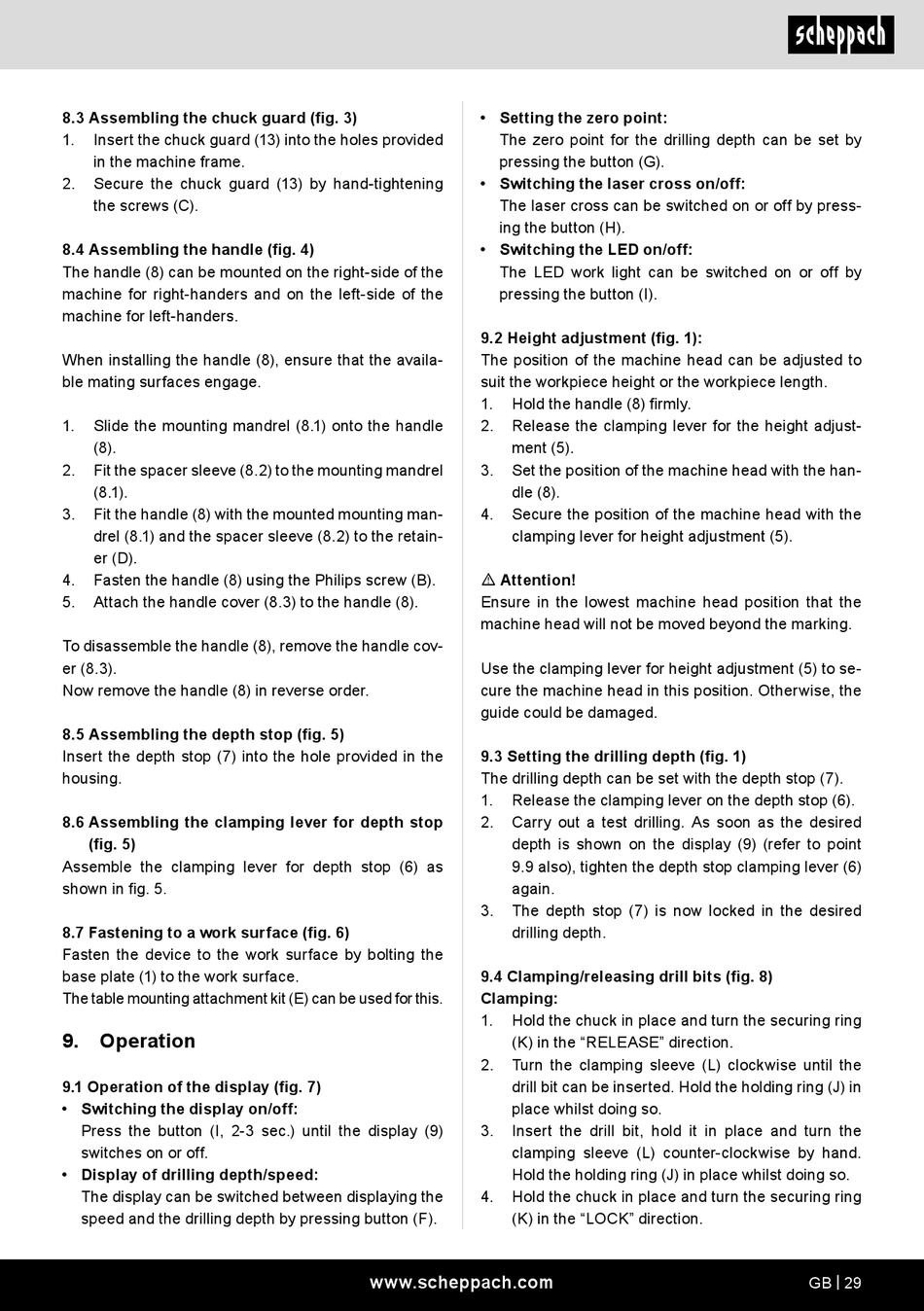

8.3 Assembling the chuck guard (fig. 3)
1. Insert the chuck guard (13) into the holes provided
in the machine frame.
2. Secure the chuck guard (13) by hand-tightening
the screws (C).
8.4 Assembling the handle (fig. 4)
The handle (8) can be mounted on the right-side of the
machine for right-handers and on the left-side of the
machine for left-handers.
When installing the handle (8), ensure that the availa-
ble mating surfaces engage.
1. Slide the mounting mandrel (8.1) onto the handle
(8).
2. Fit the spacer sleeve (8.2) to the mounting mandrel
(8.1).
3. Fit the handle (8) with the mounted mounting man-
drel (8.1) and the spacer sleeve (8.2) to the retain-
er (D).
4. Fasten the handle (8) using the Philips screw (B).
5. Attach the handle cover (8.3) to the handle (8).
To disassemble the handle (8), remove the handle cov-
er (8.3).
Now remove the handle (8) in reverse order.
8.5 Assembling the depth stop (fig. 5)
Insert the depth stop (7) into the hole provided in the
housing.
8.6 Assembling the clamping lever for depth stop
(fig. 5)
Assemble the clamping lever for depth stop (6) as
shown in fig. 5.
8.7 Fastening to a work surface (fig. 6)
Fasten the device to the work surface by bolting the
base plate (1) to the work surface.
The table mounting attachment kit (E) can be used for this.
9. Operation
9.1 Operation of the display (fig. 7)
• Switching the display on/off:
Press the button (I, 2-3 sec.) until the display (9)
switches on or off.
• Display of drilling depth/speed:
The display can be switched between displaying the
speed and the drilling depth by pressing button (F).
• Setting the zero point:
The zero point for the drilling depth can be set by
pressing the button (G).
• Switching the laser cross on/off:
The laser cross can be switched on or off by press-
ing the button (H).
• Switching the LED on/off:
The LED work light can be switched on or off by
pressing the button (I).
9.2 Height adjustment (fig. 1):
The position of the machine head can be adjusted to
suit the workpiece height or the workpiece length.
1. Hold the handle (8) firmly.
2. Release the clamping lever for the height adjust-
ment (5).
3. Set the position of the machine head with the han-
dle (8).
4. Secure the position of the machine head with the
clamping lever for height adjustment (5).
m Attention!
Ensure in the lowest machine head position that the
machine head will not be moved beyond the marking.
Use the clamping lever for height adjustment (5) to se-
cure the machine head in this position. Otherwise, the
guide could be damaged.
9.3 Setting the drilling depth (fig. 1)
The drilling depth can be set with the depth stop (7).
1. Release the clamping lever on the depth stop (6).
2. Carry out a test drilling. As soon as the desired
depth is shown on the display (9) (refer to point
9.9 also), tighten the depth stop clamping lever (6)
again.
3. The depth stop (7) is now locked in the desired
drilling depth.
9.4 Clamping/releasing drill bits (fig. 8)
Clamping:
1. Hold the chuck in place and turn the securing ring
(K) in the "RELEASE" direction.
2. Turn the clamping sleeve (L) clockwise until the
drill bit can be inserted. Hold the holding ring (J) in
place whilst doing so.
3. Insert the drill bit, hold it in place and turn the
clamping sleeve (L) counter-clockwise by hand.
Hold the holding ring (J) in place whilst doing so.
4. Hold the chuck in place and turn the securing ring
(K) in the "LOCK" direction.
