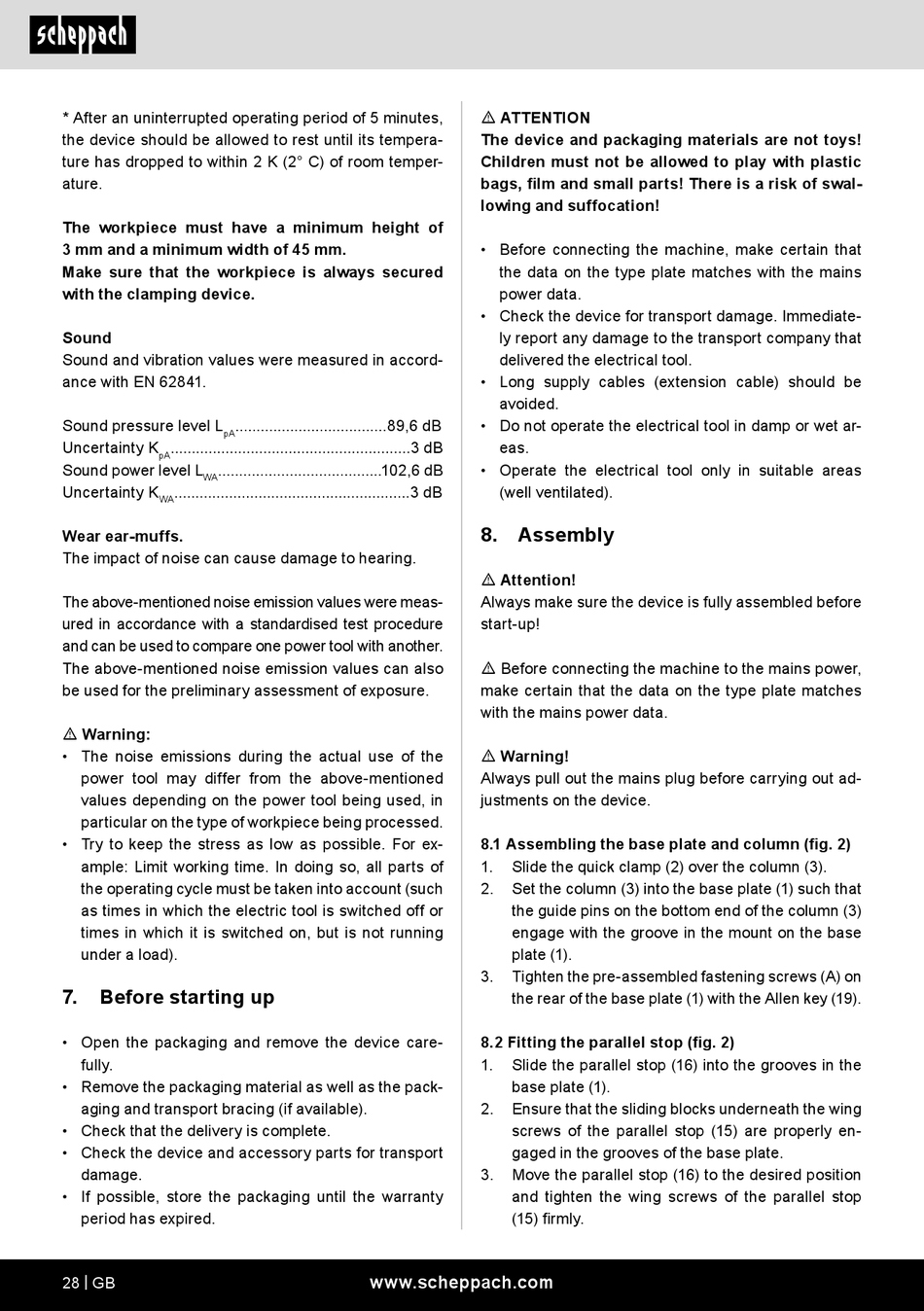

Scheppach DP60 Original Bedienungsanleitung Seite 28

* After an uninterrupted operating period of 5 minutes,
the device should be allowed to rest until its tempera-
ture has dropped to within 2 K (2° C) of room temper-
ature.
The workpiece must have a minimum height of
3 mm and a minimum width of 45 mm.
Make sure that the workpiece is always secured
with the clamping device.
Sound
Sound and vibration values were measured in accord-
ance with EN 62841.
Sound pressure level L ....................................89,6 dB
pA
Uncertainty K .........................................................3 dB
pA
Sound power level L .......................................102,6 dB
WA
Uncertainty K ........................................................3 dB
WA
Wear ear-muffs.
The impact of noise can cause damage to hearing.
The above-mentioned noise emission values were meas-
ured in accordance with a standardised test procedure
and can be used to compare one power tool with another.
The above-mentioned noise emission values can also
be used for the preliminary assessment of exposure.
m Warning:
• The noise emissions during the actual use of the
power tool may differ from the above-mentioned
values depending on the power tool being used, in
particular on the type of workpiece being processed.
• Try to keep the stress as low as possible. For ex-
ample: Limit working time. In doing so, all parts of
the operating cycle must be taken into account (such
as times in which the electric tool is switched off or
times in which it is switched on, but is not running
under a load).
7. Before starting up
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
28 | GB
m ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
• Before connecting the machine, make certain that
the data on the type plate matches with the mains
power data.
• Check the device for transport damage. Immediate-
ly report any damage to the transport company that
delivered the electrical tool.
• Long supply cables (extension cable) should be
avoided.
• Do not operate the electrical tool in damp or wet ar-
eas.
• Operate the electrical tool only in suitable areas
(well ventilated).
8. Assembly
m Attention!
Always make sure the device is fully assembled before
start-up!
m Before connecting the machine to the mains power,
make certain that the data on the type plate matches
with the mains power data.
m Warning!
Always pull out the mains plug before carrying out ad-
justments on the device.
8.1 Assembling the base plate and column (fig. 2)
1. Slide the quick clamp (2) over the column (3).
2. Set the column (3) into the base plate (1) such that
the guide pins on the bottom end of the column (3)
engage with the groove in the mount on the base
plate (1).
3. Tighten the pre-assembled fastening screws (A) on
the rear of the base plate (1) with the Allen key (19).
8.2 Fitting the parallel stop (fig. 2)
1. Slide the parallel stop (16) into the grooves in the
base plate (1).
2. Ensure that the sliding blocks underneath the wing
screws of the parallel stop (15) are properly en-
gaged in the grooves of the base plate.
3. Move the parallel stop (16) to the desired position
and tighten the wing screws of the parallel stop
(15) firmly.
